CHARTER SPECIAL - TR2000LD
CHARTER SPECIAL

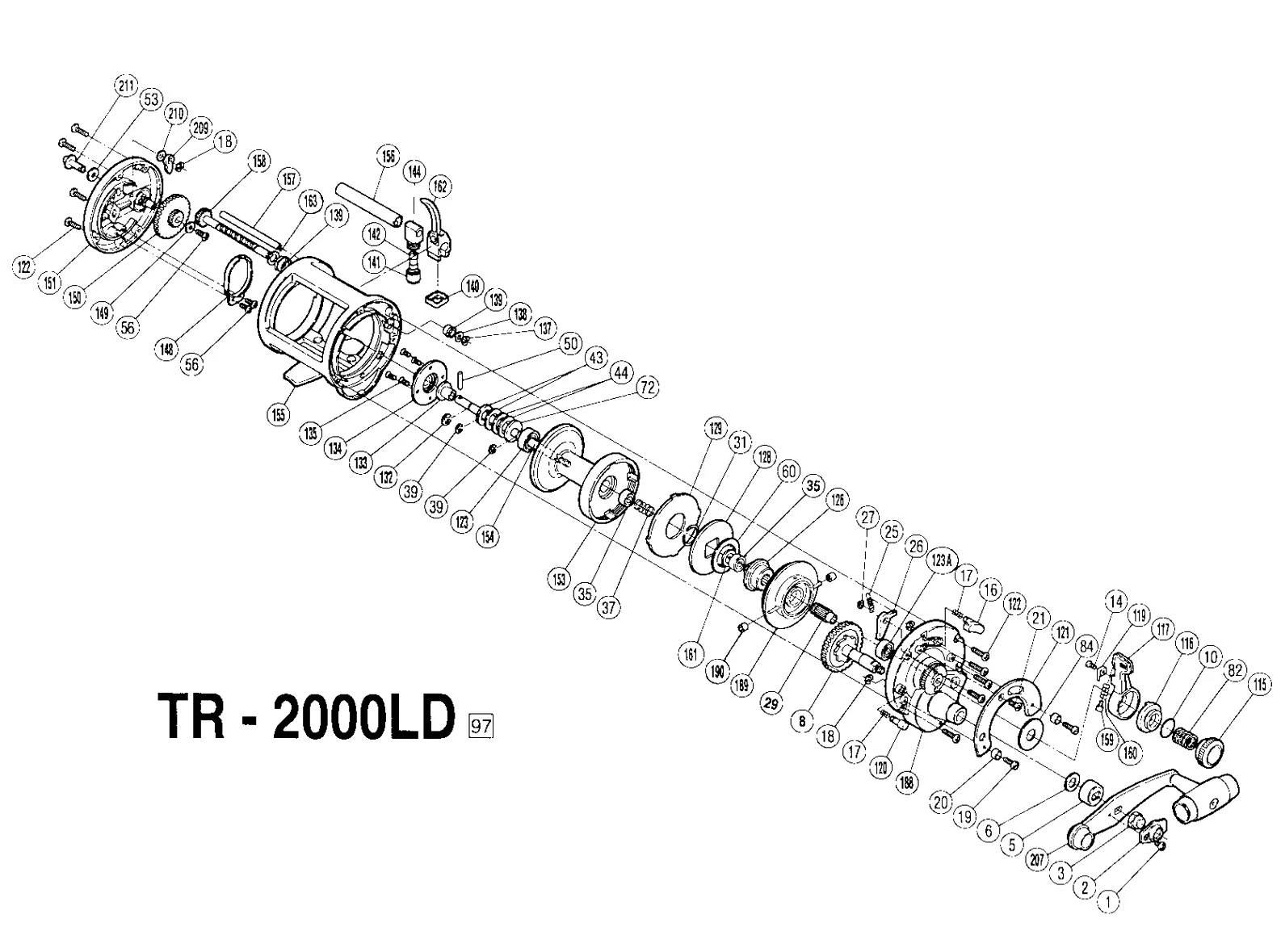

CHARTER SPECIAL - TR2000LD: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TLD0001 | HANDLE LOCK SCREW |
| TLD0002 | HANDLE LOCK |
| TLD0003 | HANDLE NUT |
| TLD0005 | GEAR SHAFT SHIELD |
| TLD0006 | GEAR SHAFT THRUST WASHER |
| TLD0008 | MAIN GEAR |
| TLD0010 TGT0438 | "BODY ""O"" SEAL" |
| TLD0014 TGT0539 | CLICK SPRING SCREW |
| TLD0016 TGT1141 | STRIKE STOP |
| TLD0017 TT 0163 | PRESSURE SPRING |
| TLD0018 | |
| TLD0019 TT 0158 | QUADRANT ANCHOR BOLT |
| TLD0020 TGT1134 | BOLT SHIELD |
| TLD0021 TT 0161 | QUADRANT SCREW |
| TLD0025 | DOG SPRING |
| TLD0026 | DOG |
| TLD0027 BNT1227 | DOG SPRING RETAINER |
| TLD0029 | PINION GEAR |
| TLD0031 | SEAL LOCK |
| TLD0037 | |
| TLD0039 BNT0675 | """C"" LOCK" |
| TLD0043 | PRE-LOAD WASHER (B) |
| TLD0044 TGT0021 | PRE-LOAD SPRING B |
| TLD0050 | CROSS PIN B |
| TLD0053 | |
| TLD0056 TT 0187 | CLICK SPRING SCREW |
| TLD0060 | PRE-LOAD SPRING A |
| TLD0072 | |
| TLD0082 | DIAL SPRING |
| TLD0084 | LEVER THRUST RING |
| TLD0115 | PRE-PROGRAM DIAL |
| TLD0116 | LEVER SHAFT BODY |
| TLD0117 | DRAG CONTROLLEVER |
| TLD0119 | LEVER CLICK SPRING |
| TLD0120 | FREE SPOOL DETENT |
| TLD0121 | LEVER QUADRANT |
| TLD0122 | SIDE PLATE BOLT |
| TLD0126 | PINION GUARD |
| Part Number | Part Description |
| TLD0001 | HANDLE LOCK SCREW |
| TLD0002 | HANDLE LOCK |
| TLD0003 | HANDLE NUT |
| TLD0005 | GEAR SHAFT SHIELD |
| TLD0006 | GEAR SHAFT THRUST WASHER |
| TLD0008 | MAIN GEAR |
| TLD0010 TGT0438 | "BODY ""O"" SEAL" |
| TLD0014 TGT0539 | CLICK SPRING SCREW |
| TLD0016 TGT1141 | STRIKE STOP |
| TLD0017 TT 0163 | PRESSURE SPRING |
| TLD0018 | |
| TLD0019 TT 0158 | QUADRANT ANCHOR BOLT |
| TLD0020 TGT1134 | BOLT SHIELD |
| TLD0021 TT 0161 | QUADRANT SCREW |
| TLD0025 | DOG SPRING |
| TLD0026 | DOG |
| TLD0027 BNT1227 | DOG SPRING RETAINER |
| TLD0029 | PINION GEAR |
| TLD0031 | SEAL LOCK |
| TLD0037 | |
| TLD0039 BNT0675 | """C"" LOCK" |
| TLD0043 | PRE-LOAD WASHER (B) |
| TLD0044 TGT0021 | PRE-LOAD SPRING B |
| TLD0050 | CROSS PIN B |
| TLD0053 | |
| TLD0056 TT 0187 | CLICK SPRING SCREW |
| TLD0060 | PRE-LOAD SPRING A |
| TLD0072 | |
| TLD0082 | DIAL SPRING |
| TLD0084 | LEVER THRUST RING |
| TLD0115 | PRE-PROGRAM DIAL |
| TLD0116 | LEVER SHAFT BODY |
| TLD0117 | DRAG CONTROLLEVER |
| TLD0119 | LEVER CLICK SPRING |
| TLD0120 | FREE SPOOL DETENT |
| TLD0121 | LEVER QUADRANT |
| TLD0122 | SIDE PLATE BOLT |
| TLD0126 | PINION GUARD |
