MOOCHER PLUS - MCR4000GTPA

MOOCHER PLUS - MCR4000GTPA

MOOCHER PLUS

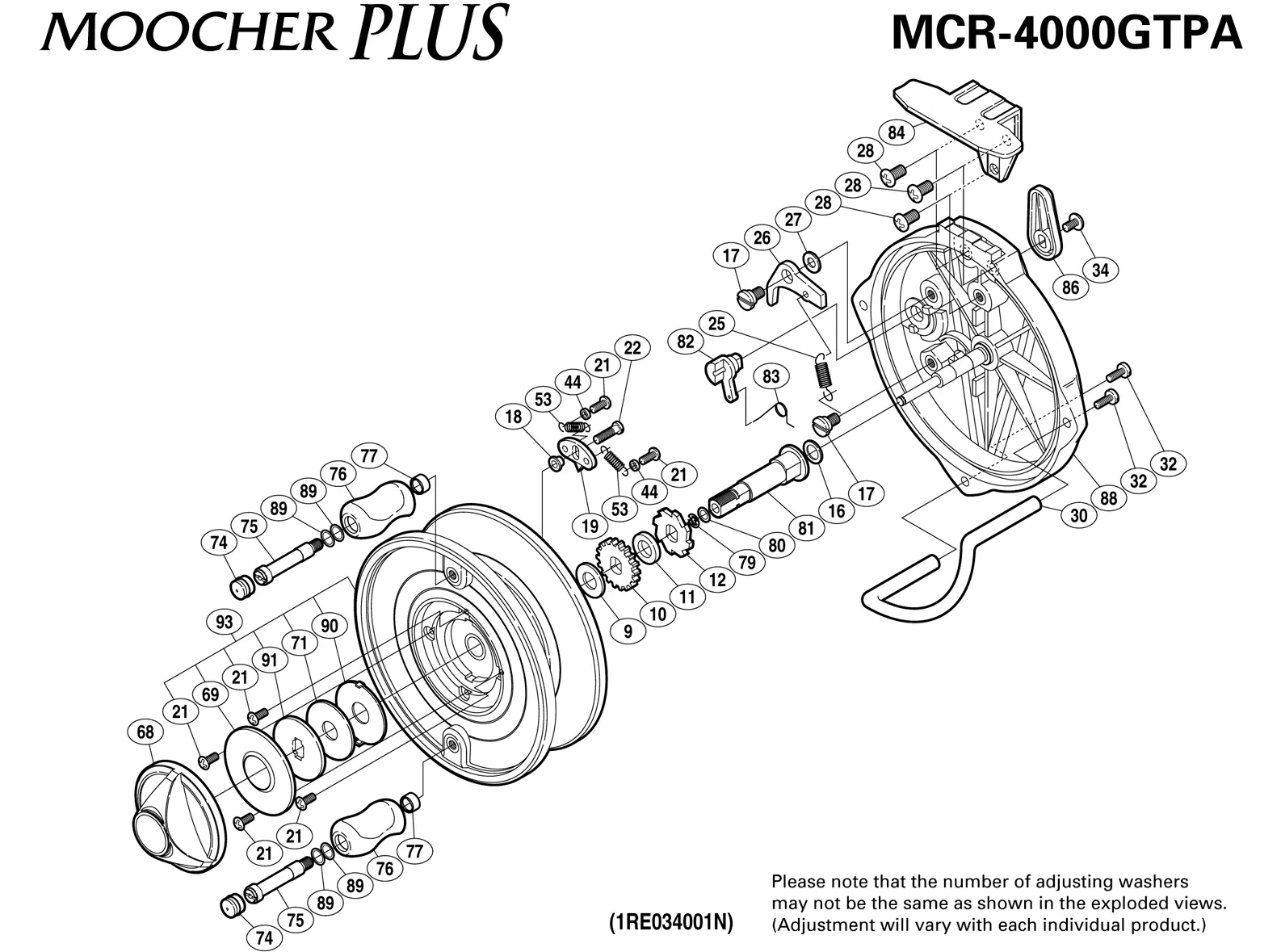

MOOCHER PLUS - MCR4000GTPA: schema di montaggio (esploso) e parti di ricambio.

Part NumberPart Description
MCR0009SPOOL WASHER
MCR0010CLICK GEAR
MCR0011SPACER
MCR0012ANTI-REVERSE RATCHET
MCR0016MAIN SHAFT WASHER
MCR0017ANTI-REVERSE PAWL SCRW
MCR0018CLICK PAWL BUSHING
MCR0019CLICK PAWL
MCR0021 TT 0187CLICK SPRING SCREW
MCR0022CLICK PAWL SCREW
MCR0025ANTI-REVERSE PAWL SPRG
MCR0026ANTI-REVERSE PAWL
MCR0027 RD 0133ANTI-REVERSE PWL SPAC.
MCR0028STAND SCREW
MCR0030LINE GUARD
MCR0032LINE GUARD SCREW
MCR0034
MCR0044CLICK SPRING SCREW COLLAR
MCR0053CLICK SPRING
Part NumberPart Description
MCR0009SPOOL WASHER
MCR0010CLICK GEAR
MCR0011SPACER
MCR0012ANTI-REVERSE RATCHET
MCR0016MAIN SHAFT WASHER
MCR0017ANTI-REVERSE PAWL SCRW
MCR0018CLICK PAWL BUSHING
MCR0019CLICK PAWL
MCR0021 TT 0187CLICK SPRING SCREW
MCR0022CLICK PAWL SCREW
MCR0025ANTI-REVERSE PAWL SPRG
MCR0026ANTI-REVERSE PAWL
MCR0027 RD 0133ANTI-REVERSE PWL SPAC.
MCR0028STAND SCREW
MCR0030LINE GUARD
MCR0032LINE GUARD SCREW
MCR0034
MCR0044CLICK SPRING SCREW COLLAR
MCR0053CLICK SPRING
