TALICA BFC - TAC20BFC
TALICA BFC

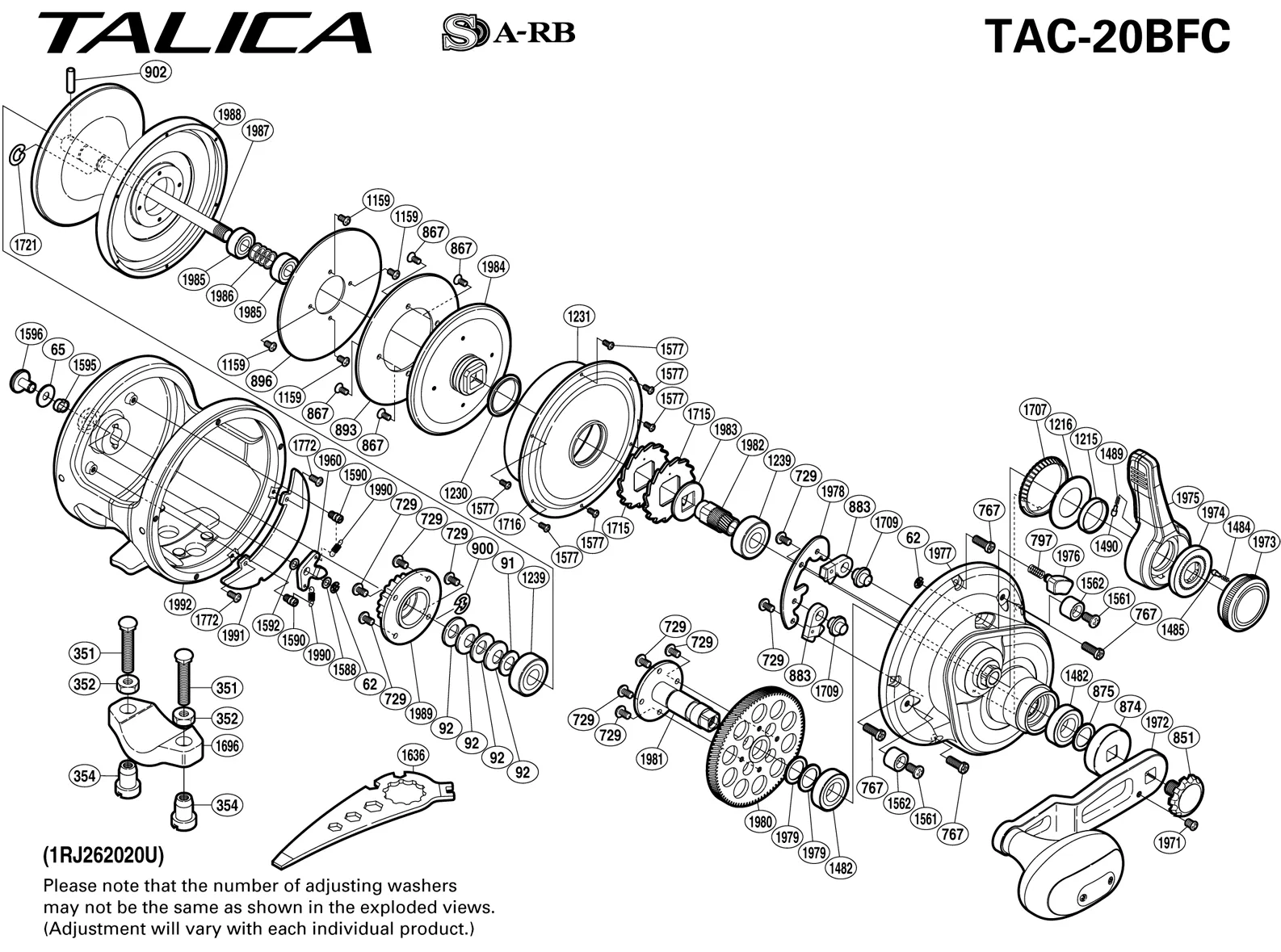

TALICA BFC - TAC20BFC: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0091 | BEARING THRUST WASHER |
| TGT0092 | DRAG SPRING WASHER |
| TGT0351 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0352 | ROD CLAMP NUT (B) (ACCESSORY) |
| TGT0354 | ROD CLAMP NUT (A) (ACCESSORY) |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0767 | LEFT SIDE PLATE SCREW |
| TGT0797 TT 0163 | PRESSURE SPRING |
| TGT0851 | HANDLE BOLT |
| TGT0867 | SCREW |
| TGT0874 | GEAR SHAFT SHIELD |
| TGT0875 | WASHER |
| TGT0883 | ANTI-REVERSE PAWL |
| TGT0893 | DRAG PLATE |
| TGT0896 | DRAG WASHER |
| TGT0900 | E LOCK |
| TGT0902 | CROSS PIN |
| TGT1159 | SCREW |
| TGT1215 | LEVER THRUST RING |
| TGT1216 | WASHER |
| TGT1230 | WATERPROOF RING |
| TGT1231 | O RING |
| TGT1239 | BALL BEARING MADE IN JAPAN |
| TGT1482 | BALL BEARING MADE IN JAPAN |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1561 | SCREW |
| TGT1562 | BOLT SHIELD |
| TGT1577 | SCREW |
| TGT1588 | SPACER |
| Part Number | Part Description |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0091 | BEARING THRUST WASHER |
| TGT0092 | DRAG SPRING WASHER |
| TGT0351 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0352 | ROD CLAMP NUT (B) (ACCESSORY) |
| TGT0354 | ROD CLAMP NUT (A) (ACCESSORY) |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0767 | LEFT SIDE PLATE SCREW |
| TGT0797 TT 0163 | PRESSURE SPRING |
| TGT0851 | HANDLE BOLT |
| TGT0867 | SCREW |
| TGT0874 | GEAR SHAFT SHIELD |
| TGT0875 | WASHER |
| TGT0883 | ANTI-REVERSE PAWL |
| TGT0893 | DRAG PLATE |
| TGT0896 | DRAG WASHER |
| TGT0900 | E LOCK |
| TGT0902 | CROSS PIN |
| TGT1159 | SCREW |
| TGT1215 | LEVER THRUST RING |
| TGT1216 | WASHER |
| TGT1230 | WATERPROOF RING |
| TGT1231 | O RING |
| TGT1239 | BALL BEARING MADE IN JAPAN |
| TGT1482 | BALL BEARING MADE IN JAPAN |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1561 | SCREW |
| TGT1562 | BOLT SHIELD |
| TGT1577 | SCREW |
| TGT1588 | SPACER |
