TALICA - TAC10II
TALICA

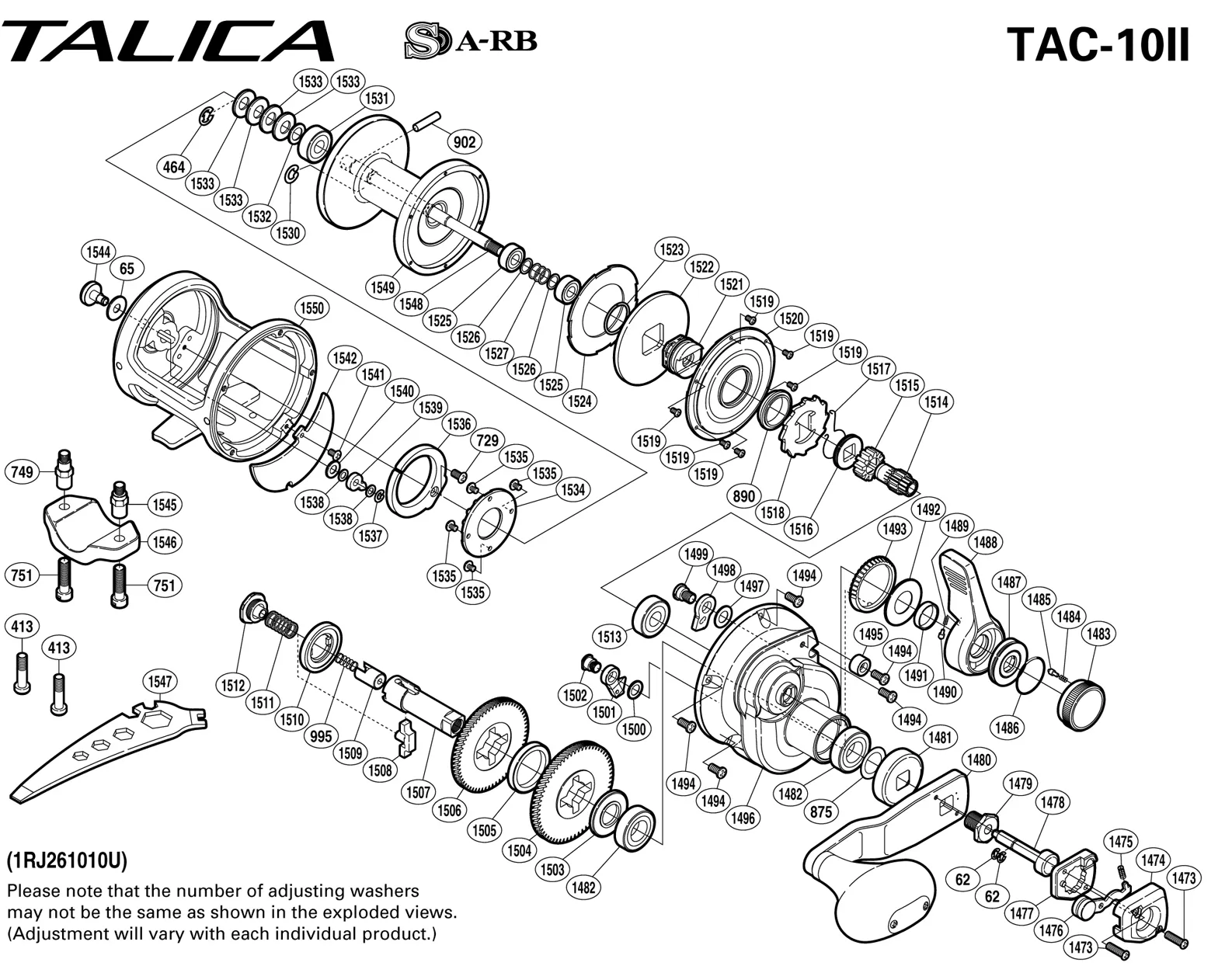

TALICA - TAC10II: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0413 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0464 | CLICK GEAR RETAINER |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0749 | ROD CLAMP NUT (ACCESSORY) |
| TGT0751 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0875 | WASHER |
| TGT0890 | WATERPROOF RING |
| TGT0902 | CROSS PIN |
| TGT0995 | DRIVE SHAFT SPRING B |
| TGT0996 | DRIVE SHAFT SPRING |
| TGT1473 | SCREW |
| TGT1474 | PUSH BUTTON SHIELD |
| TGT1475 | SLIDE PLATE SPRING |
| TGT1476 | SLIDE PLATE |
| TGT1477 | HANDLE BOLT PLATE |
| TGT1478 | PUSH LOW BUTTON SHAFT |
| TGT1479 | HANDLE BOLT |
| TGT1480 | HANDLE |
| TGT1481 | DRAG SHAFT SHIELD |
| TGT1482 | BALL BEARING MADE IN JAPAN |
| TGT1483 | PRE-PROGRAM DIAL |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1486 | O RING |
| TGT1487 | LEVER SHAFT BODY |
| TGT1488 | DRAG CONTROL LEVER |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1491 | LEVER THRUST RING |
| TGT1492 | WASHER |
| TGT1493 | LEVER CLICK GEAR |
| TGT1494 | SCREW |
| TGT1495 | BOLT SHIELD |
| TGT1496 | RIGHT SIDE PLATE |
| TGT1497 | WASHER |
| TGT1498 | ANTI-REVERSE PAWL |
| TGT1499 | ANTI-REVERSE PAWL PIN |
| TGT1500 | WASHER |
| TGT1501 | ANTI-REVERSE PAWL |
| TGT1502 | ANTI-REVERSE PAWL PIN |
| TGT1503 | DRIVE GEAR WASHER |
| Part Number | Part Description |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0413 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0464 | CLICK GEAR RETAINER |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0749 | ROD CLAMP NUT (ACCESSORY) |
| TGT0751 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0875 | WASHER |
| TGT0890 | WATERPROOF RING |
| TGT0902 | CROSS PIN |
| TGT0995 | DRIVE SHAFT SPRING B |
| TGT0996 | DRIVE SHAFT SPRING |
| TGT1473 | SCREW |
| TGT1474 | PUSH BUTTON SHIELD |
| TGT1475 | SLIDE PLATE SPRING |
| TGT1476 | SLIDE PLATE |
| TGT1477 | HANDLE BOLT PLATE |
| TGT1478 | PUSH LOW BUTTON SHAFT |
| TGT1479 | HANDLE BOLT |
| TGT1480 | HANDLE |
| TGT1481 | DRAG SHAFT SHIELD |
| TGT1482 | BALL BEARING MADE IN JAPAN |
| TGT1483 | PRE-PROGRAM DIAL |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1486 | O RING |
| TGT1487 | LEVER SHAFT BODY |
| TGT1488 | DRAG CONTROL LEVER |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1491 | LEVER THRUST RING |
| TGT1492 | WASHER |
| TGT1493 | LEVER CLICK GEAR |
| TGT1494 | SCREW |
| TGT1495 | BOLT SHIELD |
| TGT1496 | RIGHT SIDE PLATE |
| TGT1497 | WASHER |
| TGT1498 | ANTI-REVERSE PAWL |
| TGT1499 | ANTI-REVERSE PAWL PIN |
| TGT1500 | WASHER |
| TGT1501 | ANTI-REVERSE PAWL |
| TGT1502 | ANTI-REVERSE PAWL PIN |
| TGT1503 | DRIVE GEAR WASHER |
