TALICA - TAC12II
TALICA

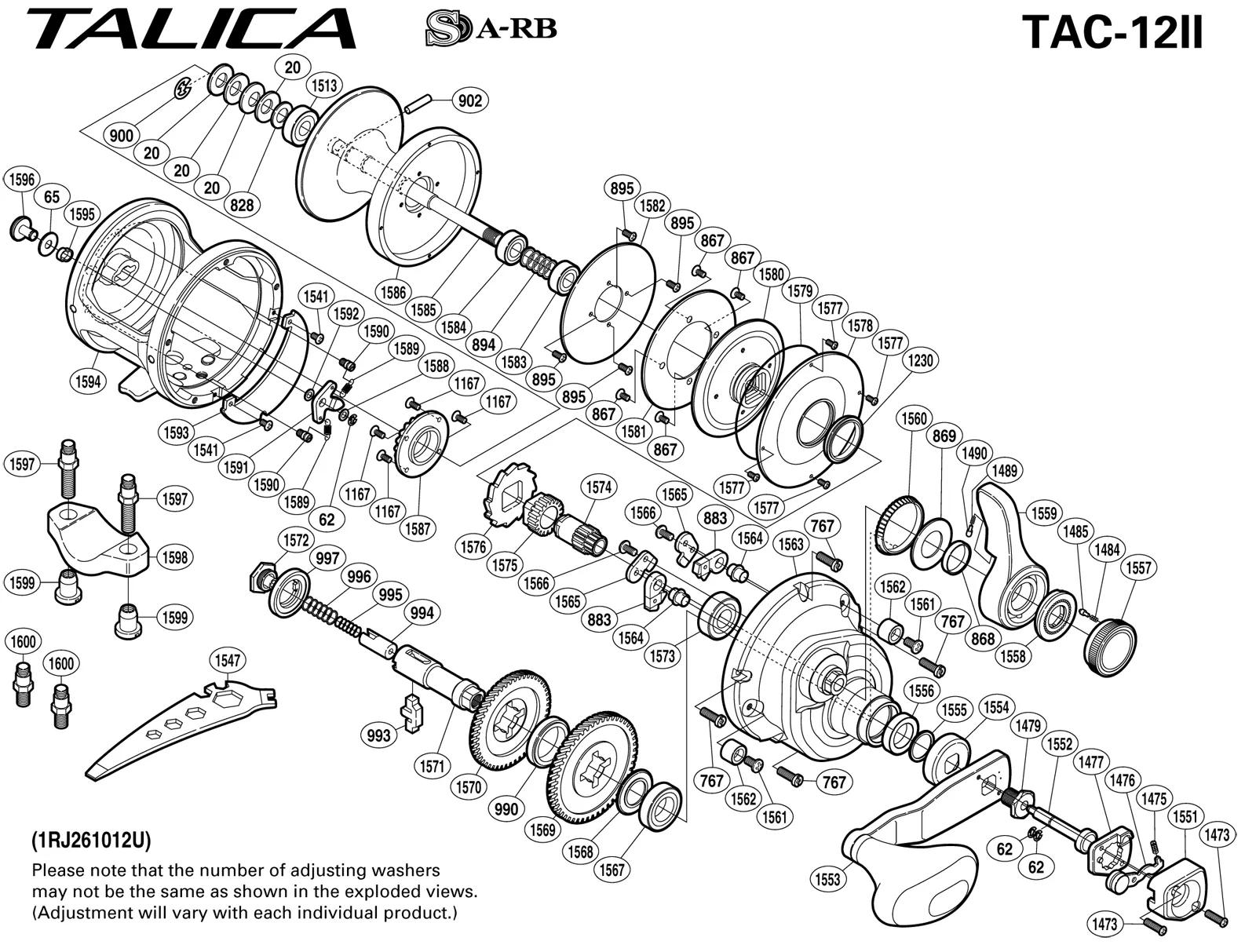

TALICA - TAC12II: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0767 | LEFT SIDE PLATE SCREW |
| TGT0828 | BEARING THRUST WASHER |
| TGT0867 | SCREW |
| TGT0868 | LEVER THRUST RING |
| TGT0869 | WASHER |
| TGT0883 | ANTI-REVERSE PAWL |
| TGT0894 | PRESSURE RELEASE SPRING |
| TGT0895 | SCREW |
| TGT0900 | E LOCK |
| TGT0902 | CROSS PIN |
| TGT0990 | FRICTION WASHER |
| TGT0993 | GEAR SELECT CROSS BAR |
| TGT0994 | CROSS BAR STOP |
| TGT0995 | DRIVE SHAFT SPRING B |
| TGT0996 | DRIVE SHAFT SPRING |
| TGT0997 | FRICTION WASHER |
| TGT1167 | SCREW |
| TGT1230 | WATERPROOF RING |
| TGT1473 | SCREW |
| TGT1475 | SLIDE PLATE SPRING |
| TGT1476 | SLIDE PLATE |
| TGT1477 | HANDLE BOLT PLATE |
| TGT1479 | HANDLE BOLT |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1513 | BALL BEARING |
| TGT1541 | SCREW |
| TGT1547 | WRENCH (ACCESSORY) |
| TGT1551 | PUSH BUTTON SHIELD |
| TGT1552 | PUSH LOW BUTTON SHAFT |
| TGT1553 | HANDLE |
| TGT1554 | DRIVE SHAFT SHIELD |
| TGT1555 | WASHER |
| TGT1556 | DRIVE GEAR BUSHING |
| TGT1557 | PRE-PROGRAM DIAL |
| TGT1558 | LEVER SHAFT BODY |
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0767 | LEFT SIDE PLATE SCREW |
| TGT0828 | BEARING THRUST WASHER |
| TGT0867 | SCREW |
| TGT0868 | LEVER THRUST RING |
| TGT0869 | WASHER |
| TGT0883 | ANTI-REVERSE PAWL |
| TGT0894 | PRESSURE RELEASE SPRING |
| TGT0895 | SCREW |
| TGT0900 | E LOCK |
| TGT0902 | CROSS PIN |
| TGT0990 | FRICTION WASHER |
| TGT0993 | GEAR SELECT CROSS BAR |
| TGT0994 | CROSS BAR STOP |
| TGT0995 | DRIVE SHAFT SPRING B |
| TGT0996 | DRIVE SHAFT SPRING |
| TGT0997 | FRICTION WASHER |
| TGT1167 | SCREW |
| TGT1230 | WATERPROOF RING |
| TGT1473 | SCREW |
| TGT1475 | SLIDE PLATE SPRING |
| TGT1476 | SLIDE PLATE |
| TGT1477 | HANDLE BOLT PLATE |
| TGT1479 | HANDLE BOLT |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1513 | BALL BEARING |
| TGT1541 | SCREW |
| TGT1547 | WRENCH (ACCESSORY) |
| TGT1551 | PUSH BUTTON SHIELD |
| TGT1552 | PUSH LOW BUTTON SHAFT |
| TGT1553 | HANDLE |
| TGT1554 | DRIVE SHAFT SHIELD |
| TGT1555 | WASHER |
| TGT1556 | DRIVE GEAR BUSHING |
| TGT1557 | PRE-PROGRAM DIAL |
| TGT1558 | LEVER SHAFT BODY |
