TALICA - TAC16
TALICA

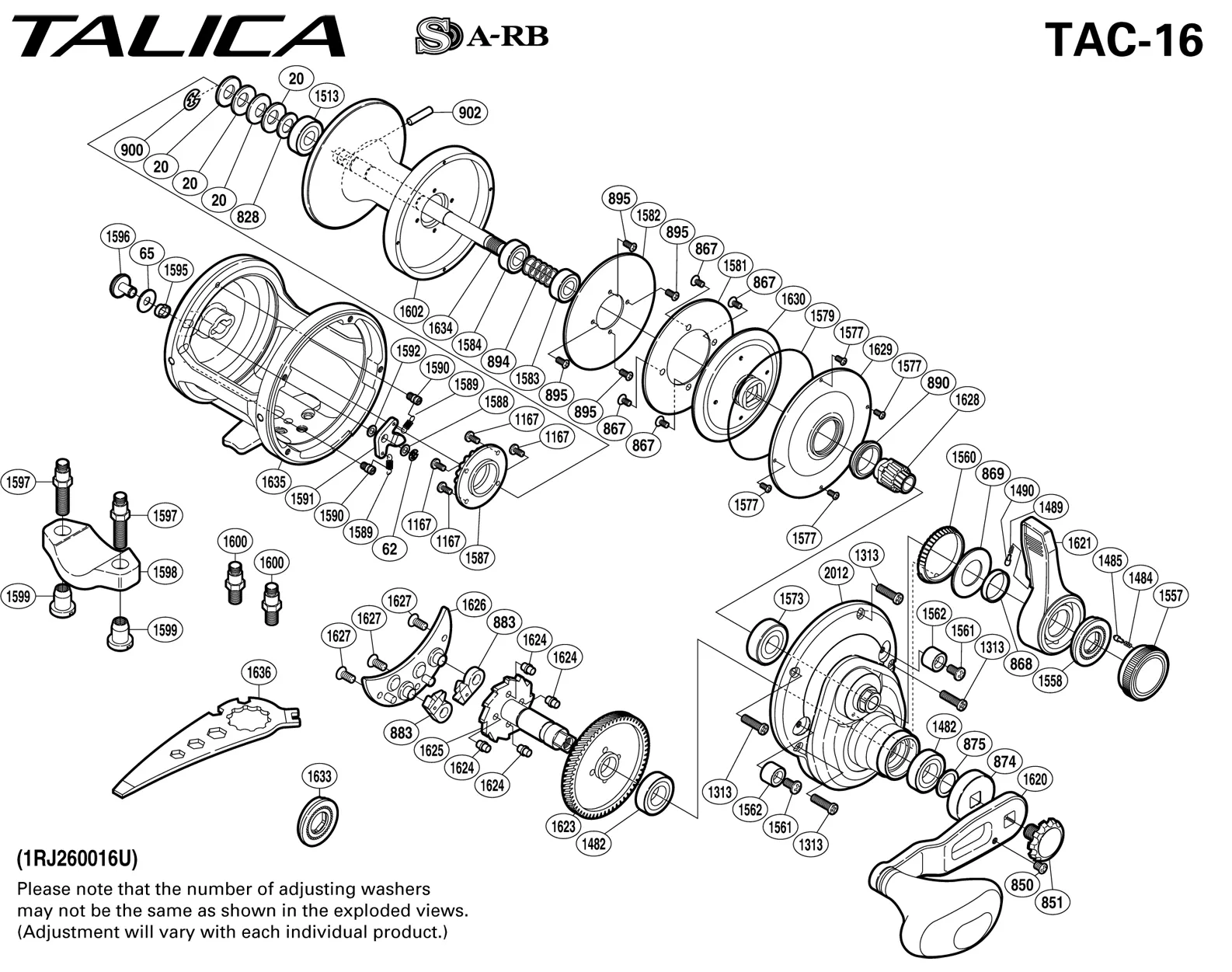

TALICA - TAC16: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0828 | BEARING THRUST WASHER |
| TGT0850 | SCREW |
| TGT0851 | HANDLE BOLT |
| TGT0867 | SCREW |
| TGT0868 | LEVER THRUST RING |
| TGT0869 | WASHER |
| TGT0874 | GEAR SHAFT SHIELD |
| TGT0875 | WASHER |
| TGT0883 | ANTI-REVERSE PAWL |
| TGT0890 | WATERPROOF RING |
| TGT0894 | PRESSURE RELEASE SPRING |
| TGT0895 | SCREW |
| TGT0900 | E LOCK |
| TGT0902 | CROSS PIN |
| TGT1167 | SCREW |
| TGT1313 | SCREW |
| TGT1482 | BALL BEARING MADE IN JAPAN |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1513 | BALL BEARING |
| TGT1557 | PRE-PROGRAM DIAL |
| TGT1558 | LEVER SHAFT BODY |
| TGT1560 | LEVER CLICK GEAR |
| TGT1561 | SCREW |
| TGT1562 | BOLT SHIELD |
| TGT1573 | BALL BEARING |
| TGT1577 | SCREW |
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0828 | BEARING THRUST WASHER |
| TGT0850 | SCREW |
| TGT0851 | HANDLE BOLT |
| TGT0867 | SCREW |
| TGT0868 | LEVER THRUST RING |
| TGT0869 | WASHER |
| TGT0874 | GEAR SHAFT SHIELD |
| TGT0875 | WASHER |
| TGT0883 | ANTI-REVERSE PAWL |
| TGT0890 | WATERPROOF RING |
| TGT0894 | PRESSURE RELEASE SPRING |
| TGT0895 | SCREW |
| TGT0900 | E LOCK |
| TGT0902 | CROSS PIN |
| TGT1167 | SCREW |
| TGT1313 | SCREW |
| TGT1482 | BALL BEARING MADE IN JAPAN |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1513 | BALL BEARING |
| TGT1557 | PRE-PROGRAM DIAL |
| TGT1558 | LEVER SHAFT BODY |
| TGT1560 | LEVER CLICK GEAR |
| TGT1561 | SCREW |
| TGT1562 | BOLT SHIELD |
| TGT1573 | BALL BEARING |
| TGT1577 | SCREW |
