TALICA - TAC25II
TALICA

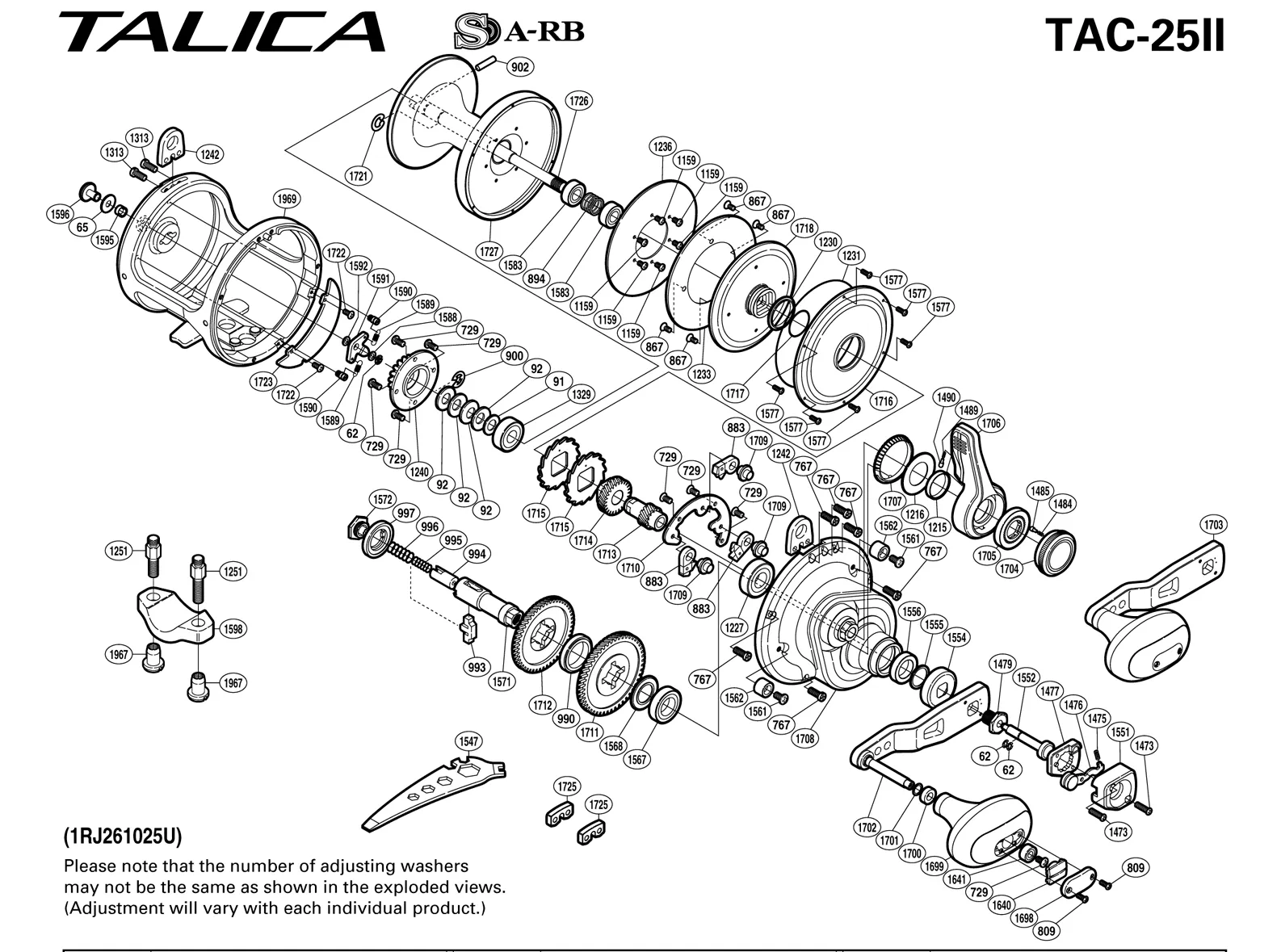

TALICA - TAC25II: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0091 | BEARING THRUST WASHER |
| TGT0092 | DRAG SPRING WASHER |
| TGT0351 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0352 | ROD CLAMP NUT (B) (ACCESSORY) |
| TGT0354 | ROD CLAMP NUT (A) (ACCESSORY) |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0767 | LEFT SIDE PLATE SCREW |
| TGT0809 | SCREW |
| TGT0867 | SCREW |
| TGT0883 | ANTI-REVERSE PAWL |
| TGT0894 | PRESSURE RELEASE SPRING |
| TGT0900 | E LOCK |
| TGT0902 | CROSS PIN |
| TGT0990 | FRICTION WASHER |
| TGT0993 | GEAR SELECT CROSS BAR |
| TGT0994 | CROSS BAR STOP |
| TGT0995 | DRIVE SHAFT SPRING B |
| TGT0996 | DRIVE SHAFT SPRING |
| TGT0997 | FRICTION WASHER |
| TGT1159 | SCREW |
| TGT1215 | LEVER THRUST RING |
| TGT1216 | WASHER |
| TGT1227 | BALL BEARING |
| TGT1230 | WATERPROOF RING |
| TGT1231 | O RING |
| TGT1233 | DRAG PLATE |
| TGT1236 | DRAG WASHER |
| TGT1239 | BALL BEARING MADE IN JAPAN |
| TGT1240 | CLICK GEAR SUPPORT |
| TGT1242 | HARNESS LUG |
| TGT1313 | SCREW |
| TGT1473 | SCREW |
| TGT1475 | SLIDE PLATE SPRING |
| TGT1476 | SLIDE PLATE |
| TGT1477 | HANDLE BOLT PLATE |
| TGT1479 | HANDLE BOLT |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1547 | WRENCH (ACCESSORY) |
| TGT1551 | PUSH BUTTON SHIELD |
| TGT1552 | PUSH LOW BUTTON SHAFT |
| TGT1554 | DRIVE SHAFT SHIELD |
| TGT1555 | WASHER |
| Part Number | Part Description |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0091 | BEARING THRUST WASHER |
| TGT0092 | DRAG SPRING WASHER |
| TGT0351 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0352 | ROD CLAMP NUT (B) (ACCESSORY) |
| TGT0354 | ROD CLAMP NUT (A) (ACCESSORY) |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0767 | LEFT SIDE PLATE SCREW |
| TGT0809 | SCREW |
| TGT0867 | SCREW |
| TGT0883 | ANTI-REVERSE PAWL |
| TGT0894 | PRESSURE RELEASE SPRING |
| TGT0900 | E LOCK |
| TGT0902 | CROSS PIN |
| TGT0990 | FRICTION WASHER |
| TGT0993 | GEAR SELECT CROSS BAR |
| TGT0994 | CROSS BAR STOP |
| TGT0995 | DRIVE SHAFT SPRING B |
| TGT0996 | DRIVE SHAFT SPRING |
| TGT0997 | FRICTION WASHER |
| TGT1159 | SCREW |
| TGT1215 | LEVER THRUST RING |
| TGT1216 | WASHER |
| TGT1227 | BALL BEARING |
| TGT1230 | WATERPROOF RING |
| TGT1231 | O RING |
| TGT1233 | DRAG PLATE |
| TGT1236 | DRAG WASHER |
| TGT1239 | BALL BEARING MADE IN JAPAN |
| TGT1240 | CLICK GEAR SUPPORT |
| TGT1242 | HARNESS LUG |
| TGT1313 | SCREW |
| TGT1473 | SCREW |
| TGT1475 | SLIDE PLATE SPRING |
| TGT1476 | SLIDE PLATE |
| TGT1477 | HANDLE BOLT PLATE |
| TGT1479 | HANDLE BOLT |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1547 | WRENCH (ACCESSORY) |
| TGT1551 | PUSH BUTTON SHIELD |
| TGT1552 | PUSH LOW BUTTON SHAFT |
| TGT1554 | DRIVE SHAFT SHIELD |
| TGT1555 | WASHER |
