TALICA - TAC50II
TALICA

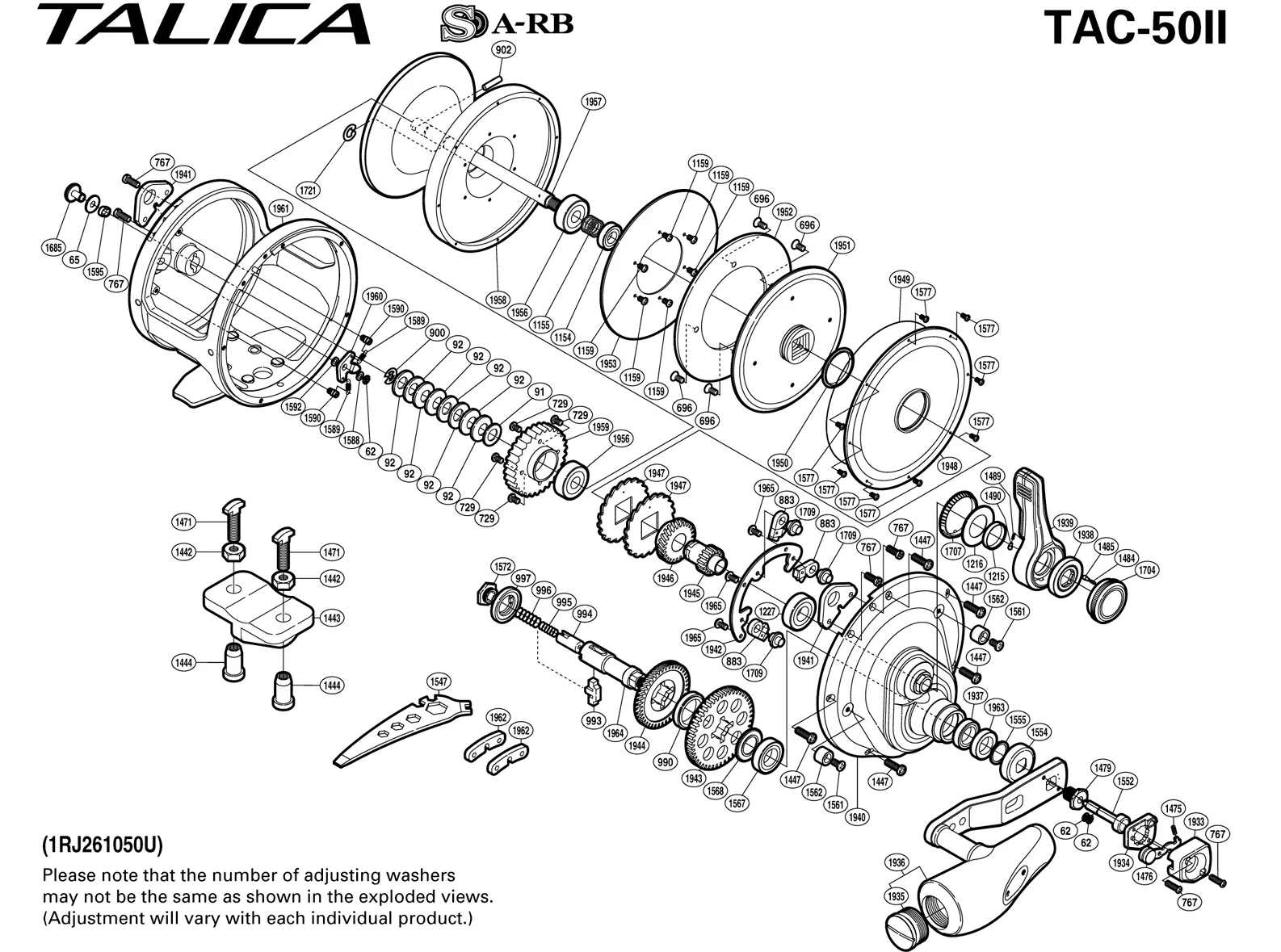

TALICA - TAC50II: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0091 | BEARING THRUST WASHER |
| TGT0092 | DRAG SPRING WASHER |
| TGT0696 | PLATE SCREW |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0767 | LEFT SIDE PLATE SCREW |
| TGT0883 | ANTI-REVERSE PAWL |
| TGT0900 | E LOCK |
| TGT0902 | CROSS PIN |
| TGT0990 | FRICTION WASHER |
| TGT0993 | GEAR SELECT CROSS BAR |
| TGT0994 | CROSS BAR STOP |
| TGT0995 | DRIVE SHAFT SPRING B |
| TGT0996 | DRIVE SHAFT SPRING |
| TGT0997 | FRICTION WASHER |
| TGT1159 | SCREW |
| TGT1215 | LEVER THRUST RING |
| TGT1216 | WASHER |
| TGT1227 | BALL BEARING |
| TGT1442 TT 0391 | ROD CLAMP NUT (B) |
| TGT1443 TT 0392 | ROD CLAMP |
| TGT1444 TT 0393 | ROD CLAMP NUT (A) |
| TGT1447 | SCREW |
| TGT1471 TT 0803 | ROD CLAMP BOLT |
| TGT1475 | SLIDE PLATE SPRING |
| TGT1476 | SLIDE PLATE |
| TGT1479 | HANDLE BOLT |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1547 | WRENCH (ACCESSORY) |
| TGT1552 | PUSH LOW BUTTON SHAFT |
| TGT1554 | DRIVE SHAFT SHIELD |
| TGT1555 | WASHER |
| TGT1561 | SCREW |
| TGT1562 | BOLT SHIELD |
| TGT1567 | BALL BEARING MADE IN JAPAN |
| TGT1568 | DRIVE GEAR WASHER |
| TGT1572 | DRIVE SHAFT SCREW |
| TGT1577 | SCREW |
| Part Number | Part Description |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0091 | BEARING THRUST WASHER |
| TGT0092 | DRAG SPRING WASHER |
| TGT0696 | PLATE SCREW |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0767 | LEFT SIDE PLATE SCREW |
| TGT0883 | ANTI-REVERSE PAWL |
| TGT0900 | E LOCK |
| TGT0902 | CROSS PIN |
| TGT0990 | FRICTION WASHER |
| TGT0993 | GEAR SELECT CROSS BAR |
| TGT0994 | CROSS BAR STOP |
| TGT0995 | DRIVE SHAFT SPRING B |
| TGT0996 | DRIVE SHAFT SPRING |
| TGT0997 | FRICTION WASHER |
| TGT1159 | SCREW |
| TGT1215 | LEVER THRUST RING |
| TGT1216 | WASHER |
| TGT1227 | BALL BEARING |
| TGT1442 TT 0391 | ROD CLAMP NUT (B) |
| TGT1443 TT 0392 | ROD CLAMP |
| TGT1444 TT 0393 | ROD CLAMP NUT (A) |
| TGT1447 | SCREW |
| TGT1471 TT 0803 | ROD CLAMP BOLT |
| TGT1475 | SLIDE PLATE SPRING |
| TGT1476 | SLIDE PLATE |
| TGT1479 | HANDLE BOLT |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1547 | WRENCH (ACCESSORY) |
| TGT1552 | PUSH LOW BUTTON SHAFT |
| TGT1554 | DRIVE SHAFT SHIELD |
| TGT1555 | WASHER |
| TGT1561 | SCREW |
| TGT1562 | BOLT SHIELD |
| TGT1567 | BALL BEARING MADE IN JAPAN |
| TGT1568 | DRIVE GEAR WASHER |
| TGT1572 | DRIVE SHAFT SCREW |
| TGT1577 | SCREW |
