TALICA - TAC8
TALICA

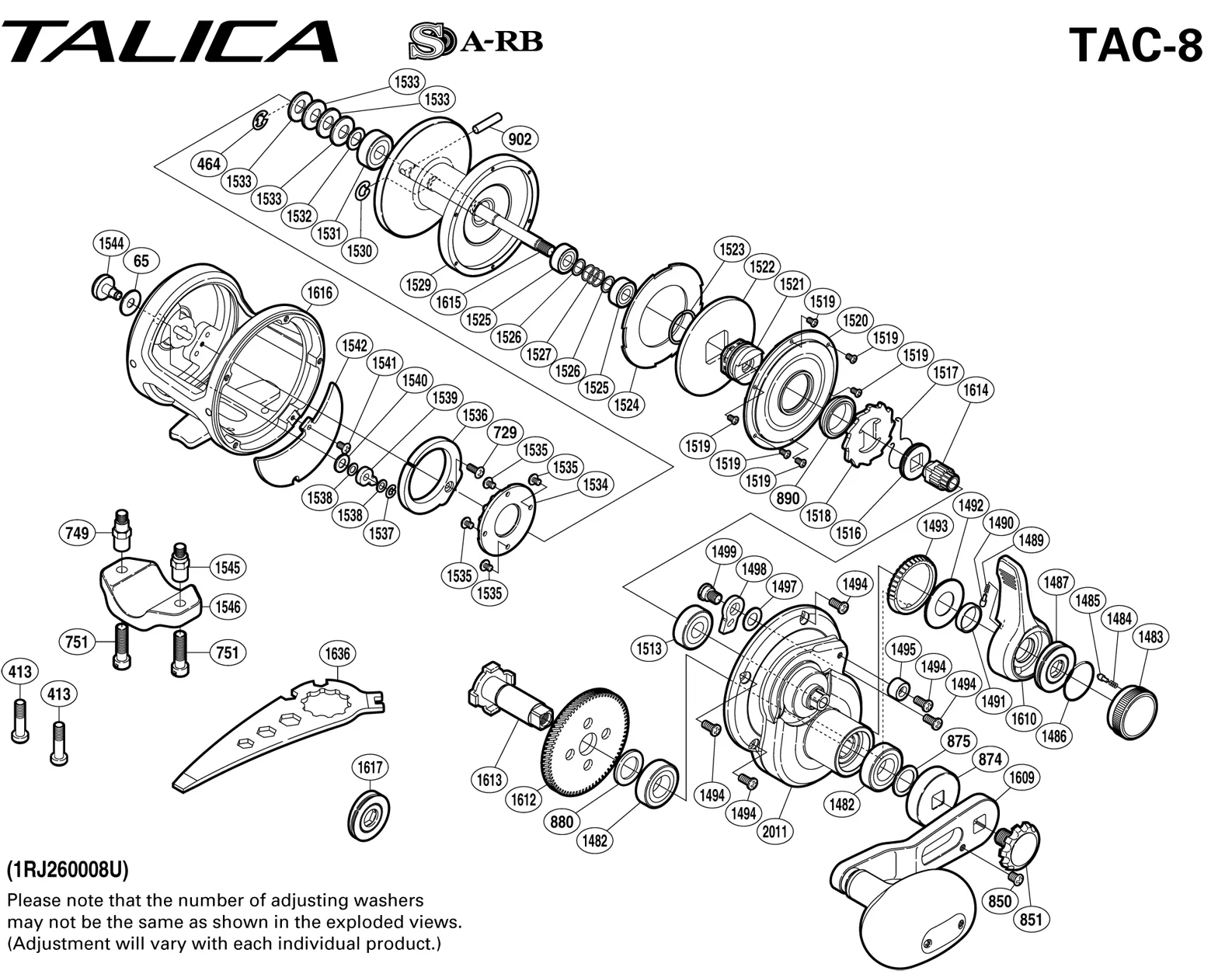

TALICA - TAC8: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0065 | SPACER A |
| TGT0413 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0464 | CLICK GEAR RETAINER |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0749 | ROD CLAMP NUT (ACCESSORY) |
| TGT0751 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0850 | SCREW |
| TGT0851 | HANDLE BOLT |
| TGT0874 | GEAR SHAFT SHIELD |
| TGT0875 | WASHER |
| TGT0880 | WASHER |
| TGT0890 | WATERPROOF RING |
| TGT0902 | CROSS PIN |
| TGT1482 | BALL BEARING MADE IN JAPAN |
| TGT1483 | PRE-PROGRAM DIAL |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1486 | O RING |
| TGT1487 | LEVER SHAFT BODY |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1491 | LEVER THRUST RING |
| TGT1492 | WASHER |
| TGT1493 | LEVER CLICK GEAR |
| TGT1494 | SCREW |
| TGT1495 | BOLT SHIELD |
| TGT1497 | WASHER |
| TGT1498 | ANTI-REVERSE PAWL |
| TGT1499 | ANTI-REVERSE PAWL PIN |
| TGT1513 | BALL BEARING |
| TGT1516 | ANTI-REVERSE PAWL SPRING HLDR |
| TGT1517 | ANTI-REVERSE PAWL SPRING |
| TGT1518 | ANTI-REVERSE RATCHET |
| TGT1519 | SCREW |
| Part Number | Part Description |
| TGT0065 | SPACER A |
| TGT0413 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0464 | CLICK GEAR RETAINER |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0749 | ROD CLAMP NUT (ACCESSORY) |
| TGT0751 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0850 | SCREW |
| TGT0851 | HANDLE BOLT |
| TGT0874 | GEAR SHAFT SHIELD |
| TGT0875 | WASHER |
| TGT0880 | WASHER |
| TGT0890 | WATERPROOF RING |
| TGT0902 | CROSS PIN |
| TGT1482 | BALL BEARING MADE IN JAPAN |
| TGT1483 | PRE-PROGRAM DIAL |
| TGT1484 | CLICK SPRING |
| TGT1485 | CLICK PIN |
| TGT1486 | O RING |
| TGT1487 | LEVER SHAFT BODY |
| TGT1489 | LEVER CLICK SHOE |
| TGT1490 | LEVER CLICK |
| TGT1491 | LEVER THRUST RING |
| TGT1492 | WASHER |
| TGT1493 | LEVER CLICK GEAR |
| TGT1494 | SCREW |
| TGT1495 | BOLT SHIELD |
| TGT1497 | WASHER |
| TGT1498 | ANTI-REVERSE PAWL |
| TGT1499 | ANTI-REVERSE PAWL PIN |
| TGT1513 | BALL BEARING |
| TGT1516 | ANTI-REVERSE PAWL SPRING HLDR |
| TGT1517 | ANTI-REVERSE PAWL SPRING |
| TGT1518 | ANTI-REVERSE RATCHET |
| TGT1519 | SCREW |
