TEKOTA - TEK700
TEKOTA

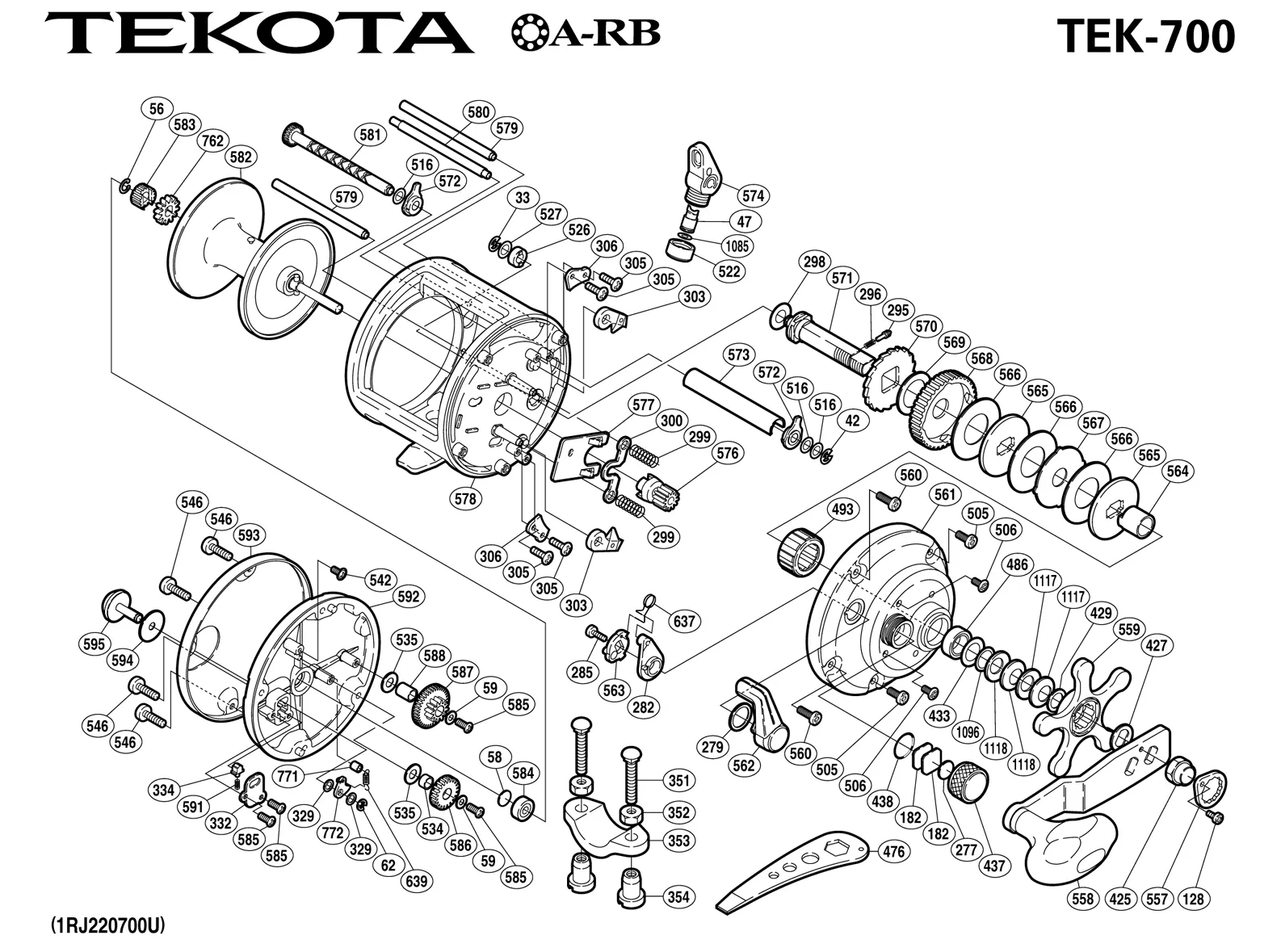

TEKOTA - TEK700: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0033 | DRIVE SHAFT RETAINER |
| TGT0042 | WORM SHAFT RETAINER |
| TGT0047 | LINE GUIDE PAWL |
| TGT0056 BNT0675 | "IDLE GEAR ""A"" RETAINER" |
| TGT0058 | SPACER B |
| TGT0059 BNT0690 | LOCK WASHER |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0128 | HANDLE NUT PLATE SCREW |
| TGT0182 | CAST CONTROL SPACER |
| TGT0277 | CAST CONTROL SPACER (B) |
| TGT0279 | SMOOTHER |
| TGT0282 | ECCENTRIC CAM BUSHING |
| TGT0285 | CLUTCH LEVER SCREW |
| TGT0295 BNT2900 | CLICK PIN |
| TGT0296 BNT2901 | CLICK SPRING |
| TGT0298 | DRIVE SHAFT WASHER (B) |
| TGT0299 | YOKE SPRING |
| TGT0300 BNT2911 | YOKE |
| TGT0303 | ANTI-REVERSE PAWL |
| TGT0305 | MULTI-PURPOSE SCREW |
| TGT0306 | ANTI-REVERSE PAWL KEEPER |
| TGT0329 | SPACER (B) |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0351 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0352 | ROD CLAMP NUT (B) (ACCESSORY) |
| TGT0353 | ROD CLAMP (ACCESSORY) |
| TGT0354 | ROD CLAMP NUT (A) (ACCESSORY) |
| TGT0425 | HANDLE NUT |
| TGT0427 | DRIVE SHAFT SHIELD |
| TGT0429 | STAR DRAG WASHER |
| TGT0433 | BEARING SEAL |
| TGT0437 | CAST CONTROL CAP |
| TGT0438 | O RING |
| TGT0476 | WRENCH |
| TGT0486 BNT2951 | BALL BEARING (ARB) |
| TGT0493 BNT2952 | ROLLER CLUTCH BEARING (ARB) |
| TGT0505 | RIGHT SIDE PLATE SCREW (A) |
| TGT0506 | RIGHT SIDE PLATE SCREW (B) |
| TGT0516 | WORM SHAFT SPACER |
| TGT0522 | PAWL CAP |
| TGT0526 | DRIVE SHAFT BUSHING |
| TGT0527 | SPACER |
| TGT0534 | IDLE GEAR "B" SUPPORT |
| TGT0535 | SPACER "A" |
| TGT0542 | CLICK PAWL SPRING SCREW |
| Part Number | Part Description |
| TGT0033 | DRIVE SHAFT RETAINER |
| TGT0042 | WORM SHAFT RETAINER |
| TGT0047 | LINE GUIDE PAWL |
| TGT0056 BNT0675 | "IDLE GEAR ""A"" RETAINER" |
| TGT0058 | SPACER B |
| TGT0059 BNT0690 | LOCK WASHER |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0128 | HANDLE NUT PLATE SCREW |
| TGT0182 | CAST CONTROL SPACER |
| TGT0277 | CAST CONTROL SPACER (B) |
| TGT0279 | SMOOTHER |
| TGT0282 | ECCENTRIC CAM BUSHING |
| TGT0285 | CLUTCH LEVER SCREW |
| TGT0295 BNT2900 | CLICK PIN |
| TGT0296 BNT2901 | CLICK SPRING |
| TGT0298 | DRIVE SHAFT WASHER (B) |
| TGT0299 | YOKE SPRING |
| TGT0300 BNT2911 | YOKE |
| TGT0303 | ANTI-REVERSE PAWL |
| TGT0305 | MULTI-PURPOSE SCREW |
| TGT0306 | ANTI-REVERSE PAWL KEEPER |
| TGT0329 | SPACER (B) |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0351 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0352 | ROD CLAMP NUT (B) (ACCESSORY) |
| TGT0353 | ROD CLAMP (ACCESSORY) |
| TGT0354 | ROD CLAMP NUT (A) (ACCESSORY) |
| TGT0425 | HANDLE NUT |
| TGT0427 | DRIVE SHAFT SHIELD |
| TGT0429 | STAR DRAG WASHER |
| TGT0433 | BEARING SEAL |
| TGT0437 | CAST CONTROL CAP |
| TGT0438 | O RING |
| TGT0476 | WRENCH |
| TGT0486 BNT2951 | BALL BEARING (ARB) |
| TGT0493 BNT2952 | ROLLER CLUTCH BEARING (ARB) |
| TGT0505 | RIGHT SIDE PLATE SCREW (A) |
| TGT0506 | RIGHT SIDE PLATE SCREW (B) |
| TGT0516 | WORM SHAFT SPACER |
| TGT0522 | PAWL CAP |
| TGT0526 | DRIVE SHAFT BUSHING |
| TGT0527 | SPACER |
| TGT0534 | IDLE GEAR "B" SUPPORT |
| TGT0535 | SPACER "A" |
| TGT0542 | CLICK PAWL SPRING SCREW |
