TIAGRA - TI12
TIAGRA

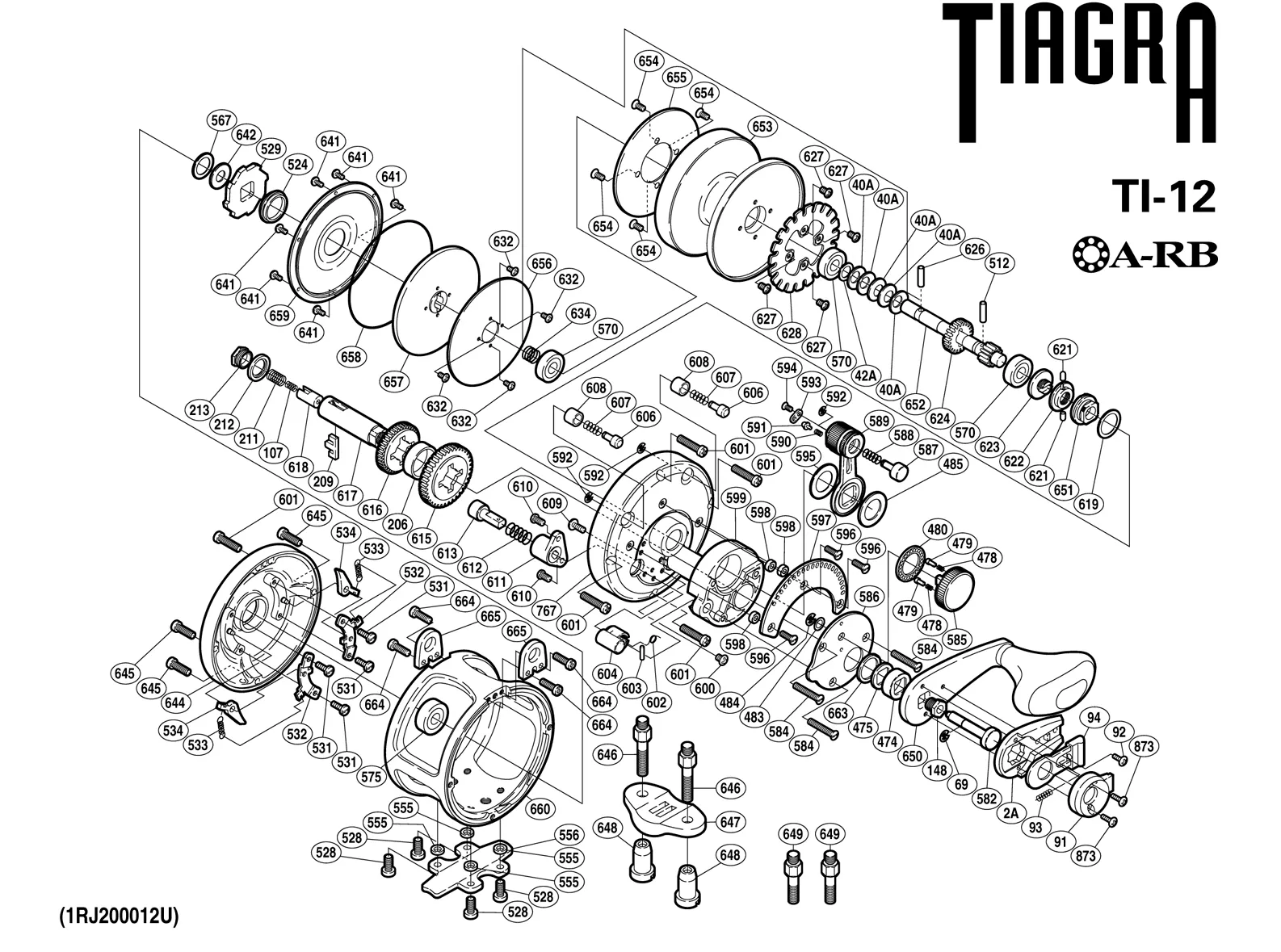

TIAGRA - TI12: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TT 0002A | HANDLE BOLT PLATE |
| TT 0040A BNT1811 | PRE LOAD SPRING |
| TT 0042A TGT0828 | BEARING THRUST WASHER |
| TT 0069 | |
| TT 0091 | PUSH BUTTON SHIELD |
| TT 0092 | HANDLE BOLT PLATE SCREW |
| TT 0093 TGT0970 | SLIDE PLATE SPRING |
| TT 0094 | SLIDE PLATE |
| TT 0107 | DRIVE SHAFT SPRING B |
| TT 0148 | HANDLE BOLT |
| TT 0206 | FRICTION WASHER (C) |
| TT 0209 | GEAR SELECT CROSS BAR |
| TT 0211 | DRIVE SHAFT SPRING |
| TT 0212 | FRICTION WASHER (A) |
| TT 0213 | DRIVE SHAFT SCREW |
| TT 0343 | |
| TT 0474 | DRIVE SHAFT SHIELD |
| TT 0475 | DRIVE SHAFT THRUST WASHER |
| TT 0478 | FRICTION SHOE SPRING |
| TT 0479 | DIAL CLICK SHOE |
| TT 0480 | DIAL CLICK |
| TT 0483 | DIAL WASHER |
| TT 0484 | E LOCK |
| TT 0485 | LEVER THRUST RING (B) |
| TT 0512 | CROSS PIN (A) |
| TT 0524 TGT0890 | WATERPROOF RING |
| TT 0528 | STAND SCREW |
| TT 0529 | ANTI-REVERSE RATCHET |
| TT 0531 | SET PLATE SCREW |
| TT 0532 | SET PLATE |
| TT 0533 | DOG SPRING |
| TT 0534 | DOG |
| TT 0555 | STAND WASHER |
| TT 0556 | STAND |
| TT 0567 TGT0899 | BEARING THRUST WASHER (B) |
| TT 0570 | BALL BEARING(4.66G) MADE IN JA |
| TT 0575 | BALL BEARING(6.46G) MADE IN JA |
| TT 0582 | PUSH LOW BUTTON SHAFT |
| TT 0584 | COVER SCREW |
| TT 0585 | PRE-PROGRAM DIAL |
| TT 0586 | LEVER HUB COVER |
| TT 0587 | DRAG CONTROL BUTTON |
| TT 0588 | DRAG CONTROL BUTTON SPRING |
| TT 0589 | DRAG CONTROL LEVER |
| TT 0590 | LEVER CLICK SHOE |
| TT 0591 | LEVER CLICK |
| TT 0592 TGT0631 | "E" LOCK |
| TT 0593 | LEVER CLICK COVER |
| TT 0594 | LEVER CLICK COVER SCREW |
| TT 0595 | LEVER THRUST RING (A) |
| TT 0596 | QUADRANT ANCHOR BOLT |
| TT 0597 | LEVER QUADRANT |
| Part Number | Part Description |
| TT 0002A | HANDLE BOLT PLATE |
| TT 0040A BNT1811 | PRE LOAD SPRING |
| TT 0042A TGT0828 | BEARING THRUST WASHER |
| TT 0069 | |
| TT 0091 | PUSH BUTTON SHIELD |
| TT 0092 | HANDLE BOLT PLATE SCREW |
| TT 0093 TGT0970 | SLIDE PLATE SPRING |
| TT 0094 | SLIDE PLATE |
| TT 0107 | DRIVE SHAFT SPRING B |
| TT 0148 | HANDLE BOLT |
| TT 0206 | FRICTION WASHER (C) |
| TT 0209 | GEAR SELECT CROSS BAR |
| TT 0211 | DRIVE SHAFT SPRING |
| TT 0212 | FRICTION WASHER (A) |
| TT 0213 | DRIVE SHAFT SCREW |
| TT 0343 | |
| TT 0474 | DRIVE SHAFT SHIELD |
| TT 0475 | DRIVE SHAFT THRUST WASHER |
| TT 0478 | FRICTION SHOE SPRING |
| TT 0479 | DIAL CLICK SHOE |
| TT 0480 | DIAL CLICK |
| TT 0483 | DIAL WASHER |
| TT 0484 | E LOCK |
| TT 0485 | LEVER THRUST RING (B) |
| TT 0512 | CROSS PIN (A) |
| TT 0524 TGT0890 | WATERPROOF RING |
| TT 0528 | STAND SCREW |
| TT 0529 | ANTI-REVERSE RATCHET |
| TT 0531 | SET PLATE SCREW |
| TT 0532 | SET PLATE |
| TT 0533 | DOG SPRING |
| TT 0534 | DOG |
| TT 0555 | STAND WASHER |
| TT 0556 | STAND |
| TT 0567 TGT0899 | BEARING THRUST WASHER (B) |
| TT 0570 | BALL BEARING(4.66G) MADE IN JA |
| TT 0575 | BALL BEARING(6.46G) MADE IN JA |
| TT 0582 | PUSH LOW BUTTON SHAFT |
| TT 0584 | COVER SCREW |
| TT 0585 | PRE-PROGRAM DIAL |
| TT 0586 | LEVER HUB COVER |
| TT 0587 | DRAG CONTROL BUTTON |
| TT 0588 | DRAG CONTROL BUTTON SPRING |
| TT 0589 | DRAG CONTROL LEVER |
| TT 0590 | LEVER CLICK SHOE |
| TT 0591 | LEVER CLICK |
| TT 0592 TGT0631 | "E" LOCK |
| TT 0593 | LEVER CLICK COVER |
| TT 0594 | LEVER CLICK COVER SCREW |
| TT 0595 | LEVER THRUST RING (A) |
| TT 0596 | QUADRANT ANCHOR BOLT |
| TT 0597 | LEVER QUADRANT |
