TIAGRA - TI130A
TIAGRA

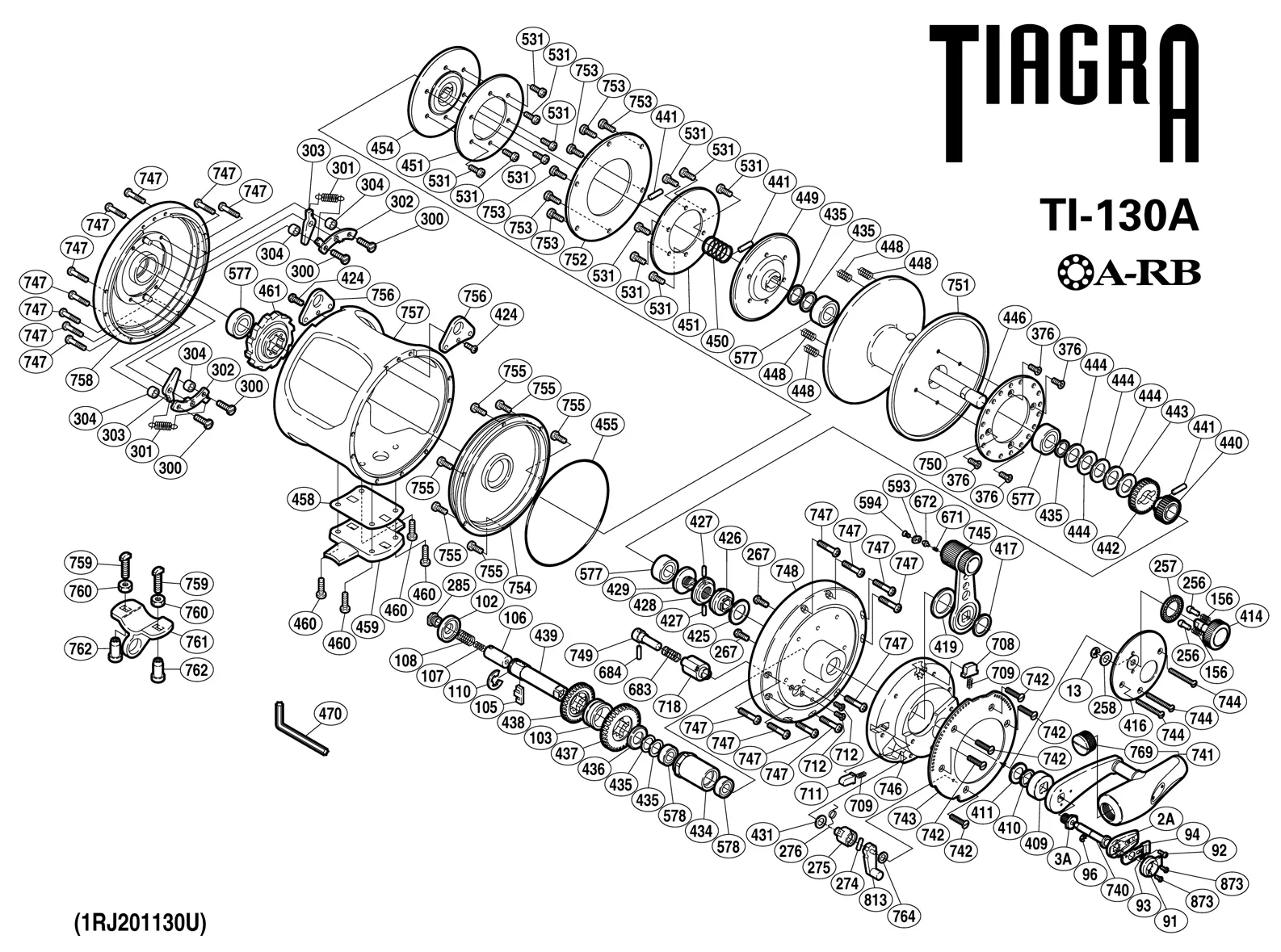

TIAGRA - TI130A: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TT 0002A | HANDLE BOLT PLATE |
| TT 0003A | HANDLE BOLT |
| TT 0013 TGT0464 | """C"" LOCK" |
| TT 0091 | PUSH BUTTON SHIELD |
| TT 0092 | HANDLE BOLT PLATE SCREW |
| TT 0093 TGT0970 | SLIDE PLATE SPRING |
| TT 0094 | SLIDE PLATE |
| TT 0096 BNT0425 | """E"" LOCK" |
| TT 0102 | FRICTION WASHER (A) |
| TT 0103 | FRICTION WASHER (B) |
| TT 0105 | GEAR SELECT CROSS BAR |
| TT 0106 | CROSS BAR STOP |
| TT 0107 | DRIVE SHAFT SPRING B |
| TT 0108 | DRIVE SHAFT SPRING |
| TT 0110 | "E" LOCK |
| TT 0156 | FRICTION SHOE SPRING |
| TT 0186 BNT0687 | SPACER (B) |
| TT 0256 | DIAL CLICK SHOE |
| TT 0257 | DIAL CLICK |
| TT 0258 | DIAL WASHER |
| TT 0267 | RIGHT SIDE PLATE (B) SCREW |
| TT 0272 | |
| TT 0274 | PLUNGER CROSS PIN (B) |
| TT 0275 | PLUNGER CROSS PIN SUPPORT |
| TT 0276 | CROSS PIN SUPPORT SPRING |
| TT 0285 | DRIVE SHAFT SCREW |
| TT 0300 | SET PLATE SCREW |
| TT 0301 | DOG SPRING |
| TT 0302 | SET PLATE |
| TT 0303 | DOG |
| TT 0304 | SET PLATE SUPPORT |
| TT 0319 | |
| TT 0343 | |
| TT 0376 TGT0454 | DRAG PLATE SCREW |
| TT 0409 | DRIVE SHAFT SHIELD |
| TT 0410 | DRIVE SHAFT THRUST WASHER |
| TT 0411 | BEARING SPACER |
| TT 0414 | PRE-PROGRAM DIAL |
| TT 0416 | LEVER HUB COVER |
| TT 0417 | LEVER THRUST RING (A) |
| TT 0419 | LEVER THRUST RING (B) |
| TT 0424 TGT0505 | HARNESS LUG SCREW |
| TT 0425 | LEVER SHAFT BODY WASHER |
| TT 0426 | LEVER SHAFT BODY |
| TT 0427 | PRE-PROGRAM KEY PIN |
| TT 0428 | PRE-PROGRAM KEY |
| TT 0429 | |
| TT 0431 | SPACER (C) |
| TT 0434 | DRIVE SHAFT HOLDER |
| TT 0435 | SPACER (D) |
| TT 0436 | FRICTION WASHER (C) |
| TT 0437 | DRIVE GEAR (A) |
| TT 0438 | DRIVE GEAR (B) |
| TT 0439 | DRIVE SHAFT |
| Part Number | Part Description |
| TT 0002A | HANDLE BOLT PLATE |
| TT 0003A | HANDLE BOLT |
| TT 0013 TGT0464 | """C"" LOCK" |
| TT 0091 | PUSH BUTTON SHIELD |
| TT 0092 | HANDLE BOLT PLATE SCREW |
| TT 0093 TGT0970 | SLIDE PLATE SPRING |
| TT 0094 | SLIDE PLATE |
| TT 0096 BNT0425 | """E"" LOCK" |
| TT 0102 | FRICTION WASHER (A) |
| TT 0103 | FRICTION WASHER (B) |
| TT 0105 | GEAR SELECT CROSS BAR |
| TT 0106 | CROSS BAR STOP |
| TT 0107 | DRIVE SHAFT SPRING B |
| TT 0108 | DRIVE SHAFT SPRING |
| TT 0110 | "E" LOCK |
| TT 0156 | FRICTION SHOE SPRING |
| TT 0186 BNT0687 | SPACER (B) |
| TT 0256 | DIAL CLICK SHOE |
| TT 0257 | DIAL CLICK |
| TT 0258 | DIAL WASHER |
| TT 0267 | RIGHT SIDE PLATE (B) SCREW |
| TT 0272 | |
| TT 0274 | PLUNGER CROSS PIN (B) |
| TT 0275 | PLUNGER CROSS PIN SUPPORT |
| TT 0276 | CROSS PIN SUPPORT SPRING |
| TT 0285 | DRIVE SHAFT SCREW |
| TT 0300 | SET PLATE SCREW |
| TT 0301 | DOG SPRING |
| TT 0302 | SET PLATE |
| TT 0303 | DOG |
| TT 0304 | SET PLATE SUPPORT |
| TT 0319 | |
| TT 0343 | |
| TT 0376 TGT0454 | DRAG PLATE SCREW |
| TT 0409 | DRIVE SHAFT SHIELD |
| TT 0410 | DRIVE SHAFT THRUST WASHER |
| TT 0411 | BEARING SPACER |
| TT 0414 | PRE-PROGRAM DIAL |
| TT 0416 | LEVER HUB COVER |
| TT 0417 | LEVER THRUST RING (A) |
| TT 0419 | LEVER THRUST RING (B) |
| TT 0424 TGT0505 | HARNESS LUG SCREW |
| TT 0425 | LEVER SHAFT BODY WASHER |
| TT 0426 | LEVER SHAFT BODY |
| TT 0427 | PRE-PROGRAM KEY PIN |
| TT 0428 | PRE-PROGRAM KEY |
| TT 0429 | |
| TT 0431 | SPACER (C) |
| TT 0434 | DRIVE SHAFT HOLDER |
| TT 0435 | SPACER (D) |
| TT 0436 | FRICTION WASHER (C) |
| TT 0437 | DRIVE GEAR (A) |
| TT 0438 | DRIVE GEAR (B) |
| TT 0439 | DRIVE SHAFT |
