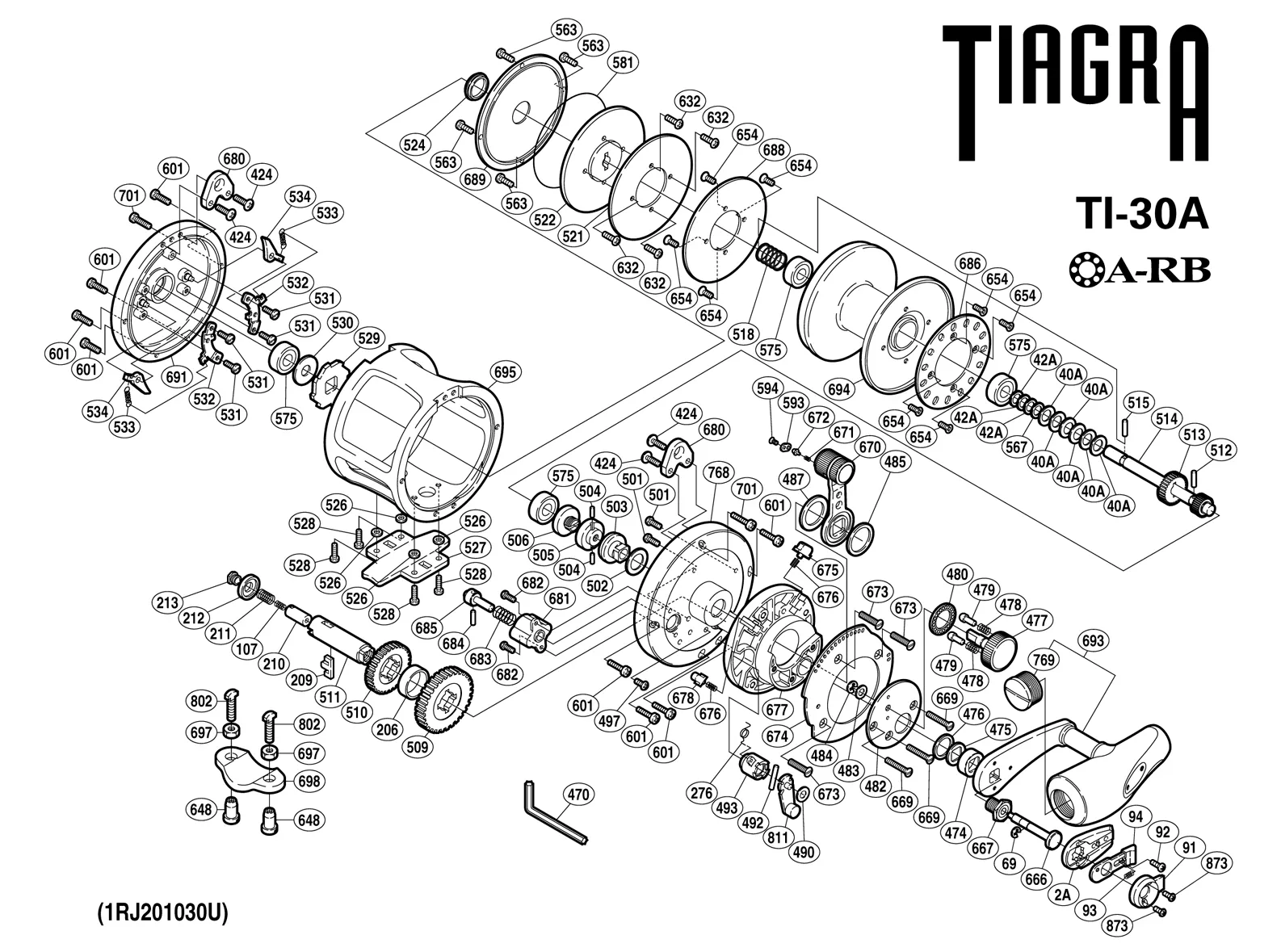

TIAGRA - TI30A: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TT 0002A | HANDLE BOLT PLATE |
| TT 0040A BNT1811 | PRE LOAD SPRING |
| TT 0042A TGT0828 | BEARING THRUST WASHER |
| TT 0069 | |
| TT 0091 | PUSH BUTTON SHIELD |
| TT 0092 | HANDLE BOLT PLATE SCREW |
| TT 0093 TGT0970 | SLIDE PLATE SPRING |
| TT 0094 | SLIDE PLATE |
| TT 0107 | DRIVE SHAFT SPRING B |
| TT 0206 | FRICTION WASHER (C) |
| TT 0209 | GEAR SELECT CROSS BAR |
| TT 0210 | CROSS BAR STOP |
| TT 0211 | DRIVE SHAFT SPRING |
| TT 0212 | FRICTION WASHER (A) |
| TT 0213 | DRIVE SHAFT SCREW |
| TT 0276 | CROSS PIN SUPPORT SPRING |
| TT 0343 | |
| TT 0424 TGT0505 | HARNESS LUG SCREW |
| TT 0470 | |
| TT 0474 | DRIVE SHAFT SHIELD |
| TT 0475 | DRIVE SHAFT THRUST WASHER |
| TT 0476 | BEARING SPACER |
| TT 0477 | PRE-PROGRAM DIAL |
| TT 0478 | FRICTION SHOE SPRING |
| TT 0479 | DIAL CLICK SHOE |
| TT 0480 | DIAL CLICK |
| TT 0482 | LEVER HUB COVER |
| TT 0483 | DIAL WASHER |
| TT 0484 | E LOCK |
| TT 0485 | LEVER THRUST RING (B) |
| TT 0487 | LEVER THRUST RING (A) |
| TT 0490 | SPACER |
| TT 0491 | |
| TT 0492 | PLUNGER CROSS PIN (B) |
| TT 0493 | PLUNGER CROSS PINSUPPORT |
| TT 0497 | |
| TT 0501 | RIGHT SIDE PLATE (B) SCREW |
| TT 0502 | LEVER SHAFT BODY WASHER |
| TT 0503 | LEVER SHAFT BODY |
| TT 0504 | PRE-PROGRAM KEY PIN |
| TT 0505 | PRE-PROGRAM KEY |
| TT 0506 | PRE-PROGRAM SCREW |
| TT 0509 | DRIVE GEAR (A) |
| TT 0510 | DRIVE GEAR (B) |
| TT 0511 | DRIVE SHAFT |
| TT 0512 | CROSS PIN (A) |
| TT 0513 | PINION GEAR (B) |
| TT 0514 | PINION SHAFT |
| TT 0515 | CROSS PIN (B) |
| TT 0518 | PRESSURE PLATE SPRING |
| TT 0521 | DRAG WASHER |
| Part Number | Part Description |
| TT 0002A | HANDLE BOLT PLATE |
| TT 0040A BNT1811 | PRE LOAD SPRING |
| TT 0042A TGT0828 | BEARING THRUST WASHER |
| TT 0069 | |
| TT 0091 | PUSH BUTTON SHIELD |
| TT 0092 | HANDLE BOLT PLATE SCREW |
| TT 0093 TGT0970 | SLIDE PLATE SPRING |
| TT 0094 | SLIDE PLATE |
| TT 0107 | DRIVE SHAFT SPRING B |
| TT 0206 | FRICTION WASHER (C) |
| TT 0209 | GEAR SELECT CROSS BAR |
| TT 0210 | CROSS BAR STOP |
| TT 0211 | DRIVE SHAFT SPRING |
| TT 0212 | FRICTION WASHER (A) |
| TT 0213 | DRIVE SHAFT SCREW |
| TT 0276 | CROSS PIN SUPPORT SPRING |
| TT 0343 | |
| TT 0424 TGT0505 | HARNESS LUG SCREW |
| TT 0470 | |
| TT 0474 | DRIVE SHAFT SHIELD |
| TT 0475 | DRIVE SHAFT THRUST WASHER |
| TT 0476 | BEARING SPACER |
| TT 0477 | PRE-PROGRAM DIAL |
| TT 0478 | FRICTION SHOE SPRING |
| TT 0479 | DIAL CLICK SHOE |
| TT 0480 | DIAL CLICK |
| TT 0482 | LEVER HUB COVER |
| TT 0483 | DIAL WASHER |
| TT 0484 | E LOCK |
| TT 0485 | LEVER THRUST RING (B) |
| TT 0487 | LEVER THRUST RING (A) |
| TT 0490 | SPACER |
| TT 0491 | |
| TT 0492 | PLUNGER CROSS PIN (B) |
| TT 0493 | PLUNGER CROSS PINSUPPORT |
| TT 0497 | |
| TT 0501 | RIGHT SIDE PLATE (B) SCREW |
| TT 0502 | LEVER SHAFT BODY WASHER |
| TT 0503 | LEVER SHAFT BODY |
| TT 0504 | PRE-PROGRAM KEY PIN |
| TT 0505 | PRE-PROGRAM KEY |
| TT 0506 | PRE-PROGRAM SCREW |
| TT 0509 | DRIVE GEAR (A) |
| TT 0510 | DRIVE GEAR (B) |
| TT 0511 | DRIVE SHAFT |
| TT 0512 | CROSS PIN (A) |
| TT 0513 | PINION GEAR (B) |
| TT 0514 | PINION SHAFT |
| TT 0515 | CROSS PIN (B) |
| TT 0518 | PRESSURE PLATE SPRING |
| TT 0521 | DRAG WASHER |
