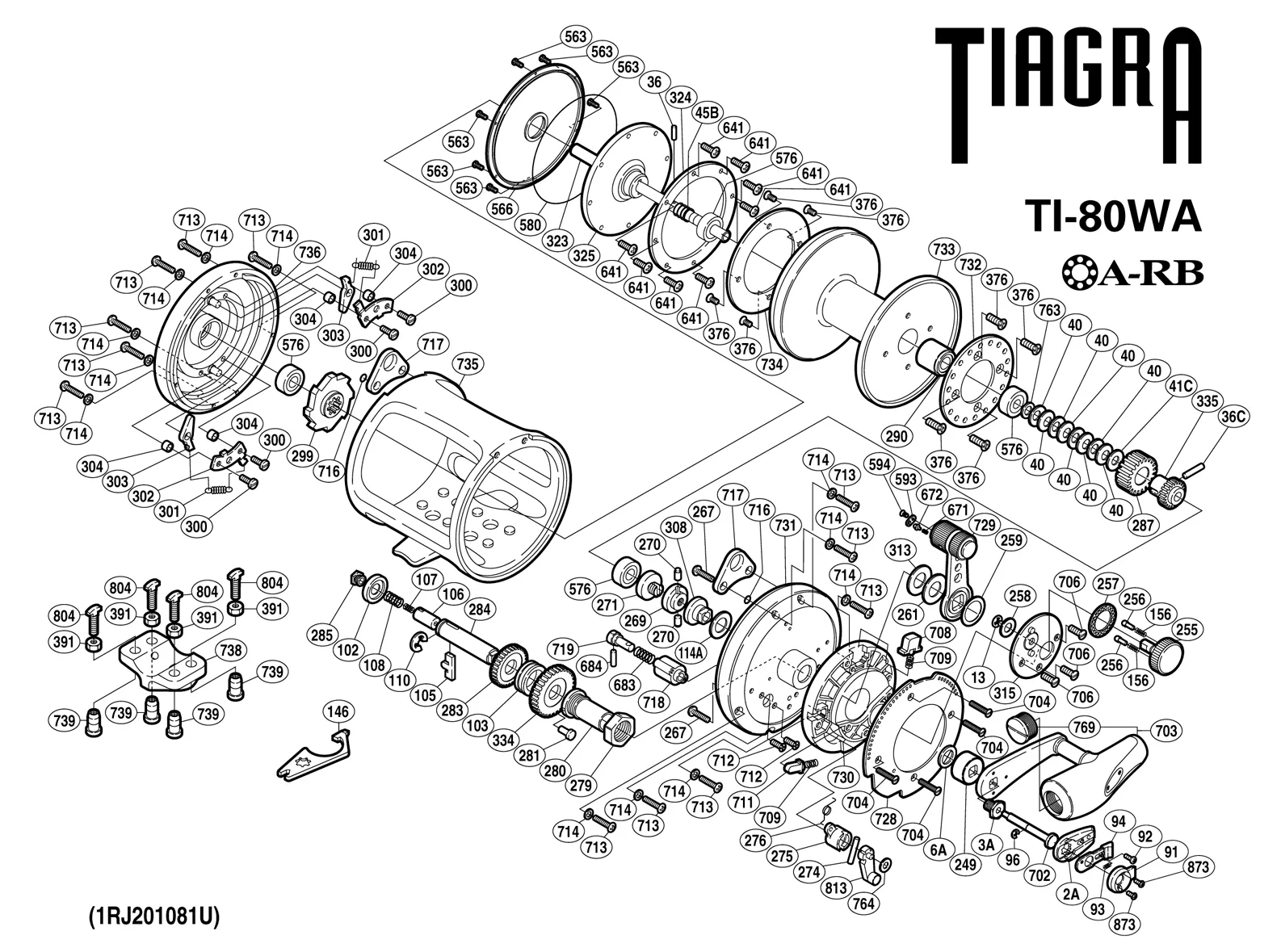

TIAGRA - TI80WA: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TT 0002A | HANDLE BOLT PLATE |
| TT 0003A | HANDLE BOLT |
| TT 0006A | DRIVE SHAFT WASHER |
| TT 0013 TGT0464 | """C"" LOCK" |
| TT 0036 | CROSS PIN |
| TT 0036C | CROSS PIN (B) |
| TT 0040 RD 8341 | PRELOAD SPRING H |
| TT 0041C | INNER PRE LOAD WASHER |
| TT 0045B | PRESSURE PLATE SPRING |
| TT 0091 | PUSH BUTTON SHIELD |
| TT 0092 | HANDLE BOLT PLATE SCREW |
| TT 0093 TGT0970 | SLIDE PLATE SPRING |
| TT 0094 | SLIDE PLATE |
| TT 0096 BNT0425 | """E"" LOCK" |
| TT 0102 | FRICTION WASHER (A) |
| TT 0103 | FRICTION WASHER (B) |
| TT 0105 | GEAR SELECT CROSS BAR |
| TT 0106 | CROSS BAR STOP |
| TT 0107 | DRIVE SHAFT SPRING B |
| TT 0108 | DRIVE SHAFT SPRING |
| TT 0110 | "E" LOCK |
| TT 0114A | LEVER SHAFT BODY WASHER |
| TT 0146 TLD0230 | WRENCH |
| TT 0156 | FRICTION SHOE SPRING |
| TT 0249 | DRIVE SHAFT SHIELD |
| TT 0255 | PRE PROGRAM DIAL |
| TT 0256 | DIAL CLICK SHOE |
| TT 0257 | DIAL CLICK |
| TT 0258 | DIAL WASHER |
| TT 0259 | LEVER THRUST RING A |
| TT 0261 | LEVER THRUST RING B-1 |
| TT 0267 | RIGHT SIDE PLATE (B) SCREW |
| TT 0269 | PRE PROGRAM KEY |
| TT 0270 | PRE PROGRAM KEY PIN |
| TT 0271 | PRE PROGRAM SCREW |
| TT 0274 | PLUNGER CROSS PIN (B) |
| TT 0275 | PLUNGER CROSS PIN SUPPORT |
| TT 0276 | CROSS PIN SUPPORT SPRING |
| TT 0279 | HOLDER NUT |
| TT 0280 | DRIVE SHAFT HOLDER |
| TT 0281 | LOCK PIN |
| TT 0282 | DRIVE GEAR (A) |
| TT 0283 | DRIVE GEAR (B) |
| TT 0284 | DRIVE SHAFT |
| TT 0285 | DRIVE SHAFT SCREW |
| TT 0287 | PINION GEAR (B) |
| TT 0290 | PISTON ASSEMBLY |
| TT 0299 | ANTI-REVERSE RATCHET |
| TT 0300 | SET PLATE SCREW |
| TT 0301 | DOG SPRING |
| TT 0302 | SET PLATE |
| TT 0303 | DOG |
| Part Number | Part Description |
| TT 0002A | HANDLE BOLT PLATE |
| TT 0003A | HANDLE BOLT |
| TT 0006A | DRIVE SHAFT WASHER |
| TT 0013 TGT0464 | """C"" LOCK" |
| TT 0036 | CROSS PIN |
| TT 0036C | CROSS PIN (B) |
| TT 0040 RD 8341 | PRELOAD SPRING H |
| TT 0041C | INNER PRE LOAD WASHER |
| TT 0045B | PRESSURE PLATE SPRING |
| TT 0091 | PUSH BUTTON SHIELD |
| TT 0092 | HANDLE BOLT PLATE SCREW |
| TT 0093 TGT0970 | SLIDE PLATE SPRING |
| TT 0094 | SLIDE PLATE |
| TT 0096 BNT0425 | """E"" LOCK" |
| TT 0102 | FRICTION WASHER (A) |
| TT 0103 | FRICTION WASHER (B) |
| TT 0105 | GEAR SELECT CROSS BAR |
| TT 0106 | CROSS BAR STOP |
| TT 0107 | DRIVE SHAFT SPRING B |
| TT 0108 | DRIVE SHAFT SPRING |
| TT 0110 | "E" LOCK |
| TT 0114A | LEVER SHAFT BODY WASHER |
| TT 0146 TLD0230 | WRENCH |
| TT 0156 | FRICTION SHOE SPRING |
| TT 0249 | DRIVE SHAFT SHIELD |
| TT 0255 | PRE PROGRAM DIAL |
| TT 0256 | DIAL CLICK SHOE |
| TT 0257 | DIAL CLICK |
| TT 0258 | DIAL WASHER |
| TT 0259 | LEVER THRUST RING A |
| TT 0261 | LEVER THRUST RING B-1 |
| TT 0267 | RIGHT SIDE PLATE (B) SCREW |
| TT 0269 | PRE PROGRAM KEY |
| TT 0270 | PRE PROGRAM KEY PIN |
| TT 0271 | PRE PROGRAM SCREW |
| TT 0274 | PLUNGER CROSS PIN (B) |
| TT 0275 | PLUNGER CROSS PIN SUPPORT |
| TT 0276 | CROSS PIN SUPPORT SPRING |
| TT 0279 | HOLDER NUT |
| TT 0280 | DRIVE SHAFT HOLDER |
| TT 0281 | LOCK PIN |
| TT 0282 | DRIVE GEAR (A) |
| TT 0283 | DRIVE GEAR (B) |
| TT 0284 | DRIVE SHAFT |
| TT 0285 | DRIVE SHAFT SCREW |
| TT 0287 | PINION GEAR (B) |
| TT 0290 | PISTON ASSEMBLY |
| TT 0299 | ANTI-REVERSE RATCHET |
| TT 0300 | SET PLATE SCREW |
| TT 0301 | DOG SPRING |
| TT 0302 | SET PLATE |
| TT 0303 | DOG |
