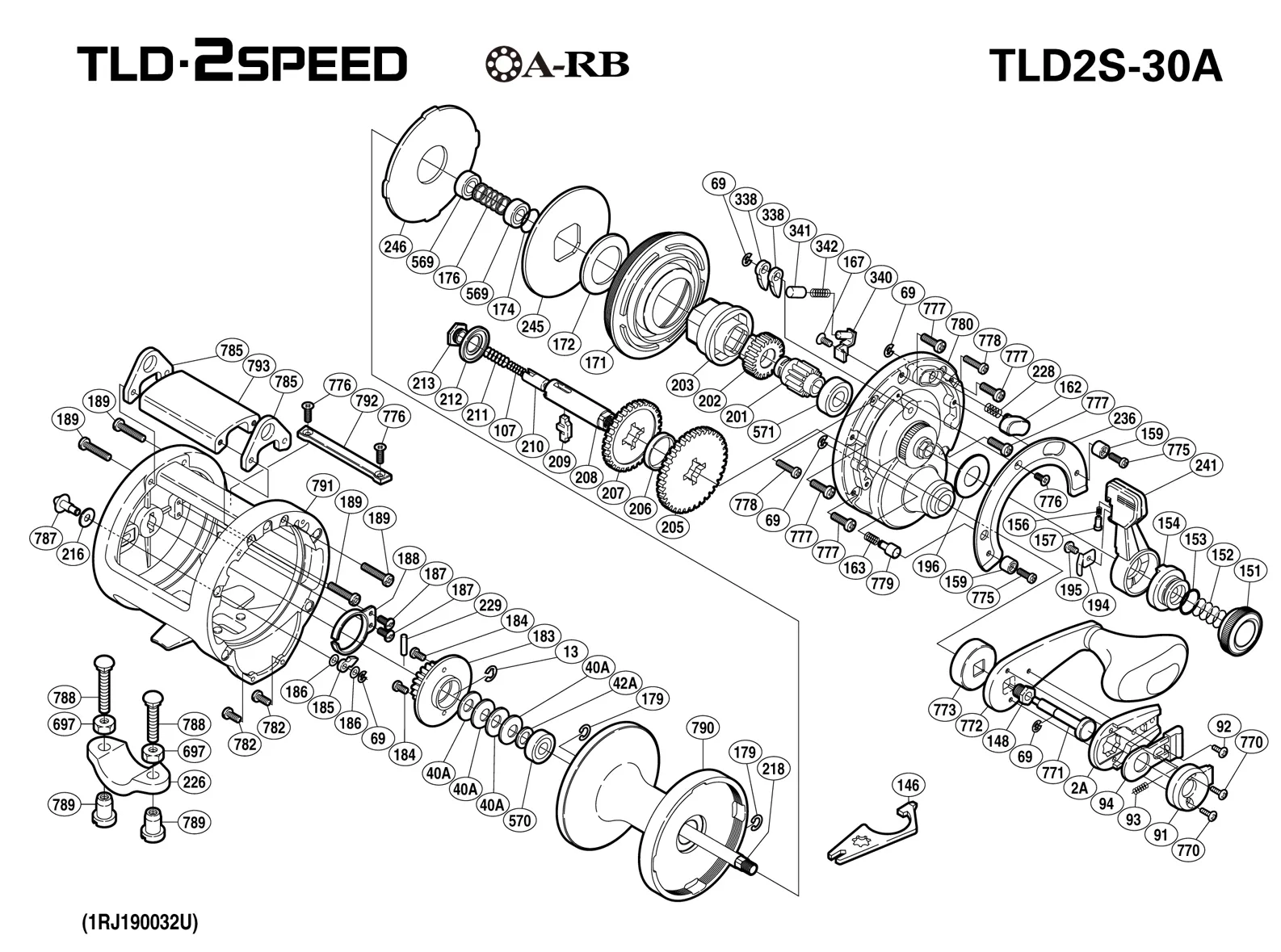

TLD II - TLD30IIA: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TT 0002A | HANDLE BOLT PLATE |
| TT 0013 TGT0464 | """C"" LOCK" |
| TT 0040A BNT1811 | PRE LOAD SPRING |
| TT 0042A TGT0828 | BEARING THRUST WASHER |
| TT 0069 | |
| TT 0091 | PUSH BUTTON SHIELD |
| TT 0092 | HANDLE BOLT PLATE SCREW |
| TT 0093 TGT0970 | SLIDE PLATE SPRING |
| TT 0094 | SLIDE PLATE |
| TT 0107 | DRIVE SHAFT SPRING B |
| TT 0146 TLD0230 | WRENCH |
| TT 0148 | HANDLE BOLT |
| TT 0151 | PRE-PROGRAM DIAL |
| TT 0152 | DIAL SPRING |
| TT 0153 | BODY "O" SEAL |
| TT 0154 TGT0786 | LEVER SHAFT BODY |
| TT 0156 | FRICTION SHOE SPRING |
| TT 0157 | FRICTION SHOE |
| TT 0159 | BOLT SHIELD |
| TT 0162 | STRIKE STOP |
| TT 0163 | PRESSURE SPRING |
| TT 0167 | GUARD SCREW |
| TT 0171 | |
| TT 0172 | PRE-LOAD SPRING A |
| TT 0174 | SEAL LOCK |
| TT 0176 TGT0894 | PRESSURE RELEASE SPRING |
| TT 0179 | C LOCK |
| TT 0183 | CLICK GEAR |
| TT 0184 | CLICK GEAR SCREW |
| TT 0185 | CLICK PAWL |
| TT 0186 BNT0687 | SPACER (B) |
| TT 0187 | CLICK SPRING SCREW |
| TT 0188 | CLICK SPRING |
| TT 0189 | CROSS BAR BOLT (A) |
| TT 0194 | LEVER CLICK SPRING |
| TT 0195 TGT0539 | CLICK SPRING SCREW |
| TT 0196 TGT0795 | LEVER THRUST WASHER |
| TT 0201 | PINION GEAR (A) |
| TT 0202 | PINION GEAR (B) |
| TT 0203 | PINION GUARD |
| TT 0205 | DRIVE GEAR (A) |
| TT 0206 | FRICTION WASHER (C) |
| Part Number | Part Description |
| TT 0002A | HANDLE BOLT PLATE |
| TT 0013 TGT0464 | """C"" LOCK" |
| TT 0040A BNT1811 | PRE LOAD SPRING |
| TT 0042A TGT0828 | BEARING THRUST WASHER |
| TT 0069 | |
| TT 0091 | PUSH BUTTON SHIELD |
| TT 0092 | HANDLE BOLT PLATE SCREW |
| TT 0093 TGT0970 | SLIDE PLATE SPRING |
| TT 0094 | SLIDE PLATE |
| TT 0107 | DRIVE SHAFT SPRING B |
| TT 0146 TLD0230 | WRENCH |
| TT 0148 | HANDLE BOLT |
| TT 0151 | PRE-PROGRAM DIAL |
| TT 0152 | DIAL SPRING |
| TT 0153 | BODY "O" SEAL |
| TT 0154 TGT0786 | LEVER SHAFT BODY |
| TT 0156 | FRICTION SHOE SPRING |
| TT 0157 | FRICTION SHOE |
| TT 0159 | BOLT SHIELD |
| TT 0162 | STRIKE STOP |
| TT 0163 | PRESSURE SPRING |
| TT 0167 | GUARD SCREW |
| TT 0171 | |
| TT 0172 | PRE-LOAD SPRING A |
| TT 0174 | SEAL LOCK |
| TT 0176 TGT0894 | PRESSURE RELEASE SPRING |
| TT 0179 | C LOCK |
| TT 0183 | CLICK GEAR |
| TT 0184 | CLICK GEAR SCREW |
| TT 0185 | CLICK PAWL |
| TT 0186 BNT0687 | SPACER (B) |
| TT 0187 | CLICK SPRING SCREW |
| TT 0188 | CLICK SPRING |
| TT 0189 | CROSS BAR BOLT (A) |
| TT 0194 | LEVER CLICK SPRING |
| TT 0195 TGT0539 | CLICK SPRING SCREW |
| TT 0196 TGT0795 | LEVER THRUST WASHER |
| TT 0201 | PINION GEAR (A) |
| TT 0202 | PINION GEAR (B) |
| TT 0203 | PINION GUARD |
| TT 0205 | DRIVE GEAR (A) |
| TT 0206 | FRICTION WASHER (C) |
