TLD II - TLD50IILRSA
TLD II

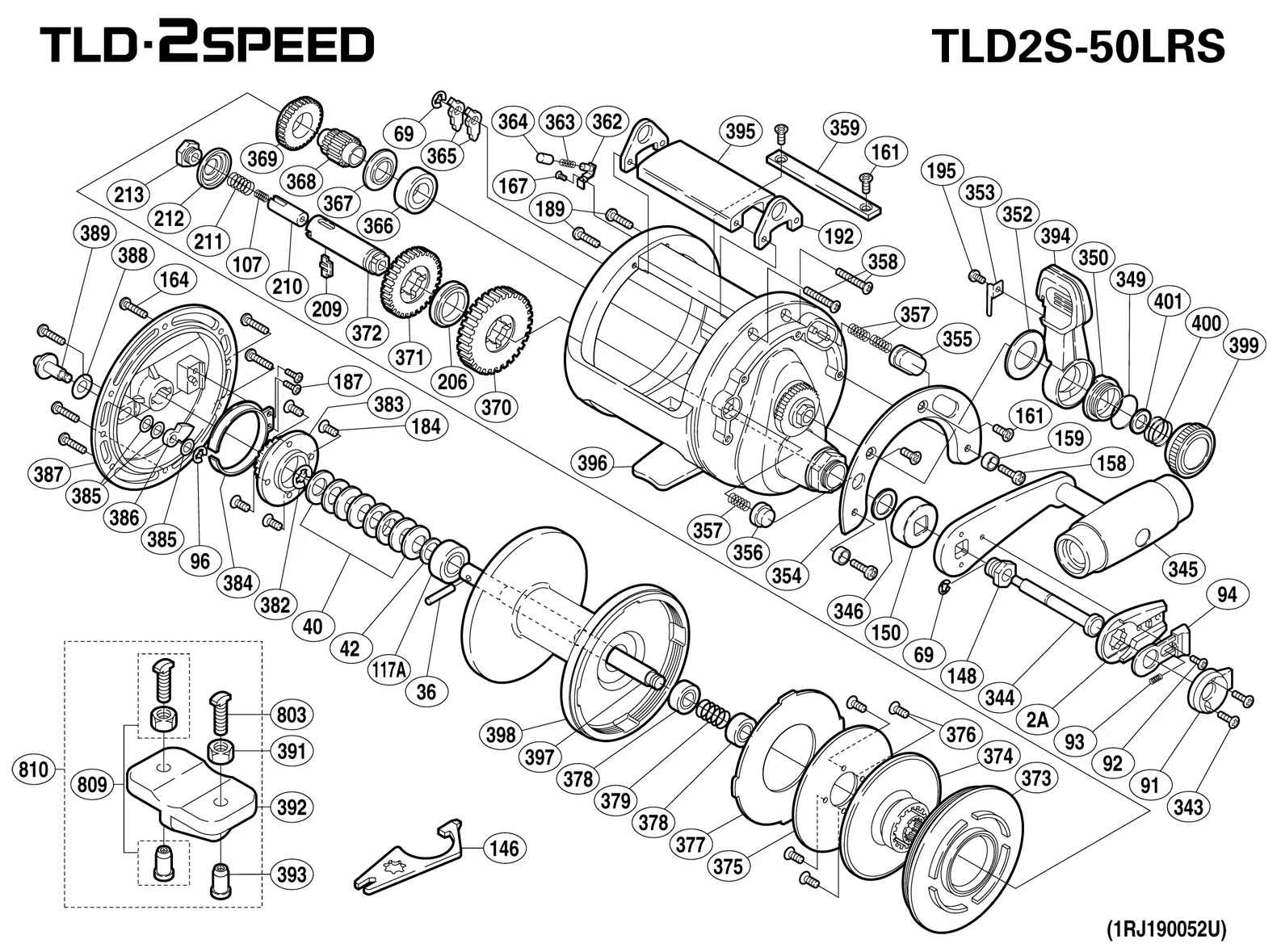

TLD II - TLD50IILRSA: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TT 0002A | HANDLE BOLT PLATE |
| TT 0036 | CROSS PIN |
| TT 0040 RD 8341 | PRELOAD SPRING H |
| TT 0042 | BEARING THRUST WASHER |
| TT 0069 | |
| TT 0091 | PUSH BUTTON SHIELD |
| TT 0092 | HANDLE BOLT PLATE SCREW |
| TT 0093 TGT0970 | SLIDE PLATE SPRING |
| TT 0094 | SLIDE PLATE |
| TT 0096 BNT0425 | """E"" LOCK" |
| TT 0107 | DRIVE SHAFT SPRING B |
| TT 0146 TLD0230 | WRENCH |
| TT 0148 | HANDLE BOLT |
| TT 0159 | BOLT SHIELD |
| TT 0167 | GUARD SCREW |
| TT 0184 | CLICK GEAR SCREW |
| TT 0187 | CLICK SPRING SCREW |
| TT 0189 | CROSS BAR BOLT (A) |
| TT 0195 TGT0539 | CLICK SPRING SCREW |
| TT 0206 | FRICTION WASHER (C) |
| TT 0209 | GEAR SELECT CROSS BAR |
| TT 0210 | CROSS BAR STOP |
| TT 0211 | DRIVE SHAFT SPRING |
| TT 0212 | FRICTION WASHER (A) |
| TT 0213 | DRIVE SHAFT SCREW |
| TT 0346 | FRICTION WASHER |
| TT 0349 BNT3076 | "BODY ""O"" SEAL" |
| TT 0350 | LEVER SHAFT BODY |
| TT 0352 | LEVER THRUST WASHER |
| TT 0353 | LEVER CLICK SPRING |
| TT 0354 | LEVER QUADRANT |
| TT 0355 | STRIKE STOP |
| TT 0356 | FREE SPOOL DETENT |
| TT 0357 | |
| TT 0362 | GUARD AGAINST DOG |
| TT 0363 | DOG SPRING |
| TT 0364 | DOG SPRING GUIDE |
| TT 0365 | DOG |
| TT 0367 | PRE LOAD WASHER |
| TT 0368 | PINION GEAR (A) |
| TT 0369 | PINION GEAR (B) |
| TT 0370 | DRIVE GEAR (A) |
| Part Number | Part Description |
| TT 0002A | HANDLE BOLT PLATE |
| TT 0036 | CROSS PIN |
| TT 0040 RD 8341 | PRELOAD SPRING H |
| TT 0042 | BEARING THRUST WASHER |
| TT 0069 | |
| TT 0091 | PUSH BUTTON SHIELD |
| TT 0092 | HANDLE BOLT PLATE SCREW |
| TT 0093 TGT0970 | SLIDE PLATE SPRING |
| TT 0094 | SLIDE PLATE |
| TT 0096 BNT0425 | """E"" LOCK" |
| TT 0107 | DRIVE SHAFT SPRING B |
| TT 0146 TLD0230 | WRENCH |
| TT 0148 | HANDLE BOLT |
| TT 0159 | BOLT SHIELD |
| TT 0167 | GUARD SCREW |
| TT 0184 | CLICK GEAR SCREW |
| TT 0187 | CLICK SPRING SCREW |
| TT 0189 | CROSS BAR BOLT (A) |
| TT 0195 TGT0539 | CLICK SPRING SCREW |
| TT 0206 | FRICTION WASHER (C) |
| TT 0209 | GEAR SELECT CROSS BAR |
| TT 0210 | CROSS BAR STOP |
| TT 0211 | DRIVE SHAFT SPRING |
| TT 0212 | FRICTION WASHER (A) |
| TT 0213 | DRIVE SHAFT SCREW |
| TT 0346 | FRICTION WASHER |
| TT 0349 BNT3076 | "BODY ""O"" SEAL" |
| TT 0350 | LEVER SHAFT BODY |
| TT 0352 | LEVER THRUST WASHER |
| TT 0353 | LEVER CLICK SPRING |
| TT 0354 | LEVER QUADRANT |
| TT 0355 | STRIKE STOP |
| TT 0356 | FREE SPOOL DETENT |
| TT 0357 | |
| TT 0362 | GUARD AGAINST DOG |
| TT 0363 | DOG SPRING |
| TT 0364 | DOG SPRING GUIDE |
| TT 0365 | DOG |
| TT 0367 | PRE LOAD WASHER |
| TT 0368 | PINION GEAR (A) |
| TT 0369 | PINION GEAR (B) |
| TT 0370 | DRIVE GEAR (A) |
