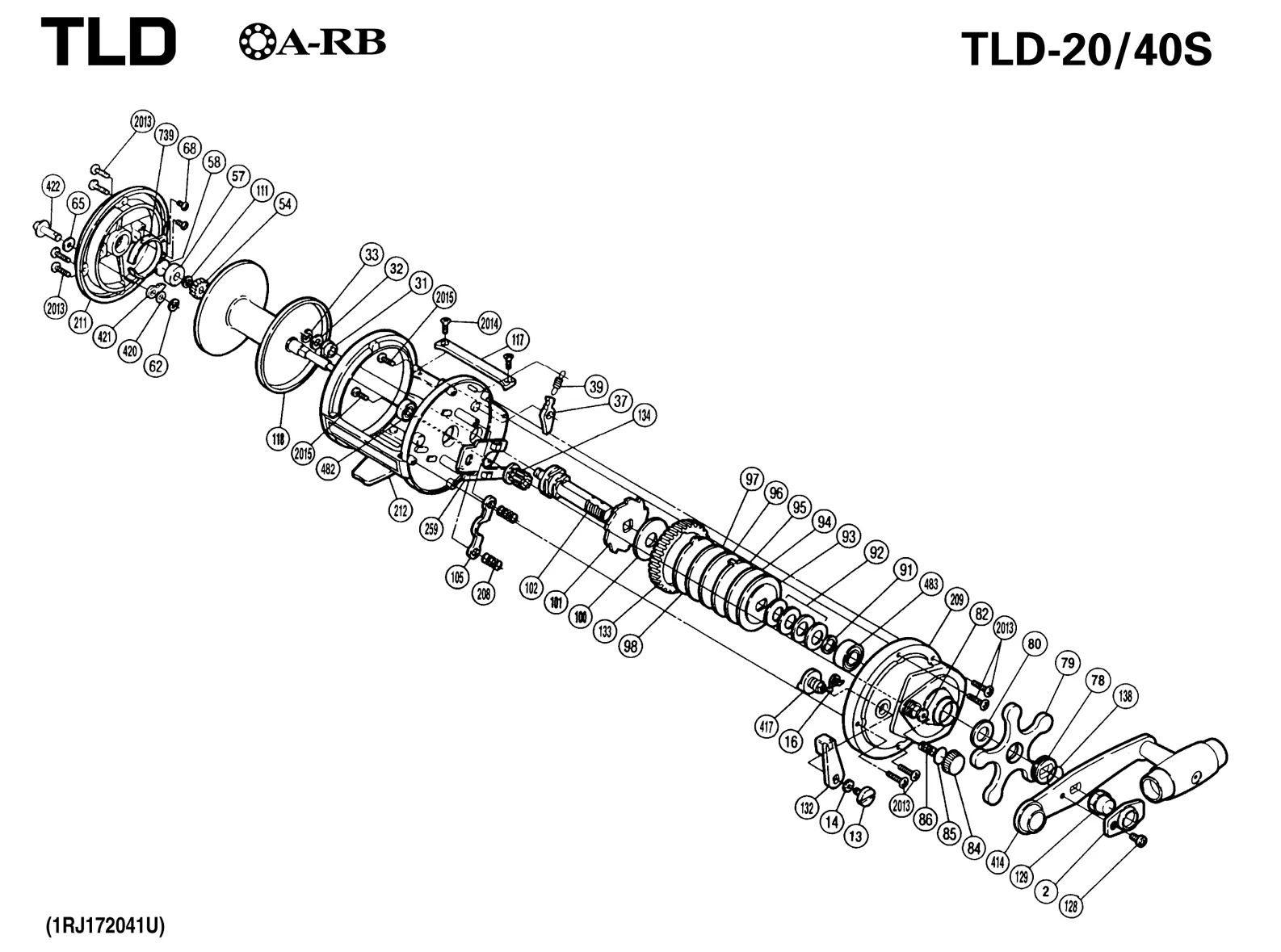

TLD STAR - TLD2040S: schema di montaggio (esploso) e parti di ricambio.

Part NumberPart Description
TGT0002
TGT0013CLUTCH LEVER SCREW
TGT0014 RD 1008LOCK WASHER
TGT0016CLUTCH SPRING
TGT0031 BNT1229DRIVE SHAFT BUSHING
TGT0032SPACER
TGT0033DRIVE SHAFT RETAINER
TGT0037ANTI-REVERSE PAWL
TGT0039ANTI-REVERSE PAWL SPRING
TGT0054CLICK GEAR
TGT0057SPOOL SHAFT BUSHING "B"
TGT0058SPACER B
TGT0062CLICK PAWL RETAINER
TGT0065SPACER A
TGT0068 TT 0187CLICK SPRING SCREW
TGT0078HANDLE WASHER
TGT0079STAR DRAG
TGT0080STAR DRAG WASHER
TGT0081RIGHT SIDE PLATE SCREW (A)
TGT0082SPOOL SHAFT BUSHING
TGT0084CAST CONTROL CAP
TGT0085SPACER
TGT0086SPOOL TENSION SPRING
TGT0091BEARING THRUST WASHER
TGT0092DRAG SPRING WASHER
TGT0093KEY WASHER F
TGT0094DRAG WASHER D
TGT0095EARED WASHER E
TGT0096DRAG WASHER I
TGT0097KEY WASHER C
Part NumberPart Description
TGT0002
TGT0013CLUTCH LEVER SCREW
TGT0014 RD 1008LOCK WASHER
TGT0016CLUTCH SPRING
TGT0031 BNT1229DRIVE SHAFT BUSHING
TGT0032SPACER
TGT0033DRIVE SHAFT RETAINER
TGT0037ANTI-REVERSE PAWL
TGT0039ANTI-REVERSE PAWL SPRING
TGT0054CLICK GEAR
TGT0057SPOOL SHAFT BUSHING "B"
TGT0058SPACER B
TGT0062CLICK PAWL RETAINER
TGT0065SPACER A
TGT0068 TT 0187CLICK SPRING SCREW
TGT0078HANDLE WASHER
TGT0079STAR DRAG
TGT0080STAR DRAG WASHER
TGT0081RIGHT SIDE PLATE SCREW (A)
TGT0082SPOOL SHAFT BUSHING
TGT0084CAST CONTROL CAP
TGT0085SPACER
TGT0086SPOOL TENSION SPRING
TGT0091BEARING THRUST WASHER
TGT0092DRAG SPRING WASHER
TGT0093KEY WASHER F
TGT0094DRAG WASHER D
TGT0095EARED WASHER E
TGT0096DRAG WASHER I
TGT0097KEY WASHER C
