TLD - TLD20

TLD - TLD20

TLD

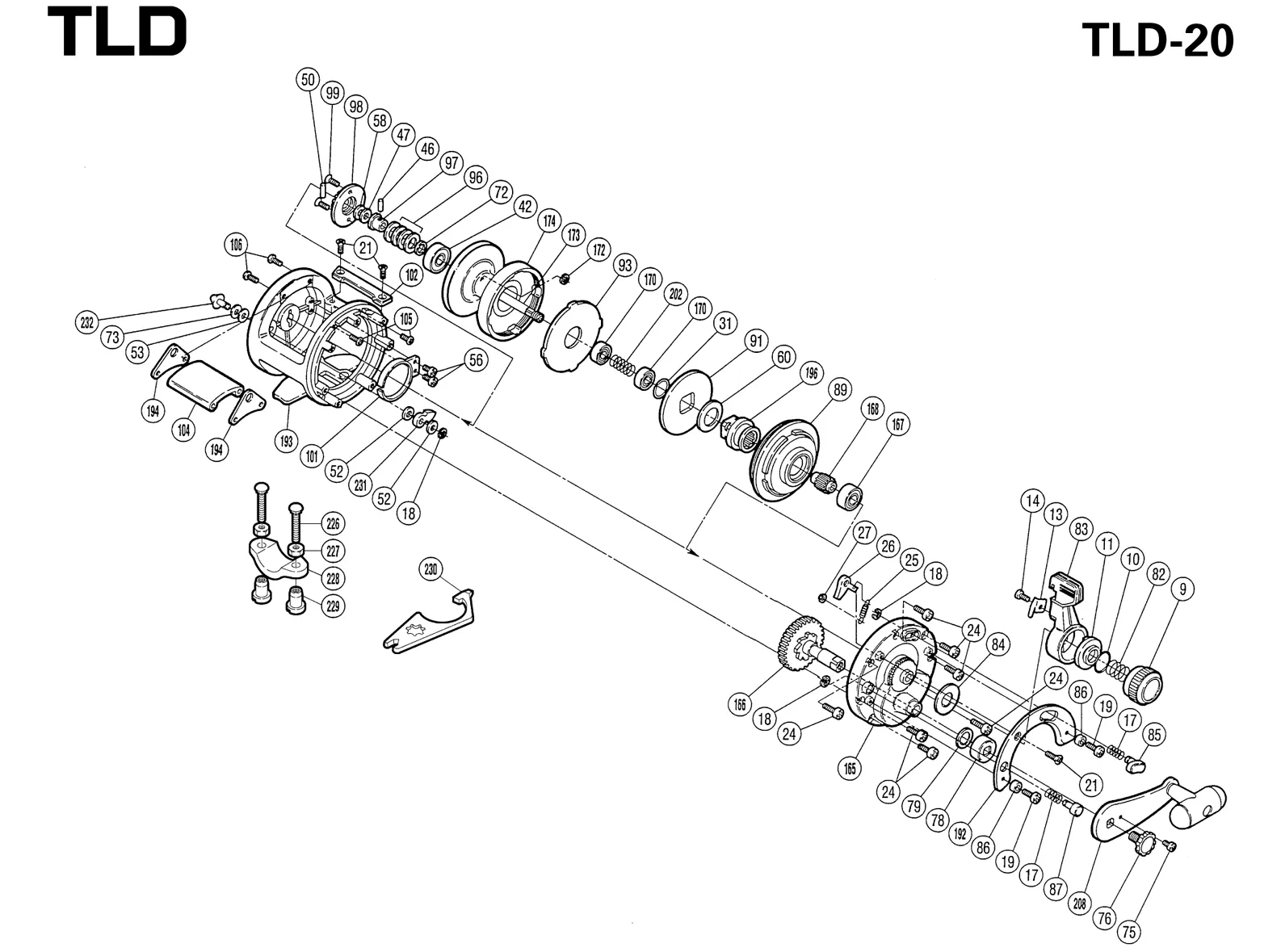

TLD - TLD20: schema di montaggio (esploso) e parti di ricambio.

Part NumberPart Description
TLD0009PRE-PROGRAM DIAL
TLD0010 TGT0438"BODY ""O"" SEAL"
TLD0011LEVER SHAFT BODY
TLD0013 TT 0194LEVER CLICK SPRING
TLD0014 TGT0539CLICK SPRING SCREW
TLD0017 TT 0163PRESSURE SPRING
TLD0018
TLD0019 TT 0158QUADRANT ANCHOR BOLT
TLD0021 TT 0161QUADRANT SCREW
TLD0024 TGT0081SIDE PLATE BOLT
TLD0025DOG SPRING
TLD0026DOG
TLD0027 BNT1227DOG SPRING RETAINER
TLD0031SEAL LOCK
TLD0042
TLD0046CROSS PIN A
TLD0047SPACER A
TLD0050CROSS PIN B
TLD0052 BNT0687CLICK PAWL WASHER
TLD0053
TLD0056 TT 0187CLICK SPRING SCREW
TLD0058SPACER B
TLD0060PRE-LOAD SPRING A
TLD0072
TLD0073CLICK BUTTON WASHER B
TLD0075HANDLE SCREW (B)
TLD0076HANDLE SCREW (A)
TLD0078GEAR SHAFT SHIELD
TLD0079GEAR SHAFT THRUST WASHER
TLD0082DIAL SPRING
TLD0083DRAG CONTROL LEVER
TLD0084LEVER THRUST RING
TLD0085 TT 0162STRIKE STOP
TLD0086 TT 0159BOLT SHIELD
Part NumberPart Description
TLD0009PRE-PROGRAM DIAL
TLD0010 TGT0438"BODY ""O"" SEAL"
TLD0011LEVER SHAFT BODY
TLD0013 TT 0194LEVER CLICK SPRING
TLD0014 TGT0539CLICK SPRING SCREW
TLD0017 TT 0163PRESSURE SPRING
TLD0018
TLD0019 TT 0158QUADRANT ANCHOR BOLT
TLD0021 TT 0161QUADRANT SCREW
TLD0024 TGT0081SIDE PLATE BOLT
TLD0025DOG SPRING
TLD0026DOG
TLD0027 BNT1227DOG SPRING RETAINER
TLD0031SEAL LOCK
TLD0042
TLD0046CROSS PIN A
TLD0047SPACER A
TLD0050CROSS PIN B
TLD0052 BNT0687CLICK PAWL WASHER
TLD0053
TLD0056 TT 0187CLICK SPRING SCREW
TLD0058SPACER B
TLD0060PRE-LOAD SPRING A
TLD0072
TLD0073CLICK BUTTON WASHER B
TLD0075HANDLE SCREW (B)
TLD0076HANDLE SCREW (A)
TLD0078GEAR SHAFT SHIELD
TLD0079GEAR SHAFT THRUST WASHER
TLD0082DIAL SPRING
TLD0083DRAG CONTROL LEVER
TLD0084LEVER THRUST RING
TLD0085 TT 0162STRIKE STOP
TLD0086 TT 0159BOLT SHIELD
