TORSA - TS30
TORSA

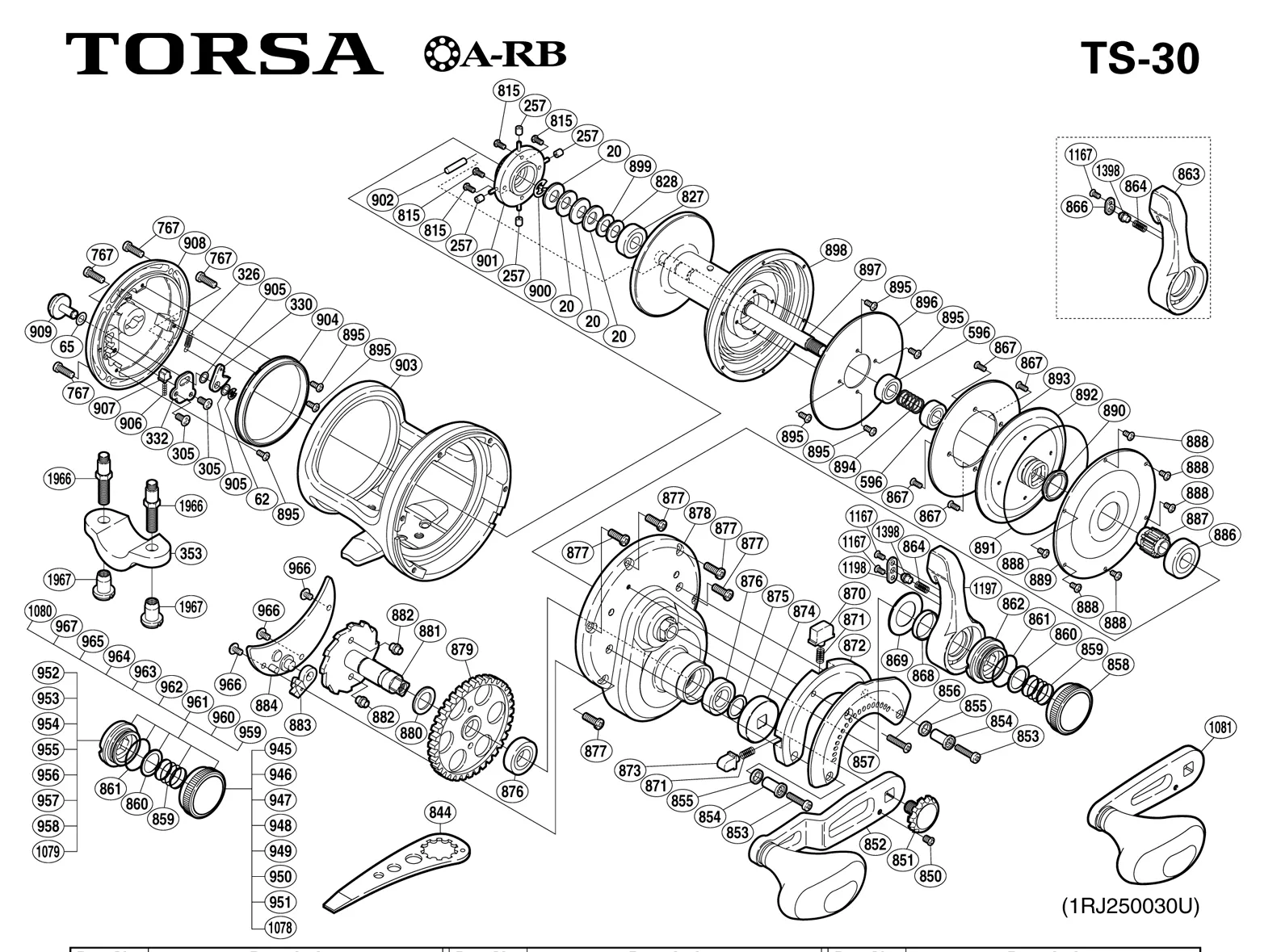

TORSA - TS30: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0257 | BRAKE COLLAR (BLUE) |
| TGT0305 | MULTI-PURPOSE SCREW |
| TGT0326 | CLICK PAWL SPRING |
| TGT0330 | CLICK PAWL |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0353 | ROD CLAMP (ACCESSORY) |
| TGT0596 | BALL BEARING (ARB) |
| TGT0767 | LEFT SIDE PLATE SCREW |
| TGT0815 BNT1636 | SCREW |
| TGT0827 TT 0570 | BALL BEARING |
| TGT0828 | BEARING THRUST WASHER |
| TGT0850 | SCREW |
| TGT0851 | HANDLE BOLT |
| TGT0852 | HANDLE |
| TGT0853 | SCREW |
| TGT0854 | SCREW SHIELD |
| TGT0855 | QUADRANT SUPPORT |
| TGT0856 | SCREW |
| TGT0857 | LEVER QUADRANT |
| TGT0858 | PRE-PROGRAM DIAL (LRS) |
| TGT0859 | DIAL SPRING |
| TGT0860 | WASHER |
| TGT0861 BNT3076 | O RING |
| TGT0862 | LEVER SHAFT BODY (LRS) |
| TGT0863 TGT1197 | DRAG CONTROL LEVER |
| TGT0864 | YOKE SPRING |
| TGT0865 | LEVER CLICK |
| TGT0866 TGT1198 | LEVER CLICK COVER |
| TGT0867 | SCREW |
| TGT0868 | LEVER THRUST RING |
| TGT0869 | WASHER |
| TGT0870 | STRIKE STOP |
| TGT0871 | PRESSURE SPRING |
| TGT0872 | RIGHT SIDE PLATE B |
| TGT0873 | FREE SPOOL DETENT |
| TGT0874 | GEAR SHAFT SHIELD |
| TGT0875 | WASHER |
| TGT0876 | BALL BEARING MADE IN JAPAN |
| TGT0877 | SCREW |
| TGT0878 | RIGHT SIDE PLATE |
| TGT0879 | DRIVE GEAR |
| TGT0880 | WASHER |
| TGT0881 | ANTI-REVERSE RATCHET |
| TGT0882 | ANTI-REVERSE RATCHET PIN |
| TGT0883 | ANTI-REVERSE PAWL |
| TGT0884 | SET PLATE |
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0257 | BRAKE COLLAR (BLUE) |
| TGT0305 | MULTI-PURPOSE SCREW |
| TGT0326 | CLICK PAWL SPRING |
| TGT0330 | CLICK PAWL |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0353 | ROD CLAMP (ACCESSORY) |
| TGT0596 | BALL BEARING (ARB) |
| TGT0767 | LEFT SIDE PLATE SCREW |
| TGT0815 BNT1636 | SCREW |
| TGT0827 TT 0570 | BALL BEARING |
| TGT0828 | BEARING THRUST WASHER |
| TGT0850 | SCREW |
| TGT0851 | HANDLE BOLT |
| TGT0852 | HANDLE |
| TGT0853 | SCREW |
| TGT0854 | SCREW SHIELD |
| TGT0855 | QUADRANT SUPPORT |
| TGT0856 | SCREW |
| TGT0857 | LEVER QUADRANT |
| TGT0858 | PRE-PROGRAM DIAL (LRS) |
| TGT0859 | DIAL SPRING |
| TGT0860 | WASHER |
| TGT0861 BNT3076 | O RING |
| TGT0862 | LEVER SHAFT BODY (LRS) |
| TGT0863 TGT1197 | DRAG CONTROL LEVER |
| TGT0864 | YOKE SPRING |
| TGT0865 | LEVER CLICK |
| TGT0866 TGT1198 | LEVER CLICK COVER |
| TGT0867 | SCREW |
| TGT0868 | LEVER THRUST RING |
| TGT0869 | WASHER |
| TGT0870 | STRIKE STOP |
| TGT0871 | PRESSURE SPRING |
| TGT0872 | RIGHT SIDE PLATE B |
| TGT0873 | FREE SPOOL DETENT |
| TGT0874 | GEAR SHAFT SHIELD |
| TGT0875 | WASHER |
| TGT0876 | BALL BEARING MADE IN JAPAN |
| TGT0877 | SCREW |
| TGT0878 | RIGHT SIDE PLATE |
| TGT0879 | DRIVE GEAR |
| TGT0880 | WASHER |
| TGT0881 | ANTI-REVERSE RATCHET |
| TGT0882 | ANTI-REVERSE RATCHET PIN |
| TGT0883 | ANTI-REVERSE PAWL |
| TGT0884 | SET PLATE |
