TORSA - TS40
TORSA

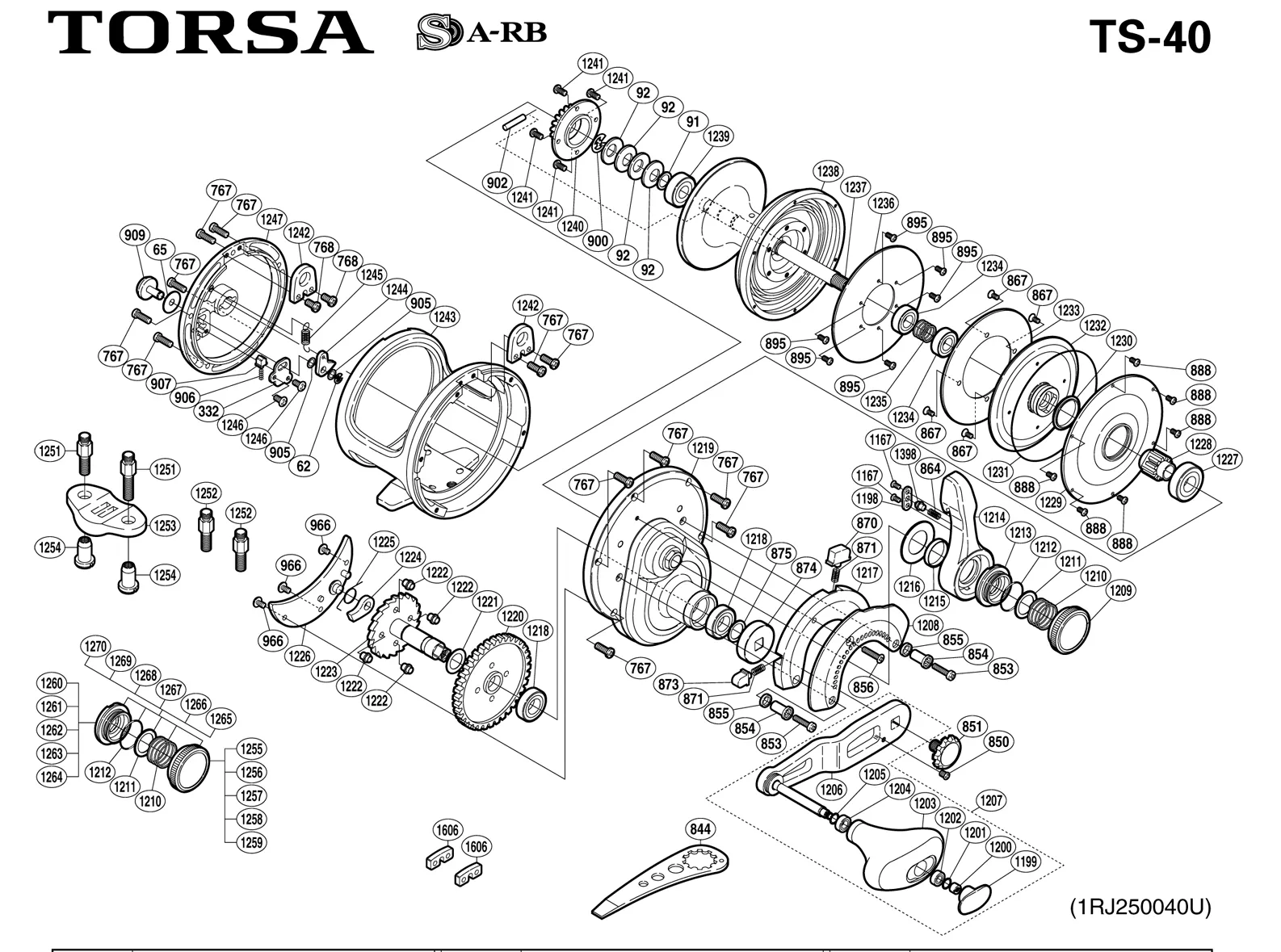

TORSA - TS40: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0091 | BEARING THRUST WASHER |
| TGT0092 | DRAG SPRING WASHER |
| TGT0257 | BRAKE COLLAR (BLUE) |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0767 | LEFT SIDE PLATE SCREW |
| TGT0768 | SIDE PLATE SCREW |
| TGT0844 | 05TYR20 WRENCH |
| TGT0850 | SCREW |
| TGT0851 | HANDLE BOLT |
| TGT0853 | SCREW |
| TGT0854 | SCREW SHIELD |
| TGT0855 | QUADRANT SUPPORT |
| TGT0856 | SCREW |
| TGT0864 | YOKE SPRING |
| TGT0865 | LEVER CLICK |
| TGT0867 | SCREW |
| TGT0870 | STRIKE STOP |
| TGT0871 | PRESSURE SPRING |
| TGT0873 | FREE SPOOL DETENT |
| TGT0874 | GEAR SHAFT SHIELD |
| TGT0875 | WASHER |
| TGT0888 | SCREW |
| TGT0895 | SCREW |
| TGT0900 | E LOCK |
| TGT0902 | CROSS PIN |
| TGT0905 | SPACER |
| TGT0906 | CLICK SPRING |
| TGT0907 | CLICK SPRING HOLDER |
| TGT0909 | CLICK BUTTON |
| TGT0966 | SCREW |
| TGT1167 | SCREW |
| TGT1198 | LEVER CLICK COVER |
| TGT1199 | HANDLE KNOB SEAL |
| TGT1200 | |
| TGT1201 RD 8171 | HANDLE KNOB ADJUST WASHER |
| TGT1202 | BALL BEARING MADE IN JAPAN |
| TGT1203 | HANDLE KNOB |
| TGT1204 BNT3819 | BALL BEARING |
| TGT1205 RD 8169 | HANDLE KNOB ADJUST WASHER |
| TGT1206 | HANDLE SHANK ASSEMBLY |
| TGT1207 | HANDLE ASSEMBLY |
| TGT1208 | LEVER QUADRANT |
| TGT1209 | PRE-PROGRAM DIAL (LRS) |
| TGT1210 | DIAL SPRING |
| TGT1211 | WASHER |
| TGT1212 | O RING |
| TGT1213 | LEVER SHAFT BODY (LRS) |
| TGT1214 | DRAG CONTROL LEVER |
| TGT1215 | LEVER THRUST RING |
| Part Number | Part Description |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0091 | BEARING THRUST WASHER |
| TGT0092 | DRAG SPRING WASHER |
| TGT0257 | BRAKE COLLAR (BLUE) |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0767 | LEFT SIDE PLATE SCREW |
| TGT0768 | SIDE PLATE SCREW |
| TGT0844 | 05TYR20 WRENCH |
| TGT0850 | SCREW |
| TGT0851 | HANDLE BOLT |
| TGT0853 | SCREW |
| TGT0854 | SCREW SHIELD |
| TGT0855 | QUADRANT SUPPORT |
| TGT0856 | SCREW |
| TGT0864 | YOKE SPRING |
| TGT0865 | LEVER CLICK |
| TGT0867 | SCREW |
| TGT0870 | STRIKE STOP |
| TGT0871 | PRESSURE SPRING |
| TGT0873 | FREE SPOOL DETENT |
| TGT0874 | GEAR SHAFT SHIELD |
| TGT0875 | WASHER |
| TGT0888 | SCREW |
| TGT0895 | SCREW |
| TGT0900 | E LOCK |
| TGT0902 | CROSS PIN |
| TGT0905 | SPACER |
| TGT0906 | CLICK SPRING |
| TGT0907 | CLICK SPRING HOLDER |
| TGT0909 | CLICK BUTTON |
| TGT0966 | SCREW |
| TGT1167 | SCREW |
| TGT1198 | LEVER CLICK COVER |
| TGT1199 | HANDLE KNOB SEAL |
| TGT1200 | |
| TGT1201 RD 8171 | HANDLE KNOB ADJUST WASHER |
| TGT1202 | BALL BEARING MADE IN JAPAN |
| TGT1203 | HANDLE KNOB |
| TGT1204 BNT3819 | BALL BEARING |
| TGT1205 RD 8169 | HANDLE KNOB ADJUST WASHER |
| TGT1206 | HANDLE SHANK ASSEMBLY |
| TGT1207 | HANDLE ASSEMBLY |
| TGT1208 | LEVER QUADRANT |
| TGT1209 | PRE-PROGRAM DIAL (LRS) |
| TGT1210 | DIAL SPRING |
| TGT1211 | WASHER |
| TGT1212 | O RING |
| TGT1213 | LEVER SHAFT BODY (LRS) |
| TGT1214 | DRAG CONTROL LEVER |
| TGT1215 | LEVER THRUST RING |
