TR - TRN100G
TR

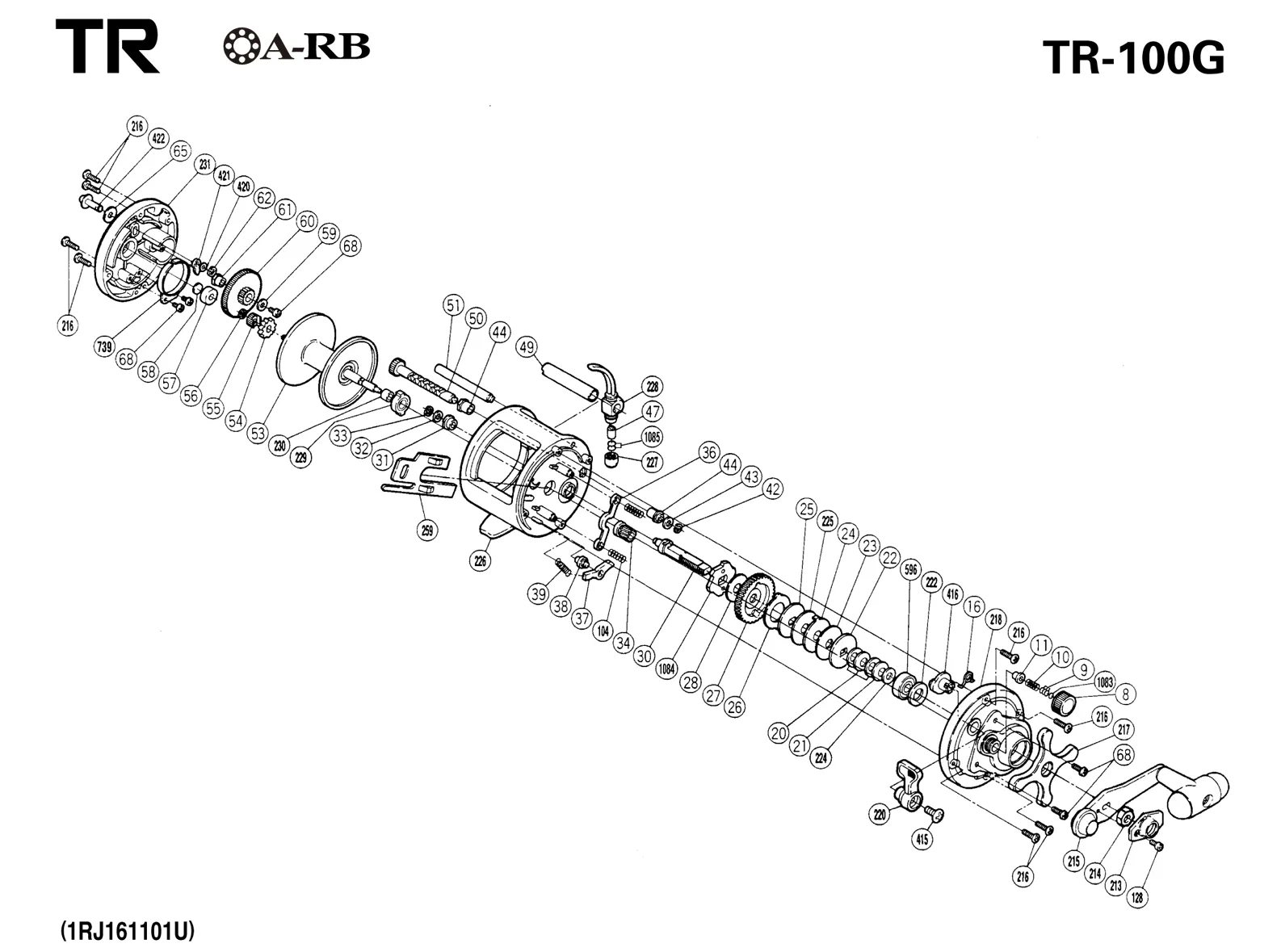

TR - TRN100G: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0008 | CAST CONTROL CAP |
| TGT0009 | SPACER "A" |
| TGT0010 | SPOOL TENSION SPRING |
| TGT0011 | SPOOL SHAFT BUSHING "A" |
| TGT0016 | CLUTCH SPRING |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0021 | DRAG SPRING WASHER G |
| TGT0022 | KEY WASHER "F" |
| TGT0023 | |
| TGT0024 | EARED WASHER "E" |
| TGT0025 | KEY WASHER "C" |
| TGT0026 | EARED WASHER B |
| TGT0027 | DRIVE GEAR |
| TGT0028 | DRIVE SHAFT WASHER |
| TGT0030 | DRIVE SHAFT |
| TGT0031 BNT1229 | DRIVE SHAFT BUSHING |
| TGT0032 | SPACER |
| TGT0033 | DRIVE SHAFT RETAINER |
| TGT0034 | PINION GEAR |
| TGT0036 TGT0105 | YOKE |
| TGT0037 | ANTI-REVERSE PAWL |
| TGT0038 | PAWL SUPPORTER |
| TGT0039 | ANTI-REVERSE PAWL SPRING |
| TGT0042 | WORM SHAFT RETAINER |
| TGT0043 TT 0385 | WORM SHAFT HOLDER WASHER |
| TGT0044 | WORM BUSHING |
| TGT0047 | LINE GUIDE PAWL |
| TGT0049 | LEVEL WIND GUARD |
| TGT0050 TLD0147 | WORM SHAFT |
| TGT0051 TLD0146 | STABILIZER BAR |
| TGT0053 | SPOOL |
| TGT0054 | CLICK GEAR |
| TGT0055 | IDLE GEAR A |
| TGT0056 BNT0675 | "IDLE GEAR ""A"" RETAINER" |
| TGT0057 | SPOOL SHAFT BUSHING "B" |
| Part Number | Part Description |
| TGT0008 | CAST CONTROL CAP |
| TGT0009 | SPACER "A" |
| TGT0010 | SPOOL TENSION SPRING |
| TGT0011 | SPOOL SHAFT BUSHING "A" |
| TGT0016 | CLUTCH SPRING |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0021 | DRAG SPRING WASHER G |
| TGT0022 | KEY WASHER "F" |
| TGT0023 | |
| TGT0024 | EARED WASHER "E" |
| TGT0025 | KEY WASHER "C" |
| TGT0026 | EARED WASHER B |
| TGT0027 | DRIVE GEAR |
| TGT0028 | DRIVE SHAFT WASHER |
| TGT0030 | DRIVE SHAFT |
| TGT0031 BNT1229 | DRIVE SHAFT BUSHING |
| TGT0032 | SPACER |
| TGT0033 | DRIVE SHAFT RETAINER |
| TGT0034 | PINION GEAR |
| TGT0036 TGT0105 | YOKE |
| TGT0037 | ANTI-REVERSE PAWL |
| TGT0038 | PAWL SUPPORTER |
| TGT0039 | ANTI-REVERSE PAWL SPRING |
| TGT0042 | WORM SHAFT RETAINER |
| TGT0043 TT 0385 | WORM SHAFT HOLDER WASHER |
| TGT0044 | WORM BUSHING |
| TGT0047 | LINE GUIDE PAWL |
| TGT0049 | LEVEL WIND GUARD |
| TGT0050 TLD0147 | WORM SHAFT |
| TGT0051 TLD0146 | STABILIZER BAR |
| TGT0053 | SPOOL |
| TGT0054 | CLICK GEAR |
| TGT0055 | IDLE GEAR A |
| TGT0056 BNT0675 | "IDLE GEAR ""A"" RETAINER" |
| TGT0057 | SPOOL SHAFT BUSHING "B" |
