TRINIDAD - TN10A
TRINIDAD

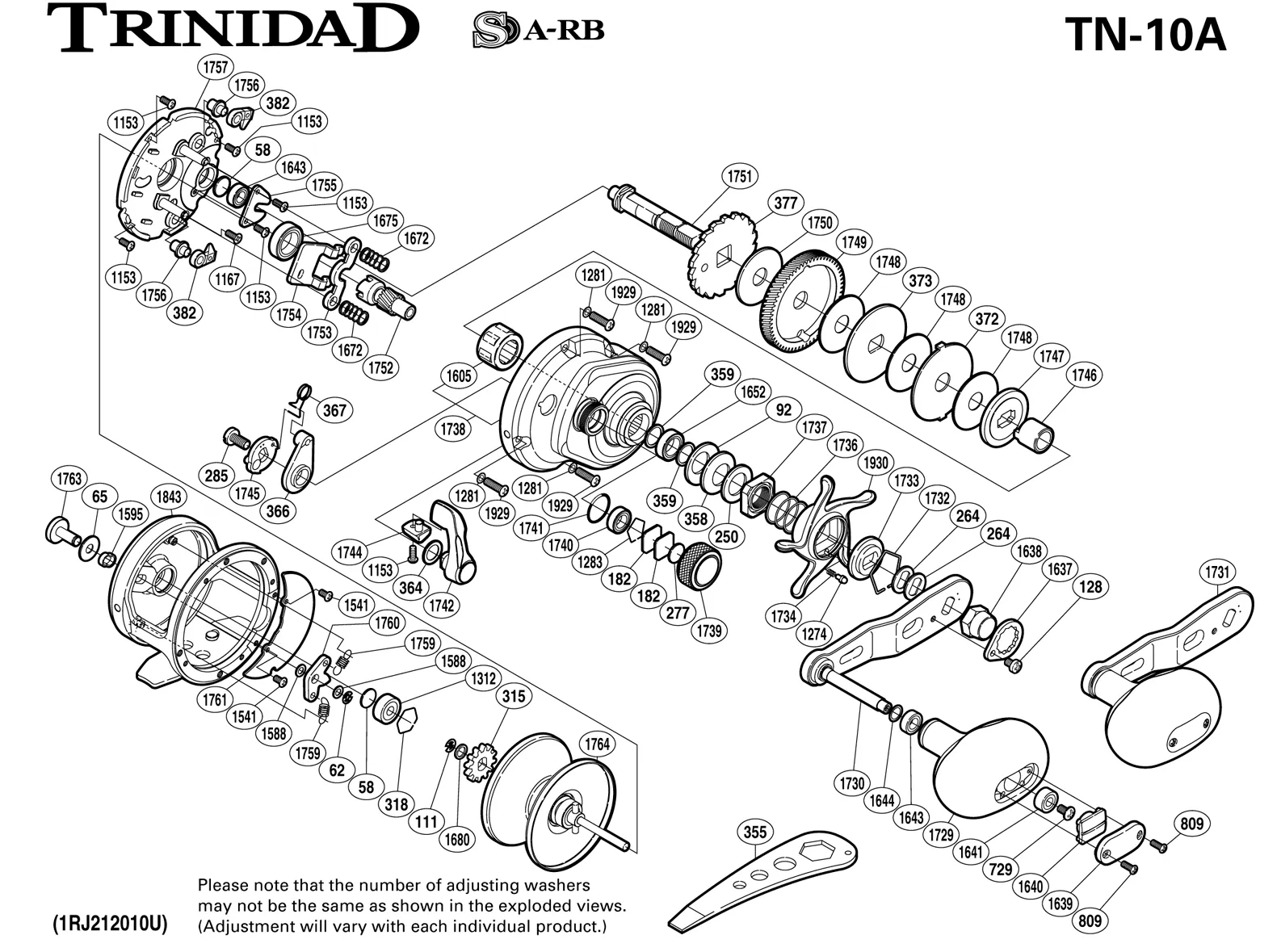

TRINIDAD - TN10A: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0058 | SPACER B |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0092 | DRAG SPRING WASHER |
| TGT0111 | CLICK GEAR RETAINER |
| TGT0128 | HANDLE NUT PLATE SCREW |
| TGT0182 | CAST CONTROL SPACER |
| TGT0250 | STAR DRAG WASHER |
| TGT0264 | DRIVE SHAFT SHIELD |
| TGT0277 | CAST CONTROL SPACER (B) |
| TGT0285 | CLUTCH LEVER SCREW |
| TGT0315 | CLICK GEAR |
| TGT0318 | BEARING RETAINER |
| TGT0355 | WRENCH (ACCESSORY) |
| TGT0358 | DRAG SPRING WASHER (8L) |
| TGT0359 | BEARING THRUST WASHER |
| TGT0364 BNT2883 | SMOOTHER |
| TGT0366 BNT2884 | ECCENTRIC CAM BUSHING |
| TGT0367 BNT2885 | CLUTCH SPRING |
| TGT0372 | EARED WASHER (E) |
| TGT0373 | KEY WASHER(C) |
| TGT0377 | ANTI-REVERSE RATCET |
| TGT0382 | ANTI-REVERSE PAWL |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0809 | SCREW |
| TGT1153 | SCREW |
| TGT1167 | SCREW |
| TGT1274 | CLICK PIN |
| TGT1281 | WASHER |
| TGT1283 BNT0032 | BEARING RETAINER |
| TGT1312 | BALL BEARING MADE IN JAPAN |
| TGT1541 | SCREW |
| TGT1588 | SPACER |
| TGT1595 | CLICK SWITCH CAM |
| TGT1637 | HANDLE NUT PLATE |
| TGT1638 | HANDLE NUT |
| TGT1639 | HANDLE KNOB I.D. PLATE |
| TGT1640 | HANDLE KNOB SEAL |
| TGT1641 | BALL BEARING MADE IN JAPAN |
| TGT1643 | BALL BEARING |
| Part Number | Part Description |
| TGT0058 | SPACER B |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0092 | DRAG SPRING WASHER |
| TGT0111 | CLICK GEAR RETAINER |
| TGT0128 | HANDLE NUT PLATE SCREW |
| TGT0182 | CAST CONTROL SPACER |
| TGT0250 | STAR DRAG WASHER |
| TGT0264 | DRIVE SHAFT SHIELD |
| TGT0277 | CAST CONTROL SPACER (B) |
| TGT0285 | CLUTCH LEVER SCREW |
| TGT0315 | CLICK GEAR |
| TGT0318 | BEARING RETAINER |
| TGT0355 | WRENCH (ACCESSORY) |
| TGT0358 | DRAG SPRING WASHER (8L) |
| TGT0359 | BEARING THRUST WASHER |
| TGT0364 BNT2883 | SMOOTHER |
| TGT0366 BNT2884 | ECCENTRIC CAM BUSHING |
| TGT0367 BNT2885 | CLUTCH SPRING |
| TGT0372 | EARED WASHER (E) |
| TGT0373 | KEY WASHER(C) |
| TGT0377 | ANTI-REVERSE RATCET |
| TGT0382 | ANTI-REVERSE PAWL |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0809 | SCREW |
| TGT1153 | SCREW |
| TGT1167 | SCREW |
| TGT1274 | CLICK PIN |
| TGT1281 | WASHER |
| TGT1283 BNT0032 | BEARING RETAINER |
| TGT1312 | BALL BEARING MADE IN JAPAN |
| TGT1541 | SCREW |
| TGT1588 | SPACER |
| TGT1595 | CLICK SWITCH CAM |
| TGT1637 | HANDLE NUT PLATE |
| TGT1638 | HANDLE NUT |
| TGT1639 | HANDLE KNOB I.D. PLATE |
| TGT1640 | HANDLE KNOB SEAL |
| TGT1641 | BALL BEARING MADE IN JAPAN |
| TGT1643 | BALL BEARING |
