TRINIDAD - TN12
TRINIDAD

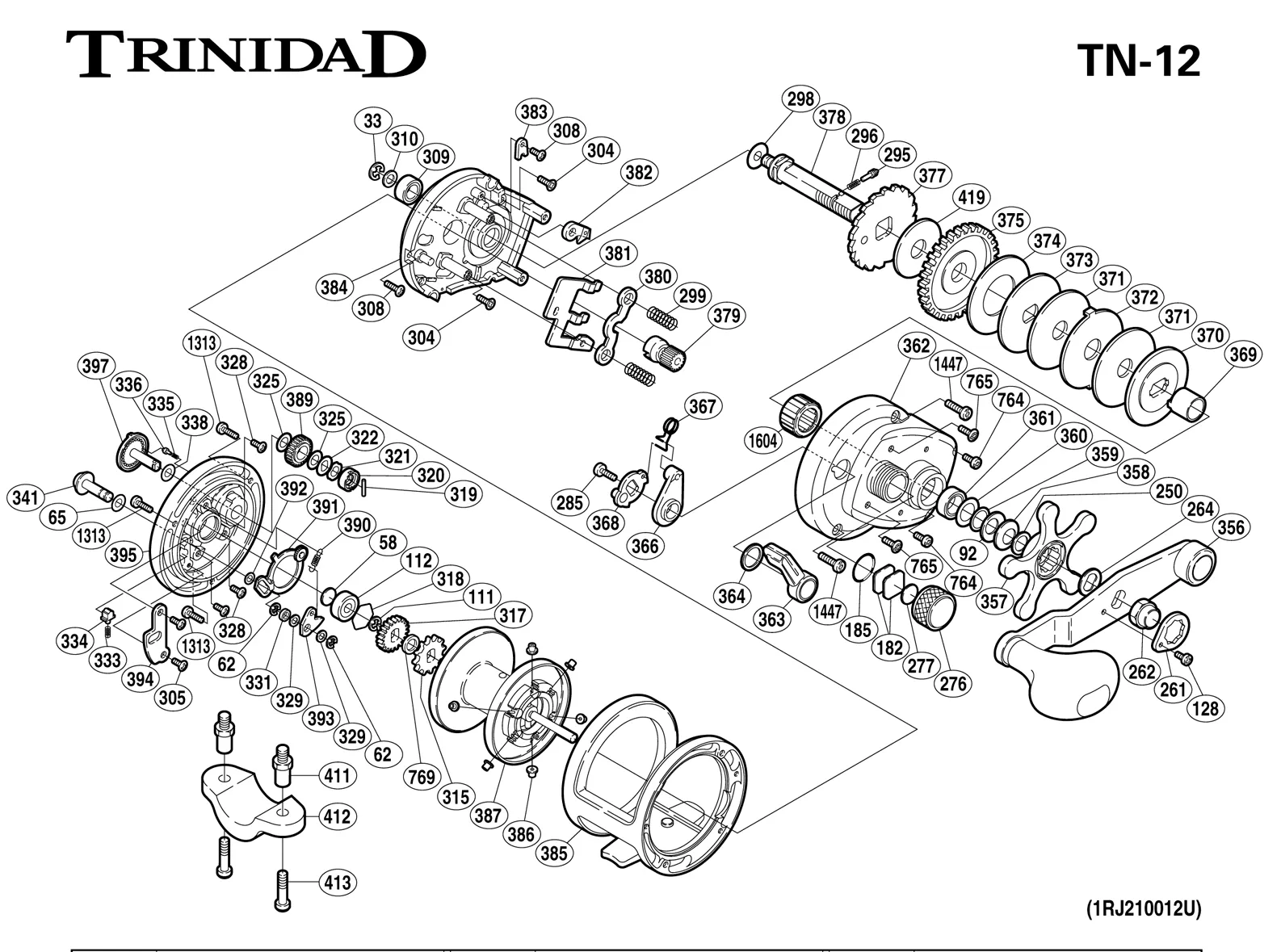

TRINIDAD - TN12: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0033 | DRIVE SHAFT RETAINER |
| TGT0058 | SPACER B |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0092 | DRAG SPRING WASHER |
| TGT0111 | CLICK GEAR RETAINER |
| TGT0128 | HANDLE NUT PLATE SCREW |
| TGT0182 | CAST CONTROL SPACER |
| TGT0185 | O RING |
| TGT0250 | STAR DRAG WASHER |
| TGT0261 BNT2679 | HANDLE NUT PLATE |
| TGT0262 | HANDLE NUT |
| TGT0264 | DRIVE SHAFT SHIELD |
| TGT0276 BNT1733 | CAST CONTROL CAP |
| TGT0277 | CAST CONTROL SPACER (B) |
| TGT0285 | CLUTCH LEVER SCREW |
| TGT0295 BNT2900 | CLICK PIN |
| TGT0296 BNT2901 | CLICK SPRING |
| TGT0298 | DRIVE SHAFT WASHER (B) |
| TGT0299 | YOKE SPRING |
| TGT0304 | SET PLATE SCREW (B) |
| TGT0305 | MULTI-PURPOSE SCREW |
| TGT0308 | SET PLATE SCREW (A) |
| TGT0310 | DRIVE SHAFT WASHER (A) |
| TGT0315 | CLICK GEAR |
| TGT0317 | "BR" GEAR (A) |
| TGT0318 | BEARING RETAINER |
| TGT0319 | "BR" CAM PIN |
| TGT0320 | "BR" CAM |
| TGT0321 | BR FRICTION WASHER |
| TGT0322 | BR WASHER (C) |
| TGT0325 | "BR" WASHER (B) |
| TGT0328 | BR SET P;ATE SCREW |
| TGT0329 | SPACER (B) |
| TGT0331 | CLICK PAWL SPACER |
| TGT0333 | CLICK SPRING |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0335 BNT2896 | """BR"" CLICK PIN" |
| TGT0336 BNT2895 | """BR"" CLICK SPRING" |
| TGT0338 | "BR" WASHER (D) |
| TGT0341 | CLICK BUTTON |
| TGT0357 | STAR DRAG |
| TGT0358 | DRAG SPRING WASHER (8L) |
| TGT0359 | BEARING THRUST WASHER |
| TGT0360 | BEARING SEAL |
| Part Number | Part Description |
| TGT0033 | DRIVE SHAFT RETAINER |
| TGT0058 | SPACER B |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0092 | DRAG SPRING WASHER |
| TGT0111 | CLICK GEAR RETAINER |
| TGT0128 | HANDLE NUT PLATE SCREW |
| TGT0182 | CAST CONTROL SPACER |
| TGT0185 | O RING |
| TGT0250 | STAR DRAG WASHER |
| TGT0261 BNT2679 | HANDLE NUT PLATE |
| TGT0262 | HANDLE NUT |
| TGT0264 | DRIVE SHAFT SHIELD |
| TGT0276 BNT1733 | CAST CONTROL CAP |
| TGT0277 | CAST CONTROL SPACER (B) |
| TGT0285 | CLUTCH LEVER SCREW |
| TGT0295 BNT2900 | CLICK PIN |
| TGT0296 BNT2901 | CLICK SPRING |
| TGT0298 | DRIVE SHAFT WASHER (B) |
| TGT0299 | YOKE SPRING |
| TGT0304 | SET PLATE SCREW (B) |
| TGT0305 | MULTI-PURPOSE SCREW |
| TGT0308 | SET PLATE SCREW (A) |
| TGT0310 | DRIVE SHAFT WASHER (A) |
| TGT0315 | CLICK GEAR |
| TGT0317 | "BR" GEAR (A) |
| TGT0318 | BEARING RETAINER |
| TGT0319 | "BR" CAM PIN |
| TGT0320 | "BR" CAM |
| TGT0321 | BR FRICTION WASHER |
| TGT0322 | BR WASHER (C) |
| TGT0325 | "BR" WASHER (B) |
| TGT0328 | BR SET P;ATE SCREW |
| TGT0329 | SPACER (B) |
| TGT0331 | CLICK PAWL SPACER |
| TGT0333 | CLICK SPRING |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0335 BNT2896 | """BR"" CLICK PIN" |
| TGT0336 BNT2895 | """BR"" CLICK SPRING" |
| TGT0338 | "BR" WASHER (D) |
| TGT0341 | CLICK BUTTON |
| TGT0357 | STAR DRAG |
| TGT0358 | DRAG SPRING WASHER (8L) |
| TGT0359 | BEARING THRUST WASHER |
| TGT0360 | BEARING SEAL |
