TRINIDAD - TN16A
TRINIDAD

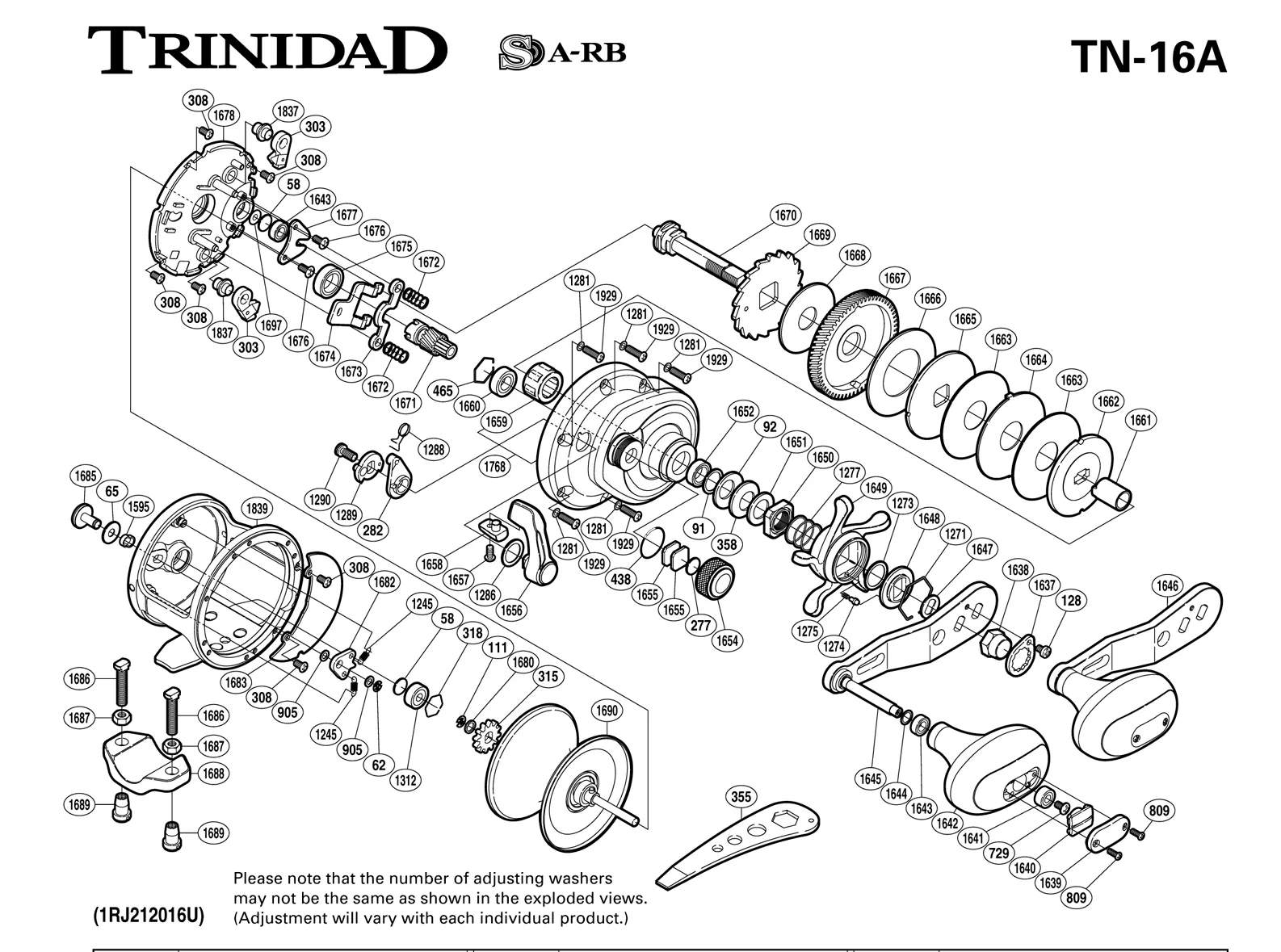

TRINIDAD - TN16A: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0058 | SPACER B |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0091 | BEARING THRUST WASHER |
| TGT0092 | DRAG SPRING WASHER |
| TGT0111 | CLICK GEAR RETAINER |
| TGT0128 | HANDLE NUT PLATE SCREW |
| TGT0277 | CAST CONTROL SPACER (B) |
| TGT0282 | ECCENTRIC CAM BUSHING |
| TGT0303 | ANTI-REVERSE PAWL |
| TGT0308 | SET PLATE SCREW (A) |
| TGT0315 | CLICK GEAR |
| TGT0318 | BEARING RETAINER |
| TGT0355 | WRENCH (ACCESSORY) |
| TGT0358 | DRAG SPRING WASHER (8L) |
| TGT0438 | O RING |
| TGT0465 | BEARING RETAINER |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0809 | SCREW |
| TGT0905 | SPACER |
| TGT1245 | CLICK PAWL SPRING |
| TGT1271 | CLICK PLATE RETAINER |
| TGT1273 | WASHER |
| TGT1274 | CLICK PIN |
| TGT1275 | CLICK SPRING |
| TGT1277 | STAR DRAG SPRING |
| TGT1281 | WASHER |
| TGT1286 | SMOOTHER |
| TGT1288 | CLUTCH SPRING |
| TGT1289 | CLUTCH CAM |
| TGT1290 | SCREW |
| TGT1312 | BALL BEARING MADE IN JAPAN |
| TGT1595 | CLICK SWITCH CAM |
| TGT1637 | HANDLE NUT PLATE |
| TGT1638 | HANDLE NUT |
| TGT1639 | HANDLE KNOB I.D. PLATE |
| TGT1640 | HANDLE KNOB SEAL |
| TGT1641 | BALL BEARING MADE IN JAPAN |
| TGT1642 | HANDLE KNOB |
| TGT1643 | BALL BEARING |
| TGT1644 | WASHER |
| TGT1645 | HANDLE SHANK ASSEMBLY |
| TGT1646 | HANDLE ASSEMBLY |
| Part Number | Part Description |
| TGT0058 | SPACER B |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0091 | BEARING THRUST WASHER |
| TGT0092 | DRAG SPRING WASHER |
| TGT0111 | CLICK GEAR RETAINER |
| TGT0128 | HANDLE NUT PLATE SCREW |
| TGT0277 | CAST CONTROL SPACER (B) |
| TGT0282 | ECCENTRIC CAM BUSHING |
| TGT0303 | ANTI-REVERSE PAWL |
| TGT0308 | SET PLATE SCREW (A) |
| TGT0315 | CLICK GEAR |
| TGT0318 | BEARING RETAINER |
| TGT0355 | WRENCH (ACCESSORY) |
| TGT0358 | DRAG SPRING WASHER (8L) |
| TGT0438 | O RING |
| TGT0465 | BEARING RETAINER |
| TGT0729 | COUNTER GEAR (B)SCREW |
| TGT0809 | SCREW |
| TGT0905 | SPACER |
| TGT1245 | CLICK PAWL SPRING |
| TGT1271 | CLICK PLATE RETAINER |
| TGT1273 | WASHER |
| TGT1274 | CLICK PIN |
| TGT1275 | CLICK SPRING |
| TGT1277 | STAR DRAG SPRING |
| TGT1281 | WASHER |
| TGT1286 | SMOOTHER |
| TGT1288 | CLUTCH SPRING |
| TGT1289 | CLUTCH CAM |
| TGT1290 | SCREW |
| TGT1312 | BALL BEARING MADE IN JAPAN |
| TGT1595 | CLICK SWITCH CAM |
| TGT1637 | HANDLE NUT PLATE |
| TGT1638 | HANDLE NUT |
| TGT1639 | HANDLE KNOB I.D. PLATE |
| TGT1640 | HANDLE KNOB SEAL |
| TGT1641 | BALL BEARING MADE IN JAPAN |
| TGT1642 | HANDLE KNOB |
| TGT1643 | BALL BEARING |
| TGT1644 | WASHER |
| TGT1645 | HANDLE SHANK ASSEMBLY |
| TGT1646 | HANDLE ASSEMBLY |
