TRINIDAD - TN20
TRINIDAD

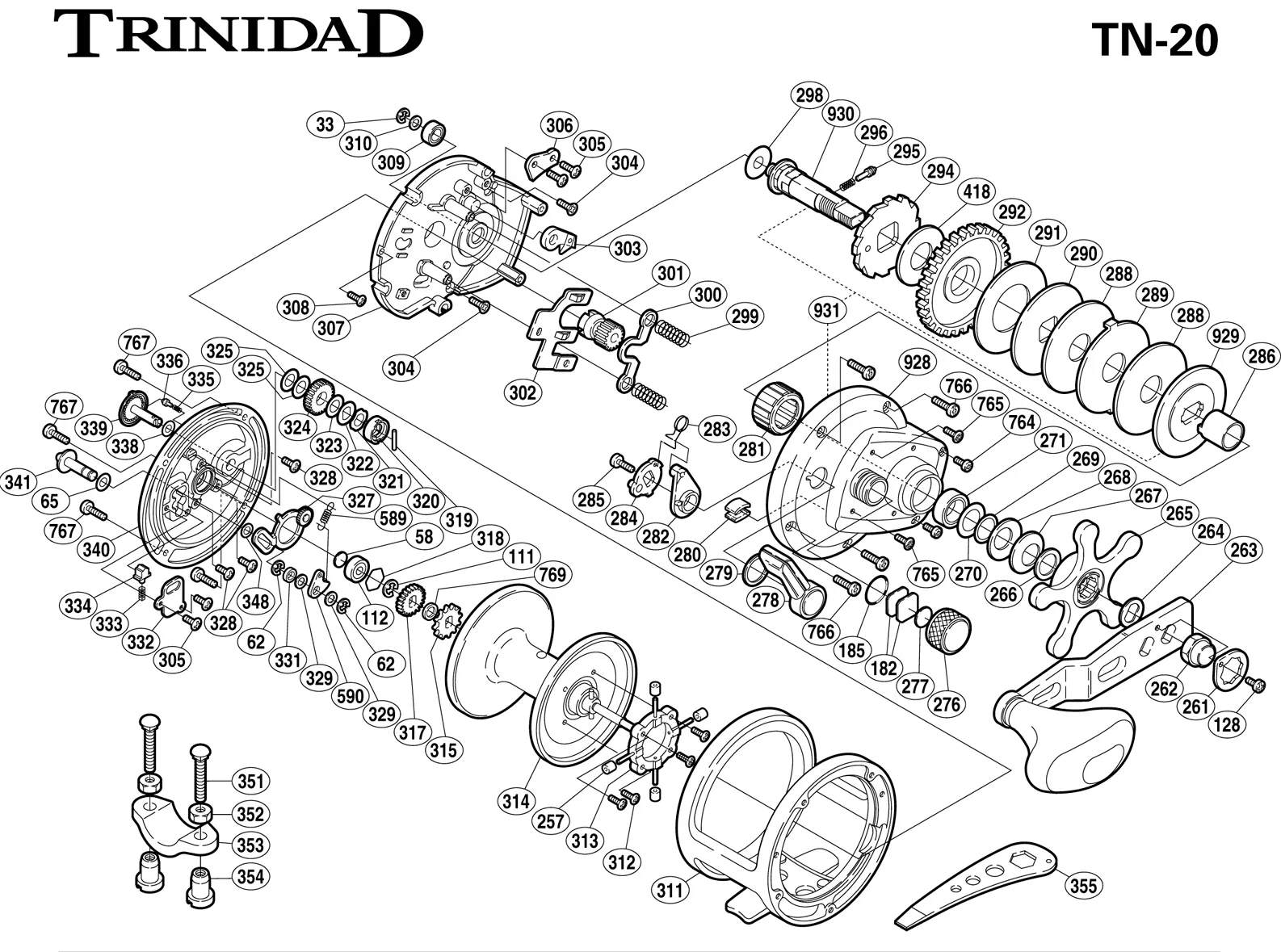

TRINIDAD - TN20: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0033 | DRIVE SHAFT RETAINER |
| TGT0058 | SPACER B |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0111 | CLICK GEAR RETAINER |
| TGT0128 | HANDLE NUT PLATE SCREW |
| TGT0182 | CAST CONTROL SPACER |
| TGT0185 | O RING |
| TGT0257 | BRAKE COLLAR (BLUE) |
| TGT0261 BNT2679 | HANDLE NUT PLATE |
| TGT0262 | HANDLE NUT |
| TGT0264 | DRIVE SHAFT SHIELD |
| TGT0265 BNT2873 | STAR DRAG |
| TGT0266 BNT2874 | STAR DRAG WASHER |
| TGT0267 BNT2875 | DRAG SPRING WASHER (9L) |
| TGT0268 BNT2876 | DRAG SPRING WASHER (9H) |
| TGT0269 BNT2877 | BEARING THRUST WASHER |
| TGT0270 BNT2878 | BEARING SEAL |
| TGT0276 BNT1733 | CAST CONTROL CAP |
| TGT0277 | CAST CONTROL SPACER (B) |
| TGT0278 | CLUTCH LEVER |
| TGT0279 | SMOOTHER |
| TGT0280 | LINE CLIP |
| TGT0282 | ECCENTRIC CAM BUSHING |
| TGT0283 | CLUTCH SPRING |
| TGT0284 | CLUTCH CAM |
| TGT0285 | CLUTCH LEVER SCREW |
| TGT0288 | DRAG WASHER (D) |
| TGT0289 | EARED WASHER (E) |
| TGT0290 | KEY WASHER (C) |
| TGT0291 | DRAG WASHER (B) |
| TGT0292 | DRIVE GEAR |
| TGT0294 | ANTI-REVERSE RATCHET |
| TGT0295 BNT2900 | CLICK PIN |
| TGT0296 BNT2901 | CLICK SPRING |
| TGT0298 | DRIVE SHAFT WASHER (B) |
| TGT0299 | YOKE SPRING |
| TGT0300 BNT2911 | YOKE |
| TGT0301 | PINION GEAR |
| TGT0302 | YOKE PLATE |
| TGT0303 | ANTI-REVERSE PAWL |
| TGT0304 | SET PLATE SCREW (B) |
| TGT0305 | MULTI-PURPOSE SCREW |
| TGT0306 | ANTI-REVERSE PAWL KEEPER |
| TGT0307 | SET PLATE |
| TGT0308 | SET PLATE SCREW (A) |
| TGT0310 | DRIVE SHAFT WASHER (A) |
| TGT0311 | |
| TGT0312 | BRAKE SHAFT HOLDER SCREW |
| Part Number | Part Description |
| TGT0033 | DRIVE SHAFT RETAINER |
| TGT0058 | SPACER B |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0111 | CLICK GEAR RETAINER |
| TGT0128 | HANDLE NUT PLATE SCREW |
| TGT0182 | CAST CONTROL SPACER |
| TGT0185 | O RING |
| TGT0257 | BRAKE COLLAR (BLUE) |
| TGT0261 BNT2679 | HANDLE NUT PLATE |
| TGT0262 | HANDLE NUT |
| TGT0264 | DRIVE SHAFT SHIELD |
| TGT0265 BNT2873 | STAR DRAG |
| TGT0266 BNT2874 | STAR DRAG WASHER |
| TGT0267 BNT2875 | DRAG SPRING WASHER (9L) |
| TGT0268 BNT2876 | DRAG SPRING WASHER (9H) |
| TGT0269 BNT2877 | BEARING THRUST WASHER |
| TGT0270 BNT2878 | BEARING SEAL |
| TGT0276 BNT1733 | CAST CONTROL CAP |
| TGT0277 | CAST CONTROL SPACER (B) |
| TGT0278 | CLUTCH LEVER |
| TGT0279 | SMOOTHER |
| TGT0280 | LINE CLIP |
| TGT0282 | ECCENTRIC CAM BUSHING |
| TGT0283 | CLUTCH SPRING |
| TGT0284 | CLUTCH CAM |
| TGT0285 | CLUTCH LEVER SCREW |
| TGT0288 | DRAG WASHER (D) |
| TGT0289 | EARED WASHER (E) |
| TGT0290 | KEY WASHER (C) |
| TGT0291 | DRAG WASHER (B) |
| TGT0292 | DRIVE GEAR |
| TGT0294 | ANTI-REVERSE RATCHET |
| TGT0295 BNT2900 | CLICK PIN |
| TGT0296 BNT2901 | CLICK SPRING |
| TGT0298 | DRIVE SHAFT WASHER (B) |
| TGT0299 | YOKE SPRING |
| TGT0300 BNT2911 | YOKE |
| TGT0301 | PINION GEAR |
| TGT0302 | YOKE PLATE |
| TGT0303 | ANTI-REVERSE PAWL |
| TGT0304 | SET PLATE SCREW (B) |
| TGT0305 | MULTI-PURPOSE SCREW |
| TGT0306 | ANTI-REVERSE PAWL KEEPER |
| TGT0307 | SET PLATE |
| TGT0308 | SET PLATE SCREW (A) |
| TGT0310 | DRIVE SHAFT WASHER (A) |
| TGT0311 | |
| TGT0312 | BRAKE SHAFT HOLDER SCREW |
