TRINIDAD - TN40N
TRINIDAD

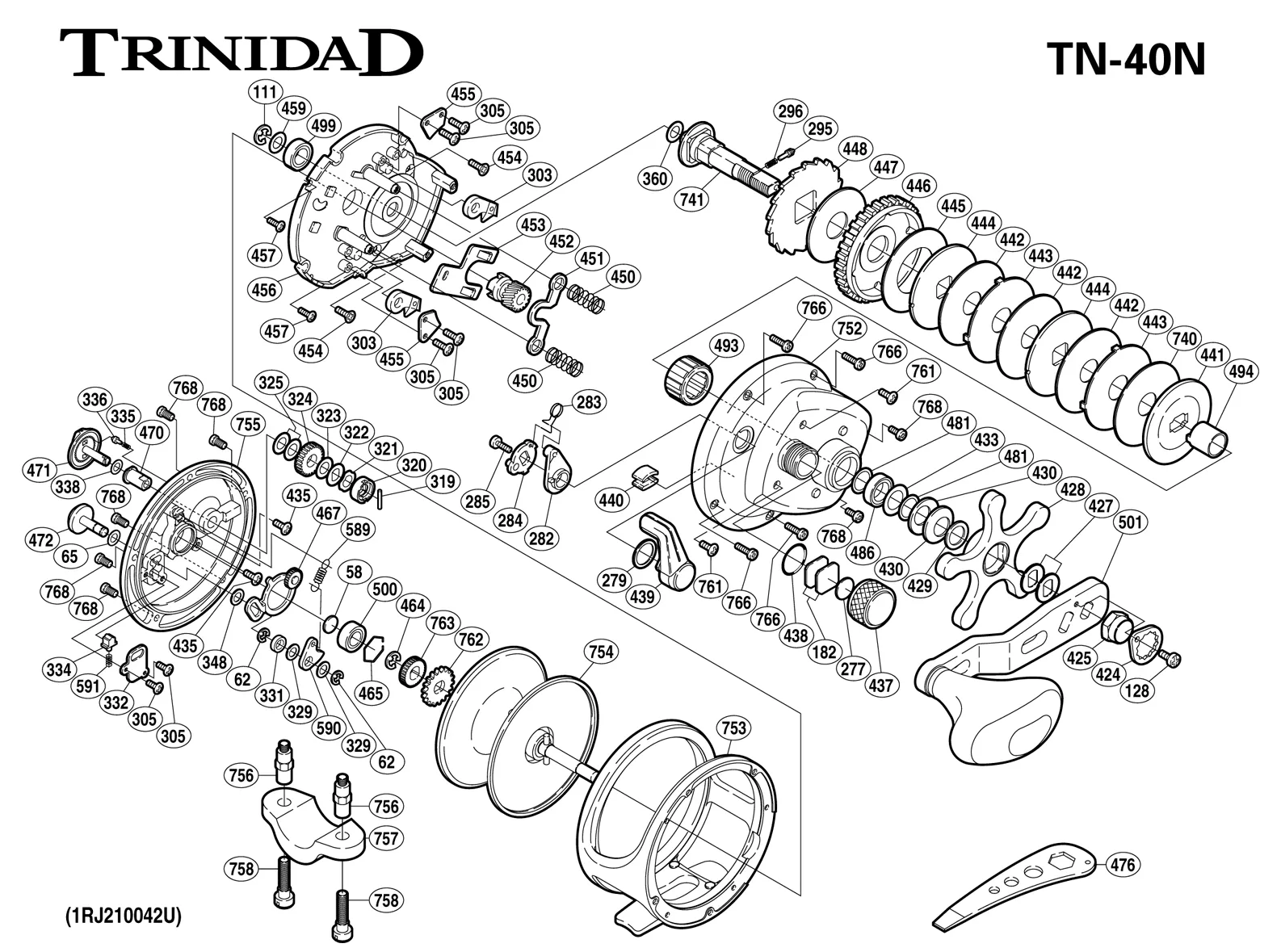

TRINIDAD - TN40N: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0058 | SPACER B |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0111 | CLICK GEAR RETAINER |
| TGT0128 | HANDLE NUT PLATE SCREW |
| TGT0182 | CAST CONTROL SPACER |
| TGT0277 | CAST CONTROL SPACER (B) |
| TGT0279 | SMOOTHER |
| TGT0282 | ECCENTRIC CAM BUSHING |
| TGT0283 | CLUTCH SPRING |
| TGT0284 | CLUTCH CAM |
| TGT0285 | CLUTCH LEVER SCREW |
| TGT0295 BNT2900 | CLICK PIN |
| TGT0296 BNT2901 | CLICK SPRING |
| TGT0303 | ANTI-REVERSE PAWL |
| TGT0305 | MULTI-PURPOSE SCREW |
| TGT0319 | "BR" CAM PIN |
| TGT0320 | "BR" CAM |
| TGT0321 | BR FRICTION WASHER |
| TGT0322 | BR WASHER (C) |
| TGT0323 | "BR" WASHER (A) |
| TGT0324 | "BR" GEAR (C) |
| TGT0325 | "BR" WASHER (B) |
| TGT0329 | SPACER (B) |
| TGT0331 | CLICK PAWL SPACER |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0335 BNT2896 | """BR"" CLICK PIN" |
| TGT0336 BNT2895 | """BR"" CLICK SPRING" |
| TGT0338 | "BR" WASHER (D) |
| TGT0348 | SPACER (C) |
| TGT0360 | BEARING SEAL |
| TGT0424 | HANDLE NUT PLATE |
| TGT0425 | HANDLE NUT |
| TGT0427 | DRIVE SHAFT SHIELD |
| TGT0428 | STAR DRAG |
| TGT0429 | STAR DRAG WASHER |
| TGT0430 | DRAG SPRING WASHER (10L) |
| TGT0433 | BEARING SEAL |
| TGT0435 | MULTI-PURPOSE SCREW |
| TGT0437 | CAST CONTROL CAP |
| TGT0438 | O RING |
| TGT0439 | CLUTCH LEVER |
| TGT0440 | LINE CLIP |
| TGT0441 | KEY WASHER |
| TGT0442 | DRAG WASHER (D) |
| Part Number | Part Description |
| TGT0058 | SPACER B |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0065 | SPACER A |
| TGT0111 | CLICK GEAR RETAINER |
| TGT0128 | HANDLE NUT PLATE SCREW |
| TGT0182 | CAST CONTROL SPACER |
| TGT0277 | CAST CONTROL SPACER (B) |
| TGT0279 | SMOOTHER |
| TGT0282 | ECCENTRIC CAM BUSHING |
| TGT0283 | CLUTCH SPRING |
| TGT0284 | CLUTCH CAM |
| TGT0285 | CLUTCH LEVER SCREW |
| TGT0295 BNT2900 | CLICK PIN |
| TGT0296 BNT2901 | CLICK SPRING |
| TGT0303 | ANTI-REVERSE PAWL |
| TGT0305 | MULTI-PURPOSE SCREW |
| TGT0319 | "BR" CAM PIN |
| TGT0320 | "BR" CAM |
| TGT0321 | BR FRICTION WASHER |
| TGT0322 | BR WASHER (C) |
| TGT0323 | "BR" WASHER (A) |
| TGT0324 | "BR" GEAR (C) |
| TGT0325 | "BR" WASHER (B) |
| TGT0329 | SPACER (B) |
| TGT0331 | CLICK PAWL SPACER |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0335 BNT2896 | """BR"" CLICK PIN" |
| TGT0336 BNT2895 | """BR"" CLICK SPRING" |
| TGT0338 | "BR" WASHER (D) |
| TGT0348 | SPACER (C) |
| TGT0360 | BEARING SEAL |
| TGT0424 | HANDLE NUT PLATE |
| TGT0425 | HANDLE NUT |
| TGT0427 | DRIVE SHAFT SHIELD |
| TGT0428 | STAR DRAG |
| TGT0429 | STAR DRAG WASHER |
| TGT0430 | DRAG SPRING WASHER (10L) |
| TGT0433 | BEARING SEAL |
| TGT0435 | MULTI-PURPOSE SCREW |
| TGT0437 | CAST CONTROL CAP |
| TGT0438 | O RING |
| TGT0439 | CLUTCH LEVER |
| TGT0440 | LINE CLIP |
| TGT0441 | KEY WASHER |
| TGT0442 | DRAG WASHER (D) |
