TYRNOS II - TYR16II
TYRNOS II

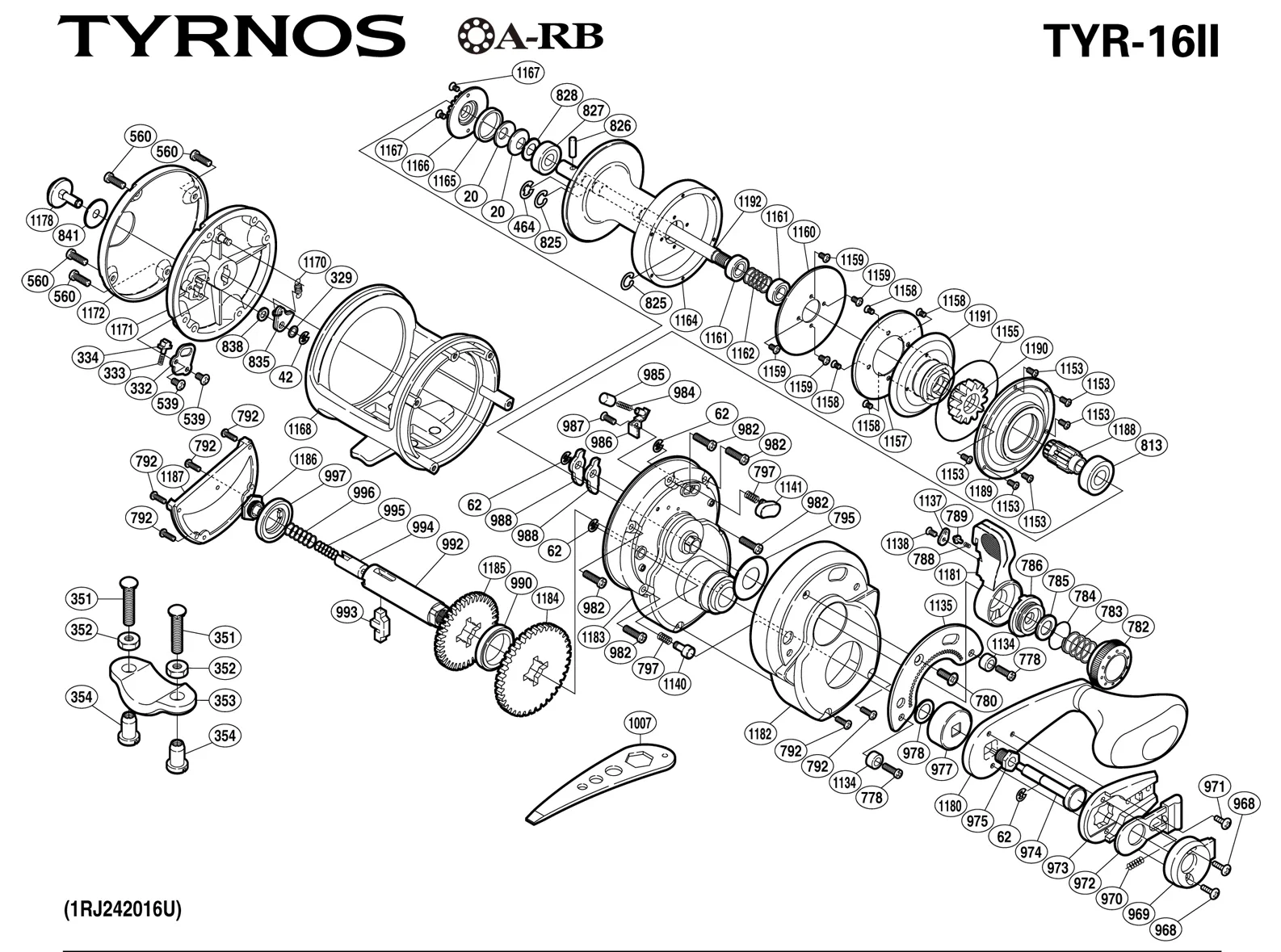

TYRNOS II - TYR16II: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0042 | WORM SHAFT RETAINER |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0329 | SPACER (B) |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0333 | CLICK SPRING |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0351 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0352 | ROD CLAMP NUT (B) (ACCESSORY) |
| TGT0353 | ROD CLAMP (ACCESSORY) |
| TGT0354 | ROD CLAMP NUT (A) (ACCESSORY) |
| TGT0464 | CLICK GEAR RETAINER |
| TGT0539 | MULTI-PURPOSE SCREW |
| TGT0560 | RIGHT SIDE PLATE SCREW (A) |
| TGT0778 TT 0158 | SCREW |
| TGT0780 | SCREW |
| TGT0782 | PRE-PROGRAM DIAL |
| TGT0783 | DIAL SPRING |
| TGT0784 TT 0153 | O RING |
| TGT0785 | DRAG CAM WASHER |
| TGT0786 | LEVER SHAFT BODY |
| TGT0788 | LEVER CLICK SHOE |
| TGT0789 | LEVER CLICK |
| TGT0792 | SCREW |
| TGT0795 | LEVER THRUST RING |
| TGT0797 TT 0163 | PRESSURE SPRING |
| TGT0813 | BALL BEARING MADE IN Thailand |
| TGT0825 TT 0179 | C LOCK |
| TGT0826 | CROSS PIN |
| TGT0827 TT 0570 | BALL BEARING |
| TGT0828 | BEARING THRUST WASHER |
| TGT0835 | CLICK PAWL |
| TGT0838 | SPACER |
| TGT0841 | CLICK BUTTON SPACER |
| TGT0968 | |
| TGT0969 TT 0091 | PUSH BUTTON SHIELD |
| TGT0970 | SLIDE PLATE SPRING |
| TGT0971 TT 0092 | SCREW |
| TGT0972 TT 0094 | SLIDE PLATE |
| TGT0973 TT 0002A | HANDLE BOLT PLATE |
| TGT0974 | PUSH LOW BUTTON SHAFT |
| TGT0975 TT 0148 | HANDLE BOLT |
| TGT0977 | DRIVE SHAFT SHIELD |
| TGT0978 | WASHER |
| TGT0982 | SCREW |
| TGT0984 TT 0342 | DOG SPRING |
| TGT0985 TT 0341 | DOG SPRING GUIDE |
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0042 | WORM SHAFT RETAINER |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0329 | SPACER (B) |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0333 | CLICK SPRING |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0351 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0352 | ROD CLAMP NUT (B) (ACCESSORY) |
| TGT0353 | ROD CLAMP (ACCESSORY) |
| TGT0354 | ROD CLAMP NUT (A) (ACCESSORY) |
| TGT0464 | CLICK GEAR RETAINER |
| TGT0539 | MULTI-PURPOSE SCREW |
| TGT0560 | RIGHT SIDE PLATE SCREW (A) |
| TGT0778 TT 0158 | SCREW |
| TGT0780 | SCREW |
| TGT0782 | PRE-PROGRAM DIAL |
| TGT0783 | DIAL SPRING |
| TGT0784 TT 0153 | O RING |
| TGT0785 | DRAG CAM WASHER |
| TGT0786 | LEVER SHAFT BODY |
| TGT0788 | LEVER CLICK SHOE |
| TGT0789 | LEVER CLICK |
| TGT0792 | SCREW |
| TGT0795 | LEVER THRUST RING |
| TGT0797 TT 0163 | PRESSURE SPRING |
| TGT0813 | BALL BEARING MADE IN Thailand |
| TGT0825 TT 0179 | C LOCK |
| TGT0826 | CROSS PIN |
| TGT0827 TT 0570 | BALL BEARING |
| TGT0828 | BEARING THRUST WASHER |
| TGT0835 | CLICK PAWL |
| TGT0838 | SPACER |
| TGT0841 | CLICK BUTTON SPACER |
| TGT0968 | |
| TGT0969 TT 0091 | PUSH BUTTON SHIELD |
| TGT0970 | SLIDE PLATE SPRING |
| TGT0971 TT 0092 | SCREW |
| TGT0972 TT 0094 | SLIDE PLATE |
| TGT0973 TT 0002A | HANDLE BOLT PLATE |
| TGT0974 | PUSH LOW BUTTON SHAFT |
| TGT0975 TT 0148 | HANDLE BOLT |
| TGT0977 | DRIVE SHAFT SHIELD |
| TGT0978 | WASHER |
| TGT0982 | SCREW |
| TGT0984 TT 0342 | DOG SPRING |
| TGT0985 TT 0341 | DOG SPRING GUIDE |
