TYRNOS II - TYR30II
TYRNOS II

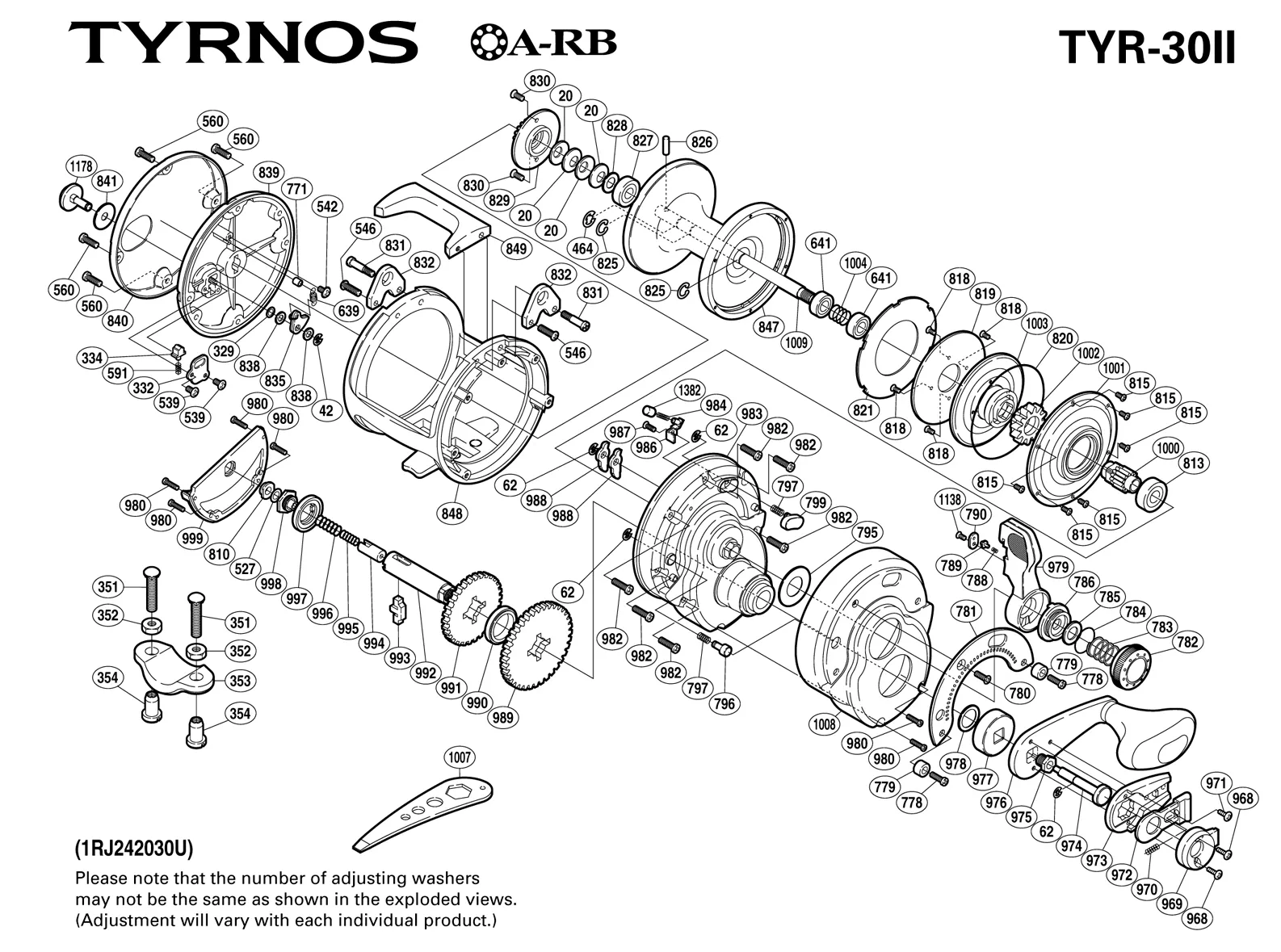

TYRNOS II - TYR30II: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0042 | WORM SHAFT RETAINER |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0329 | SPACER (B) |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0351 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0352 | ROD CLAMP NUT (B) (ACCESSORY) |
| TGT0353 | ROD CLAMP (ACCESSORY) |
| TGT0354 | ROD CLAMP NUT (A) (ACCESSORY) |
| TGT0464 | CLICK GEAR RETAINER |
| TGT0527 | SPACER |
| TGT0539 | MULTI-PURPOSE SCREW |
| TGT0542 | CLICK PAWL SPRING SCREW |
| TGT0546 | LEFT SIDE PLATE SCREW |
| TGT0560 | RIGHT SIDE PLATE SCREW (A) |
| TGT0591 | CLICK SPRING |
| TGT0639 | CLICK PAWL SPRING |
| TGT0641 | BEARING |
| TGT0771 | CLICK PAWL SPRING BOSS RING |
| TGT0778 TT 0158 | SCREW |
| TGT0779 TT 0159 | SCREW SHIELD |
| TGT0780 | SCREW |
| TGT0781 | LEVER QUADRANT |
| TGT0782 | PRE-PROGRAM DIAL |
| TGT0783 | DIAL SPRING |
| TGT0784 TT 0153 | O RING |
| TGT0785 | DRAG CAM WASHER |
| TGT0786 | LEVER SHAFT BODY |
| TGT0788 | LEVER CLICK SHOE |
| TGT0789 | LEVER CLICK |
| TGT0790 | LEVER CLICK COVER |
| TGT0795 | LEVER THRUST RING |
| TGT0796 TLD0087 | FREE SPOOL DETENT |
| TGT0797 TT 0163 | PRESSURE SPRING |
| TGT0799 TT 0162 | STRIKE STOP |
| TGT0810 BNT2489 | DRIVE SHAFT BUSHING |
| TGT0813 | BALL BEARING MADE IN Thailand |
| TGT0815 BNT1636 | SCREW |
| TGT0818 | |
| TGT0819 | DRAG PLATE |
| TGT0820 | O RING |
| TGT0821 | DRAG WASHER |
| TGT0825 TT 0179 | C LOCK |
| TGT0826 | CROSS PIN |
| TGT0827 TT 0570 | BALL BEARING |
| TGT0828 | BEARING THRUST WASHER |
| TGT0829 | CLICK GEAR |
| TGT0830 TT 0184 | SCREW |
| TGT0831 | HARNESS LUG SCREW |
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0042 | WORM SHAFT RETAINER |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0329 | SPACER (B) |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0351 | ROD CLAMP BOLT (ACCESSORY) |
| TGT0352 | ROD CLAMP NUT (B) (ACCESSORY) |
| TGT0353 | ROD CLAMP (ACCESSORY) |
| TGT0354 | ROD CLAMP NUT (A) (ACCESSORY) |
| TGT0464 | CLICK GEAR RETAINER |
| TGT0527 | SPACER |
| TGT0539 | MULTI-PURPOSE SCREW |
| TGT0542 | CLICK PAWL SPRING SCREW |
| TGT0546 | LEFT SIDE PLATE SCREW |
| TGT0560 | RIGHT SIDE PLATE SCREW (A) |
| TGT0591 | CLICK SPRING |
| TGT0639 | CLICK PAWL SPRING |
| TGT0641 | BEARING |
| TGT0771 | CLICK PAWL SPRING BOSS RING |
| TGT0778 TT 0158 | SCREW |
| TGT0779 TT 0159 | SCREW SHIELD |
| TGT0780 | SCREW |
| TGT0781 | LEVER QUADRANT |
| TGT0782 | PRE-PROGRAM DIAL |
| TGT0783 | DIAL SPRING |
| TGT0784 TT 0153 | O RING |
| TGT0785 | DRAG CAM WASHER |
| TGT0786 | LEVER SHAFT BODY |
| TGT0788 | LEVER CLICK SHOE |
| TGT0789 | LEVER CLICK |
| TGT0790 | LEVER CLICK COVER |
| TGT0795 | LEVER THRUST RING |
| TGT0796 TLD0087 | FREE SPOOL DETENT |
| TGT0797 TT 0163 | PRESSURE SPRING |
| TGT0799 TT 0162 | STRIKE STOP |
| TGT0810 BNT2489 | DRIVE SHAFT BUSHING |
| TGT0813 | BALL BEARING MADE IN Thailand |
| TGT0815 BNT1636 | SCREW |
| TGT0818 | |
| TGT0819 | DRAG PLATE |
| TGT0820 | O RING |
| TGT0821 | DRAG WASHER |
| TGT0825 TT 0179 | C LOCK |
| TGT0826 | CROSS PIN |
| TGT0827 TT 0570 | BALL BEARING |
| TGT0828 | BEARING THRUST WASHER |
| TGT0829 | CLICK GEAR |
| TGT0830 TT 0184 | SCREW |
| TGT0831 | HARNESS LUG SCREW |
