TYRNOS II - TYR8II
TYRNOS II

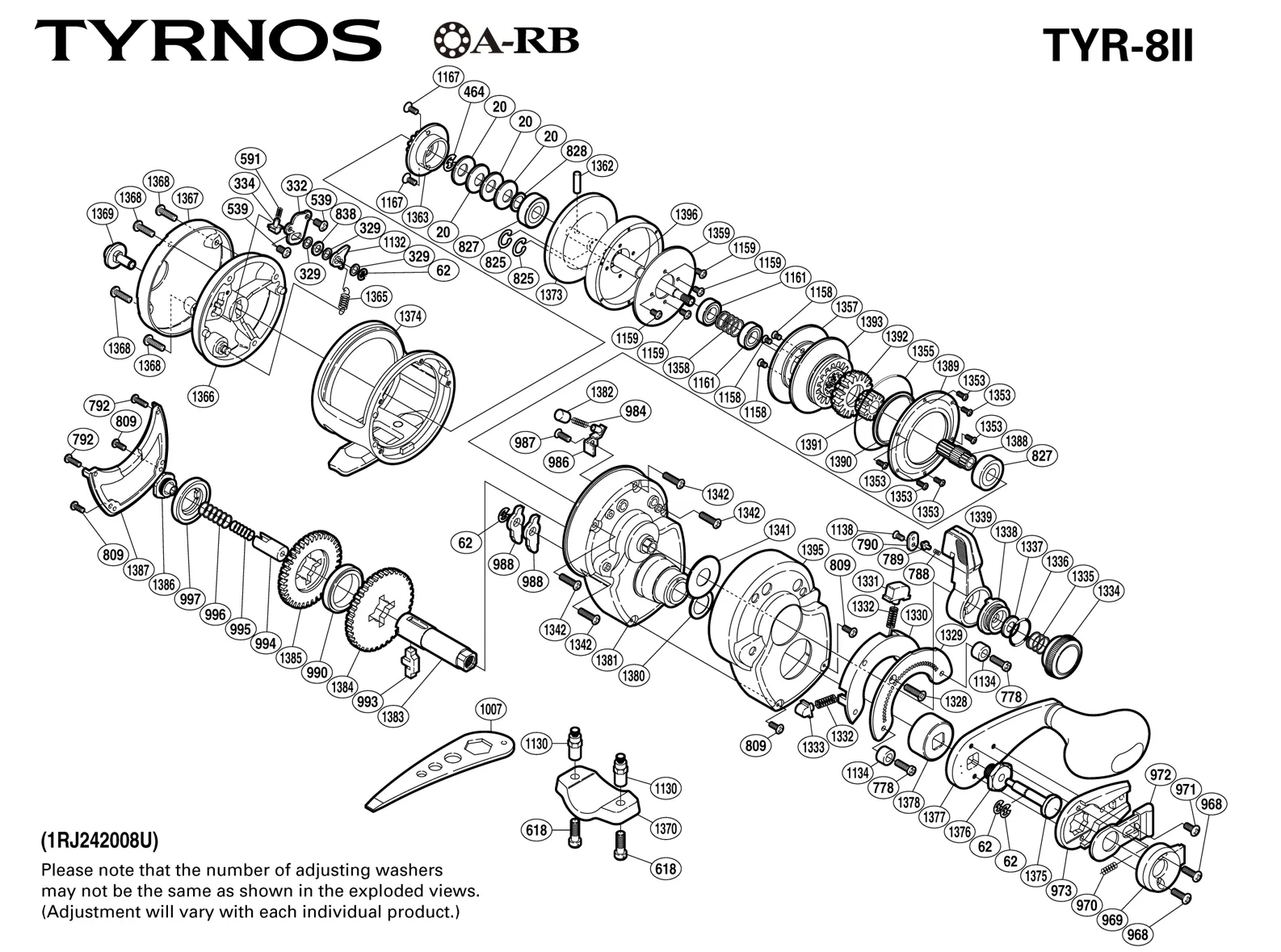

TYRNOS II - TYR8II: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0329 | SPACER (B) |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0464 | CLICK GEAR RETAINER |
| TGT0539 | MULTI-PURPOSE SCREW |
| TGT0591 | CLICK SPRING |
| TGT0618 | ROD CLAMPBOLT(ACCESSORY) |
| TGT0778 TT 0158 | SCREW |
| TGT0788 | LEVER CLICK SHOE |
| TGT0789 | LEVER CLICK |
| TGT0790 | LEVER CLICK COVER |
| TGT0792 | SCREW |
| TGT0809 | SCREW |
| TGT0825 TT 0179 | C LOCK |
| TGT0827 TT 0570 | BALL BEARING |
| TGT0828 | BEARING THRUST WASHER |
| TGT0838 | SPACER |
| TGT0968 | |
| TGT0969 TT 0091 | PUSH BUTTON SHIELD |
| TGT0970 | SLIDE PLATE SPRING |
| TGT0971 TT 0092 | SCREW |
| TGT0972 TT 0094 | SLIDE PLATE |
| TGT0973 TT 0002A | HANDLE BOLT PLATE |
| TGT0984 TT 0342 | DOG SPRING |
| TGT0986 TT 0340 | GUARD AGAINST DOG |
| TGT0987 BNT2179 | SCREW |
| TGT0988 TT 0338 | DOG |
| TGT0990 | FRICTION WASHER |
| TGT0993 | GEAR SELECT CROSS BAR |
| TGT0994 | CROSS BAR STOP |
| TGT0995 | DRIVE SHAFT SPRING B |
| TGT0996 | DRIVE SHAFT SPRING |
| TGT0997 | FRICTION WASHER |
| TGT1007 | WRENCH (ACCESSORY) |
| TGT1130 | ROD CLAMP NUT (ACCESSORY) |
| TGT1132 | CLICK PAWL |
| TGT1134 | SCREW SHIELD |
| TGT1138 | SCREW |
| TGT1158 | SCREW |
| TGT1159 | SCREW |
| TGT1161 | BALL BEARING (ARB) |
| TGT1167 | SCREW |
| TGT1328 | SCREW |
| TGT1329 | LEVER QUADRANT |
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0329 | SPACER (B) |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0464 | CLICK GEAR RETAINER |
| TGT0539 | MULTI-PURPOSE SCREW |
| TGT0591 | CLICK SPRING |
| TGT0618 | ROD CLAMPBOLT(ACCESSORY) |
| TGT0778 TT 0158 | SCREW |
| TGT0788 | LEVER CLICK SHOE |
| TGT0789 | LEVER CLICK |
| TGT0790 | LEVER CLICK COVER |
| TGT0792 | SCREW |
| TGT0809 | SCREW |
| TGT0825 TT 0179 | C LOCK |
| TGT0827 TT 0570 | BALL BEARING |
| TGT0828 | BEARING THRUST WASHER |
| TGT0838 | SPACER |
| TGT0968 | |
| TGT0969 TT 0091 | PUSH BUTTON SHIELD |
| TGT0970 | SLIDE PLATE SPRING |
| TGT0971 TT 0092 | SCREW |
| TGT0972 TT 0094 | SLIDE PLATE |
| TGT0973 TT 0002A | HANDLE BOLT PLATE |
| TGT0984 TT 0342 | DOG SPRING |
| TGT0986 TT 0340 | GUARD AGAINST DOG |
| TGT0987 BNT2179 | SCREW |
| TGT0988 TT 0338 | DOG |
| TGT0990 | FRICTION WASHER |
| TGT0993 | GEAR SELECT CROSS BAR |
| TGT0994 | CROSS BAR STOP |
| TGT0995 | DRIVE SHAFT SPRING B |
| TGT0996 | DRIVE SHAFT SPRING |
| TGT0997 | FRICTION WASHER |
| TGT1007 | WRENCH (ACCESSORY) |
| TGT1130 | ROD CLAMP NUT (ACCESSORY) |
| TGT1132 | CLICK PAWL |
| TGT1134 | SCREW SHIELD |
| TGT1138 | SCREW |
| TGT1158 | SCREW |
| TGT1159 | SCREW |
| TGT1161 | BALL BEARING (ARB) |
| TGT1167 | SCREW |
| TGT1328 | SCREW |
| TGT1329 | LEVER QUADRANT |
