Tyrnos - TYR50LRS
Tyrnos

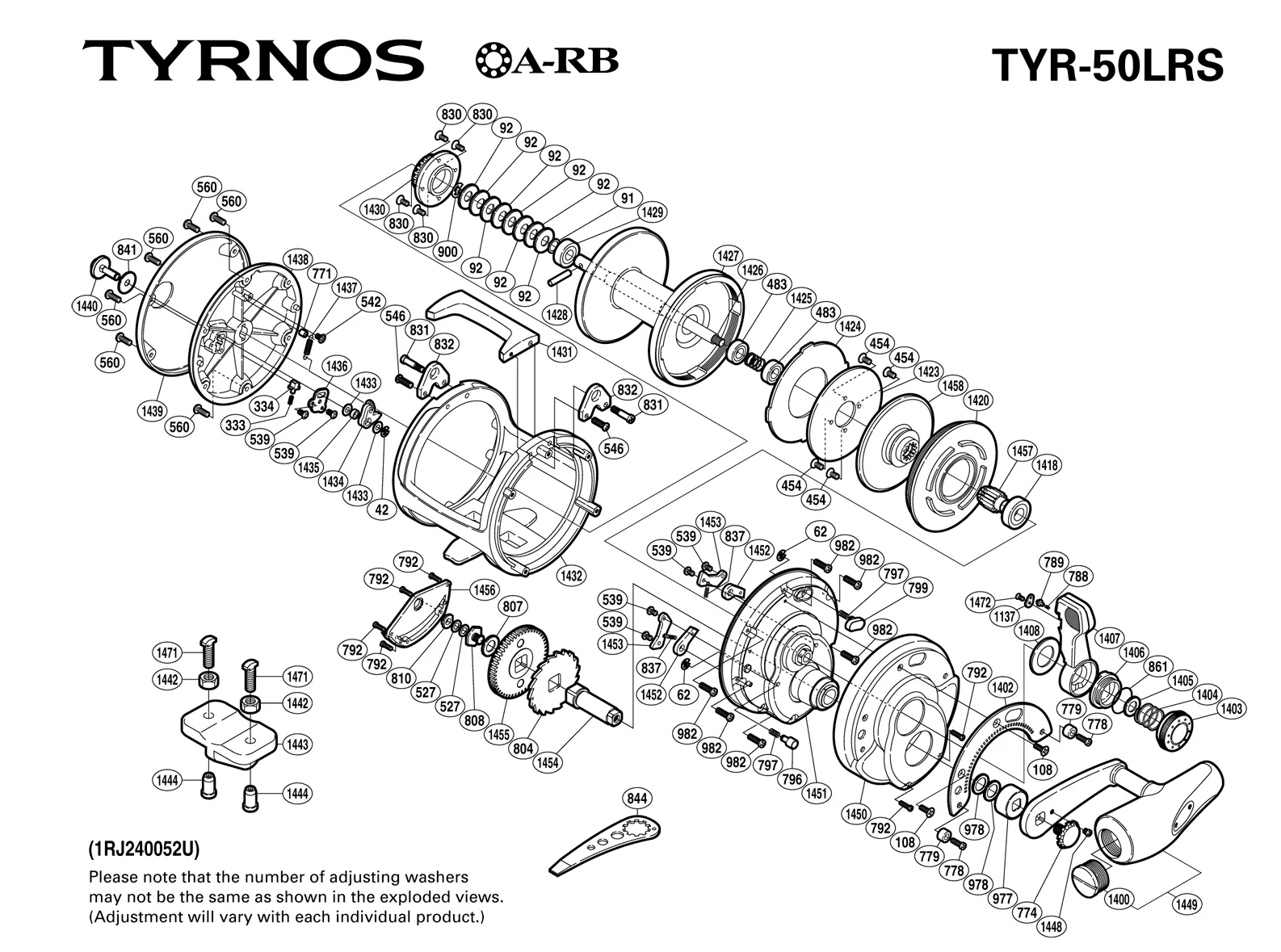

Tyrnos - TYR50LRS: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0042 | WORM SHAFT RETAINER |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0091 | BEARING THRUST WASHER |
| TGT0092 | DRAG SPRING WASHER |
| TGT0108 TT 0161 | LINE GUARD SCREW |
| TGT0333 | CLICK SPRING |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0454 | SET PLATE SCREW (B) |
| TGT0483 | BALL BEARING (ARB) |
| TGT0527 | SPACER |
| TGT0539 | MULTI-PURPOSE SCREW |
| TGT0542 | CLICK PAWL SPRING SCREW |
| TGT0546 | LEFT SIDE PLATE SCREW |
| TGT0560 | RIGHT SIDE PLATE SCREW (A) |
| TGT0771 | CLICK PAWL SPRING BOSS RING |
| TGT0774 | HANDLE BOLT |
| TGT0778 TT 0158 | SCREW |
| TGT0779 TT 0159 | SCREW SHIELD |
| TGT0788 | LEVER CLICK SHOE |
| TGT0789 | LEVER CLICK |
| TGT0792 | SCREW |
| TGT0796 TLD0087 | FREE SPOOL DETENT |
| TGT0797 TT 0163 | PRESSURE SPRING |
| TGT0799 TT 0162 | STRIKE STOP |
| TGT0804 | ANTI-REVERSE RATCHET |
| TGT0807 | DRIVE GEAR SPACER |
| TGT0808 | DRIVE SHAFT SCREW |
| TGT0810 BNT2489 | DRIVE SHAFT BUSHING |
| TGT0830 TT 0184 | SCREW |
| TGT0831 | HARNESS LUG SCREW |
| TGT0832 | HARNESS LUG |
| TGT0837 | ANTI-REVERSE PAWL SPRING |
| TGT0841 | CLICK BUTTON SPACER |
| TGT0844 | 05TYR20 WRENCH |
| TGT0861 BNT3076 | O RING |
| TGT0900 | E LOCK |
| TGT0977 | DRIVE SHAFT SHIELD |
| TGT0978 | WASHER |
| TGT0982 | SCREW |
| TGT1137 | LEVER CLICK COVER |
| TGT1138 | SCREW |
| TGT1400 TT 0769 | HANDLE KNOB BUSHING |
| Part Number | Part Description |
| TGT0042 | WORM SHAFT RETAINER |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0091 | BEARING THRUST WASHER |
| TGT0092 | DRAG SPRING WASHER |
| TGT0108 TT 0161 | LINE GUARD SCREW |
| TGT0333 | CLICK SPRING |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0454 | SET PLATE SCREW (B) |
| TGT0483 | BALL BEARING (ARB) |
| TGT0527 | SPACER |
| TGT0539 | MULTI-PURPOSE SCREW |
| TGT0542 | CLICK PAWL SPRING SCREW |
| TGT0546 | LEFT SIDE PLATE SCREW |
| TGT0560 | RIGHT SIDE PLATE SCREW (A) |
| TGT0771 | CLICK PAWL SPRING BOSS RING |
| TGT0774 | HANDLE BOLT |
| TGT0778 TT 0158 | SCREW |
| TGT0779 TT 0159 | SCREW SHIELD |
| TGT0788 | LEVER CLICK SHOE |
| TGT0789 | LEVER CLICK |
| TGT0792 | SCREW |
| TGT0796 TLD0087 | FREE SPOOL DETENT |
| TGT0797 TT 0163 | PRESSURE SPRING |
| TGT0799 TT 0162 | STRIKE STOP |
| TGT0804 | ANTI-REVERSE RATCHET |
| TGT0807 | DRIVE GEAR SPACER |
| TGT0808 | DRIVE SHAFT SCREW |
| TGT0810 BNT2489 | DRIVE SHAFT BUSHING |
| TGT0830 TT 0184 | SCREW |
| TGT0831 | HARNESS LUG SCREW |
| TGT0832 | HARNESS LUG |
| TGT0837 | ANTI-REVERSE PAWL SPRING |
| TGT0841 | CLICK BUTTON SPACER |
| TGT0844 | 05TYR20 WRENCH |
| TGT0861 BNT3076 | O RING |
| TGT0900 | E LOCK |
| TGT0977 | DRIVE SHAFT SHIELD |
| TGT0978 | WASHER |
| TGT0982 | SCREW |
| TGT1137 | LEVER CLICK COVER |
| TGT1138 | SCREW |
| TGT1400 TT 0769 | HANDLE KNOB BUSHING |
