Tyrnos - TYR8
Tyrnos

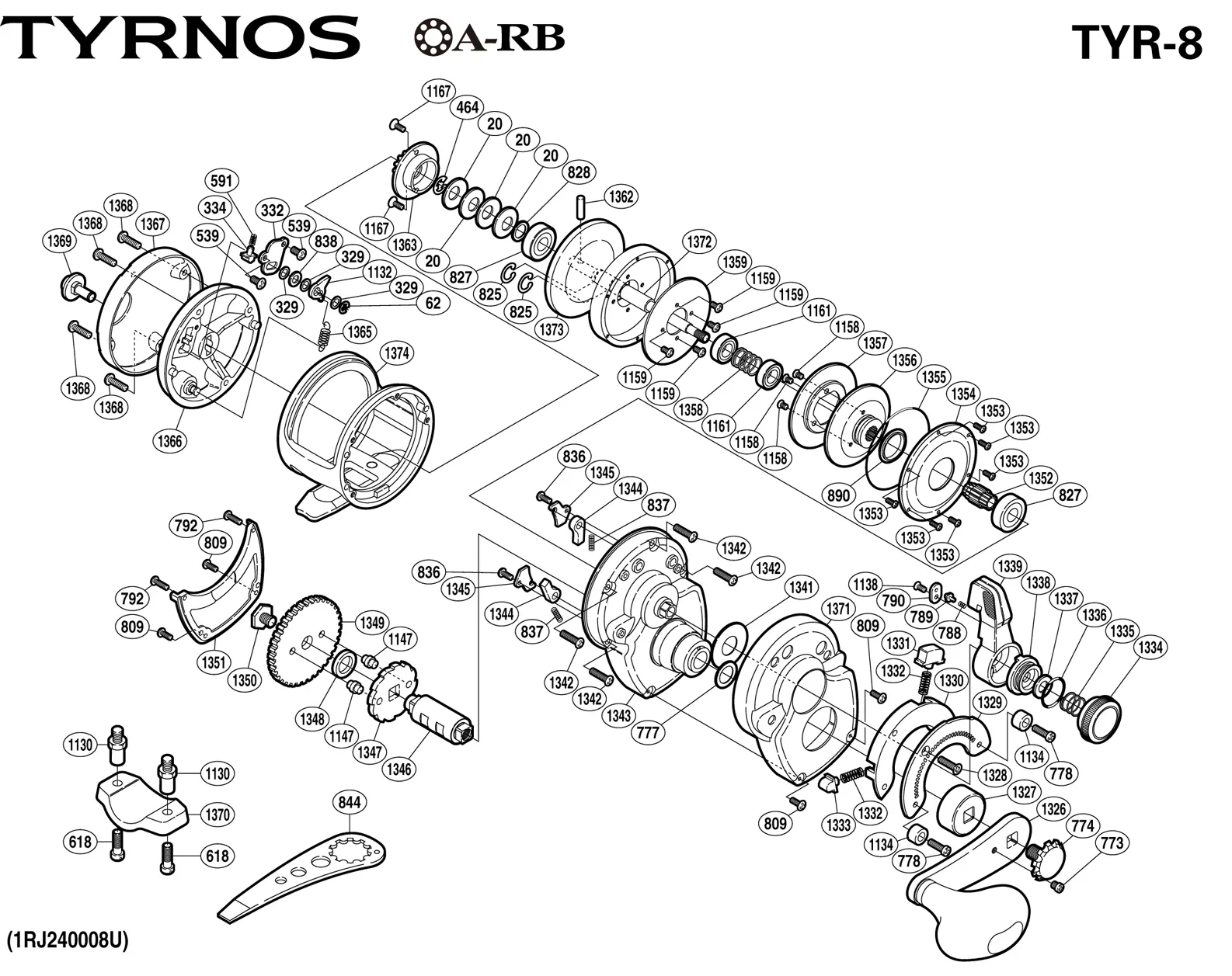

Tyrnos - TYR8: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0329 | SPACER (B) |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0464 | CLICK GEAR RETAINER |
| TGT0539 | MULTI-PURPOSE SCREW |
| TGT0591 | CLICK SPRING |
| TGT0618 | ROD CLAMPBOLT(ACCESSORY) |
| TGT0773 | SCREW |
| TGT0774 | HANDLE BOLT |
| TGT0777 TLD0079 | GEAR SHAFT THRUST WASHER |
| TGT0778 TT 0158 | SCREW |
| TGT0788 | LEVER CLICK SHOE |
| TGT0789 | LEVER CLICK |
| TGT0790 | LEVER CLICK COVER |
| TGT0792 | SCREW |
| TGT0809 | SCREW |
| TGT0825 TT 0179 | C LOCK |
| TGT0827 TT 0570 | BALL BEARING |
| TGT0828 | BEARING THRUST WASHER |
| TGT0836 RD 5690 | SCREW |
| TGT0837 | ANTI-REVERSE PAWL SPRING |
| TGT0838 | SPACER |
| TGT0844 | 05TYR20 WRENCH |
| TGT0890 | WATERPROOF RING |
| TGT1130 | ROD CLAMP NUT (ACCESSORY) |
| TGT1132 | CLICK PAWL |
| TGT1134 | SCREW SHIELD |
| TGT1138 | SCREW |
| TGT1147 | ANTI-REVERSE RATCHET PIN |
| TGT1158 | SCREW |
| TGT1159 | SCREW |
| TGT1161 | BALL BEARING (ARB) |
| TGT1167 | SCREW |
| TGT1326 | HANDLE |
| TGT1327 | DRIVE SHAFT SHIELD |
| TGT1328 | SCREW |
| TGT1329 | LEVER QUADRANT |
| TGT1330 | RIGHT SIDE PLATE B |
| Part Number | Part Description |
| TGT0020 | DRAG SPRING WASHER H |
| TGT0062 | CLICK PAWL RETAINER |
| TGT0329 | SPACER (B) |
| TGT0332 | CLICK SPRING RETAINER |
| TGT0334 | CLICK SPRING HOLDER |
| TGT0464 | CLICK GEAR RETAINER |
| TGT0539 | MULTI-PURPOSE SCREW |
| TGT0591 | CLICK SPRING |
| TGT0618 | ROD CLAMPBOLT(ACCESSORY) |
| TGT0773 | SCREW |
| TGT0774 | HANDLE BOLT |
| TGT0777 TLD0079 | GEAR SHAFT THRUST WASHER |
| TGT0778 TT 0158 | SCREW |
| TGT0788 | LEVER CLICK SHOE |
| TGT0789 | LEVER CLICK |
| TGT0790 | LEVER CLICK COVER |
| TGT0792 | SCREW |
| TGT0809 | SCREW |
| TGT0825 TT 0179 | C LOCK |
| TGT0827 TT 0570 | BALL BEARING |
| TGT0828 | BEARING THRUST WASHER |
| TGT0836 RD 5690 | SCREW |
| TGT0837 | ANTI-REVERSE PAWL SPRING |
| TGT0838 | SPACER |
| TGT0844 | 05TYR20 WRENCH |
| TGT0890 | WATERPROOF RING |
| TGT1130 | ROD CLAMP NUT (ACCESSORY) |
| TGT1132 | CLICK PAWL |
| TGT1134 | SCREW SHIELD |
| TGT1138 | SCREW |
| TGT1147 | ANTI-REVERSE RATCHET PIN |
| TGT1158 | SCREW |
| TGT1159 | SCREW |
| TGT1161 | BALL BEARING (ARB) |
| TGT1167 | SCREW |
| TGT1326 | HANDLE |
| TGT1327 | DRIVE SHAFT SHIELD |
| TGT1328 | SCREW |
| TGT1329 | LEVER QUADRANT |
| TGT1330 | RIGHT SIDE PLATE B |
