ANTARES - ANT100
ANTARES

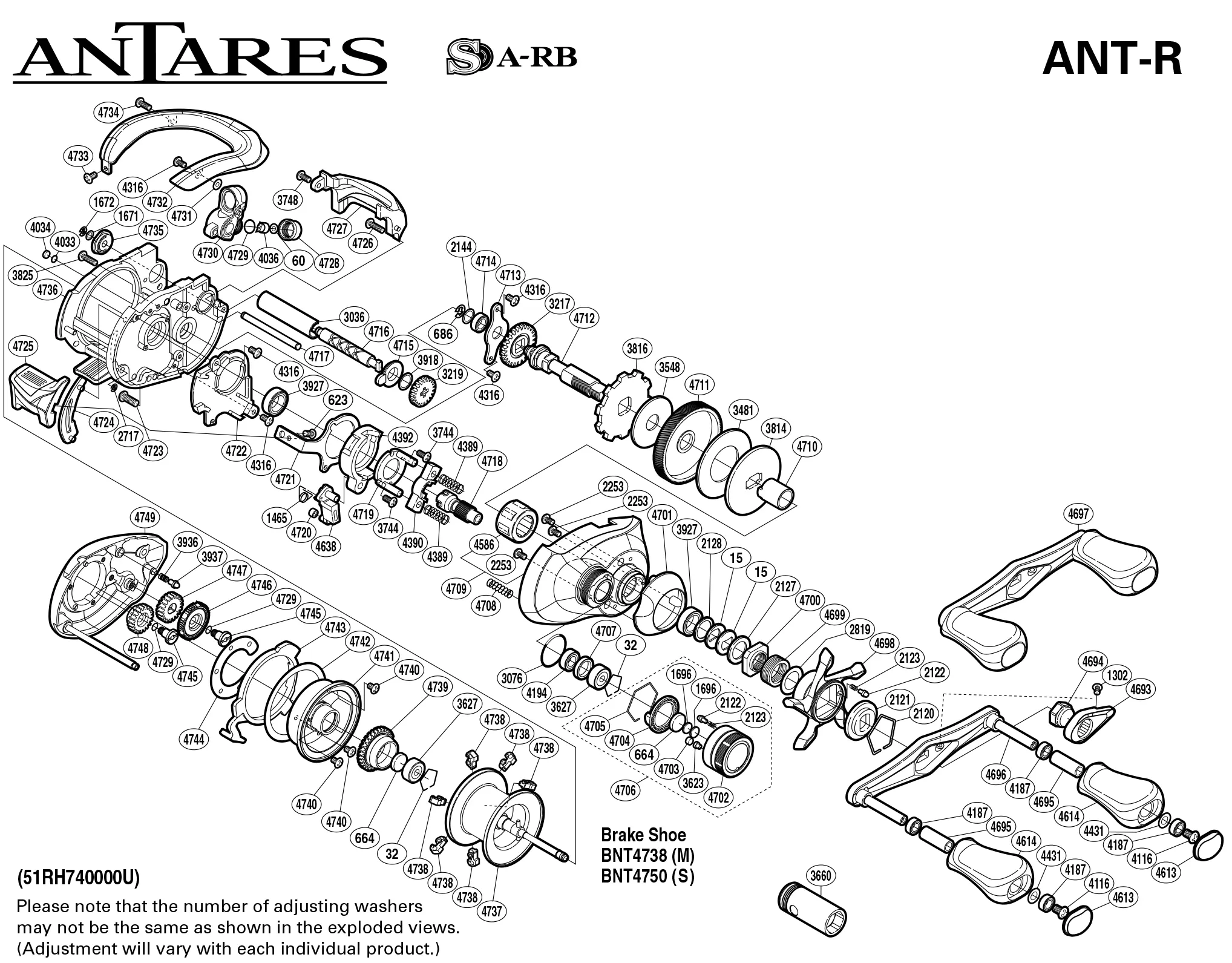

ANTARES - ANT100: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT1302 RD 4812 | CLUTCH CAM SCREW |
| BNT1465 | CLUTCH PAWL SPRING |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT2120 | CLICK PLATE RETAINER |
| BNT2121 | STAR DRAG CLICK |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2127 | STAR DRAG SPACER |
| BNT2128 | BEARING WASHER |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2253 | DRIVE SHAFT COVER SCREW |
| BNT2717 | E LOCK |
| BNT2819 | WORM SPACER |
| BNT3036 | LEVEL WIND GUARD |
| BNT3076 | O RING |
| BNT3217 | IDLE GEAR A |
| BNT3219 | IDLE GEAR C |
| BNT3481 | DRAG WASHER |
| BNT3548 | DRAG WASHER |
| BNT3623 | CAST CONTROL CAP RETAINER |
| BNT3627 | BALL BEARING MADE IN JAPAN |
| BNT3660 | WRENCH (ACCESSORY) |
| BNT3744 | SCREW |
| BNT3748 | SCREW |
| BNT3814 | KEY WASHER |
| BNT3816 | ANTI-REVERSE RATCHET |
| BNT3825 | SCREW |
| BNT3918 | WASHER |
| BNT3927 | BALL BEARING MADE IN JAPAN |
| BNT3936 | CLICK SPRING |
| BNT3937 | CLICK PIN |
| BNT4033 | WASHER |
| BNT4034 | ANTI-THRUST WASHER |
| BNT4036 | LINE GUIDE PAWL |
| BNT4116 | SCREW |
| BNT4187 | BALL BEARING MADE IN THILAND |
| BNT4194 | BALL BEARING MADE IN THAILAND |
| BNT4316 | SCREW |
| BNT4389 | YOKE SPRING |
| BNT4390 | YOKE |
| BNT4392 | CLUTCH CAM |
| BNT4431 | WASHER |
| BNT4586 | ROLLER CLUTCH BEARING |
| BNT4613 | HANDLE KNOB SEAL |
| BNT4614 | HANDLE KNOB |
| BNT4638 | CLUTCH PAWL |
| BNT4692 | B-100 OIL (ACCESSORY) |
| BNT4693 | HANDLE NUT PLATE |
| Part Number | Part Description |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT1302 RD 4812 | CLUTCH CAM SCREW |
| BNT1465 | CLUTCH PAWL SPRING |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT2120 | CLICK PLATE RETAINER |
| BNT2121 | STAR DRAG CLICK |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2127 | STAR DRAG SPACER |
| BNT2128 | BEARING WASHER |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2253 | DRIVE SHAFT COVER SCREW |
| BNT2717 | E LOCK |
| BNT2819 | WORM SPACER |
| BNT3036 | LEVEL WIND GUARD |
| BNT3076 | O RING |
| BNT3217 | IDLE GEAR A |
| BNT3219 | IDLE GEAR C |
| BNT3481 | DRAG WASHER |
| BNT3548 | DRAG WASHER |
| BNT3623 | CAST CONTROL CAP RETAINER |
| BNT3627 | BALL BEARING MADE IN JAPAN |
| BNT3660 | WRENCH (ACCESSORY) |
| BNT3744 | SCREW |
| BNT3748 | SCREW |
| BNT3814 | KEY WASHER |
| BNT3816 | ANTI-REVERSE RATCHET |
| BNT3825 | SCREW |
| BNT3918 | WASHER |
| BNT3927 | BALL BEARING MADE IN JAPAN |
| BNT3936 | CLICK SPRING |
| BNT3937 | CLICK PIN |
| BNT4033 | WASHER |
| BNT4034 | ANTI-THRUST WASHER |
| BNT4036 | LINE GUIDE PAWL |
| BNT4116 | SCREW |
| BNT4187 | BALL BEARING MADE IN THILAND |
| BNT4194 | BALL BEARING MADE IN THAILAND |
| BNT4316 | SCREW |
| BNT4389 | YOKE SPRING |
| BNT4390 | YOKE |
| BNT4392 | CLUTCH CAM |
| BNT4431 | WASHER |
| BNT4586 | ROLLER CLUTCH BEARING |
| BNT4613 | HANDLE KNOB SEAL |
| BNT4614 | HANDLE KNOB |
| BNT4638 | CLUTCH PAWL |
| BNT4692 | B-100 OIL (ACCESSORY) |
| BNT4693 | HANDLE NUT PLATE |
