CAIUS - CIS201
CAIUS

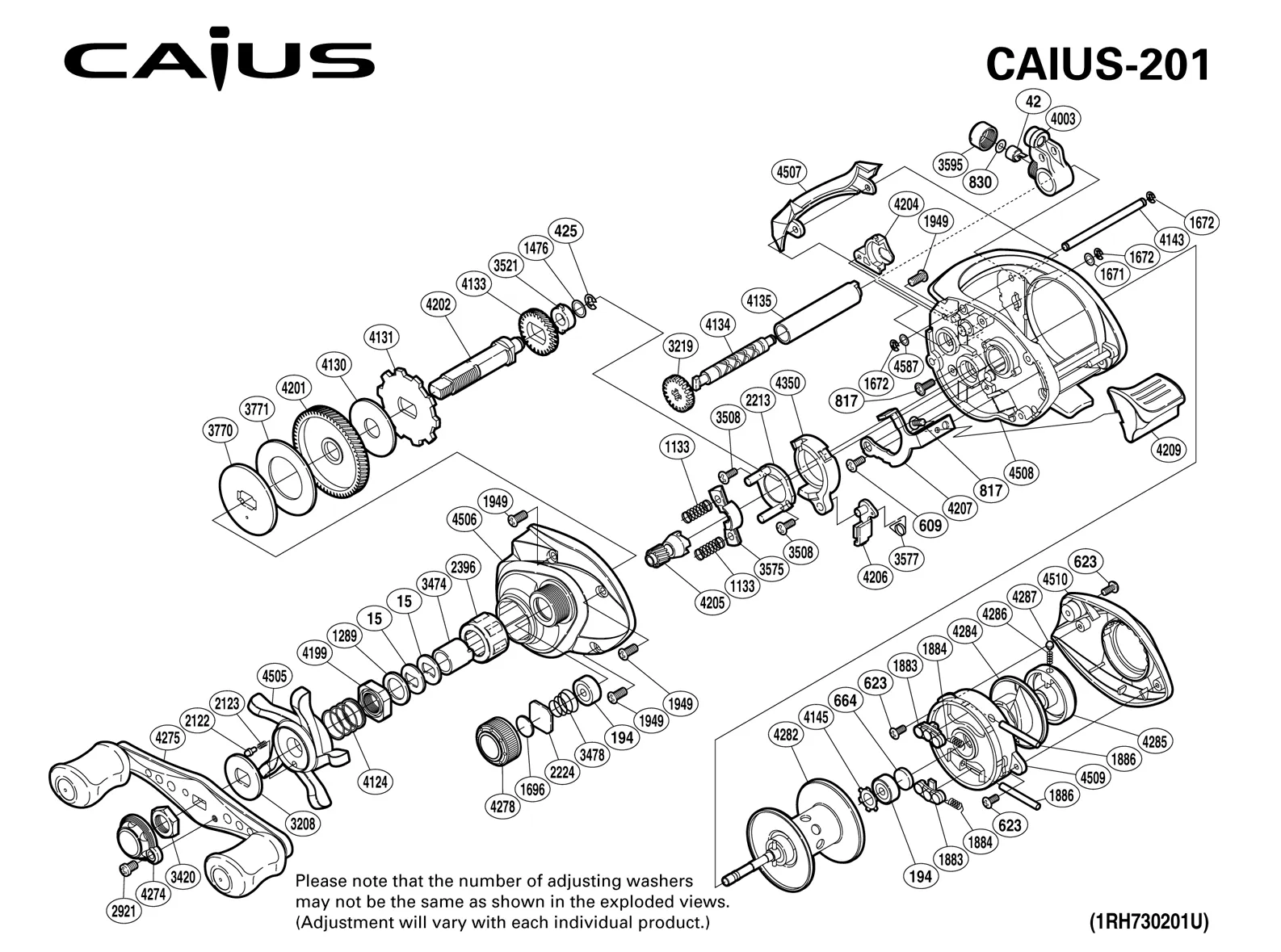

CAIUS - CIS201: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0015 | DRAG SPRING WASHER |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0194 | BALL BEARING(1.64G)MADE IN JAP |
| BNT0425 | CLUTCH BUTTON LOCK |
| BNT0609 | DRIVE SHAFT RETAINER SCREW |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0817 RD 5690 | MULTI PURPOSE SCREW |
| BNT0830 | SPACER (OPTIONAL) |
| BNT1133 | YOKE SPRING |
| BNT1289 | STAR DRAG SPACER |
| BNT1476 | DRIVE SHAFT WASHER D |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1883 | MAGNET RETAINER |
| BNT1884 | |
| BNT1886 | MAGNET RETAINER SHAFT |
| BNT1949 | LEFT SIDE PLATE SCREW |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2213 | CLUTCH CAM RETAINER |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2396 | ROLLER CLUTCH BEARING |
| BNT2921 | BRAKE CASE SCREW |
| BNT3208 | STAR DRAG CLICK PLATE |
| BNT3219 | IDLE GEAR C |
| BNT3420 | HANDLE NUT |
| BNT3474 | ROLLER CLUTCH INNER TUBE |
| BNT3478 | SPOOL TENSION SPRING |
| BNT3508 RD 3402 | SCREW |
| BNT3521 | DRIVE SHAFT BUSHING |
| BNT3575 | YOKE |
| BNT3577 | CLUTCH PAWL SPRING |
| Part Number | Part Description |
| BNT0015 | DRAG SPRING WASHER |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0194 | BALL BEARING(1.64G)MADE IN JAP |
| BNT0425 | CLUTCH BUTTON LOCK |
| BNT0609 | DRIVE SHAFT RETAINER SCREW |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0817 RD 5690 | MULTI PURPOSE SCREW |
| BNT0830 | SPACER (OPTIONAL) |
| BNT1133 | YOKE SPRING |
| BNT1289 | STAR DRAG SPACER |
| BNT1476 | DRIVE SHAFT WASHER D |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1883 | MAGNET RETAINER |
| BNT1884 | |
| BNT1886 | MAGNET RETAINER SHAFT |
| BNT1949 | LEFT SIDE PLATE SCREW |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2213 | CLUTCH CAM RETAINER |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2396 | ROLLER CLUTCH BEARING |
| BNT2921 | BRAKE CASE SCREW |
| BNT3208 | STAR DRAG CLICK PLATE |
| BNT3219 | IDLE GEAR C |
| BNT3420 | HANDLE NUT |
| BNT3474 | ROLLER CLUTCH INNER TUBE |
| BNT3478 | SPOOL TENSION SPRING |
| BNT3508 RD 3402 | SCREW |
| BNT3521 | DRIVE SHAFT BUSHING |
| BNT3575 | YOKE |
| BNT3577 | CLUTCH PAWL SPRING |
