CALAIS - CL200DC

CALAIS - CL200DC

CALAIS

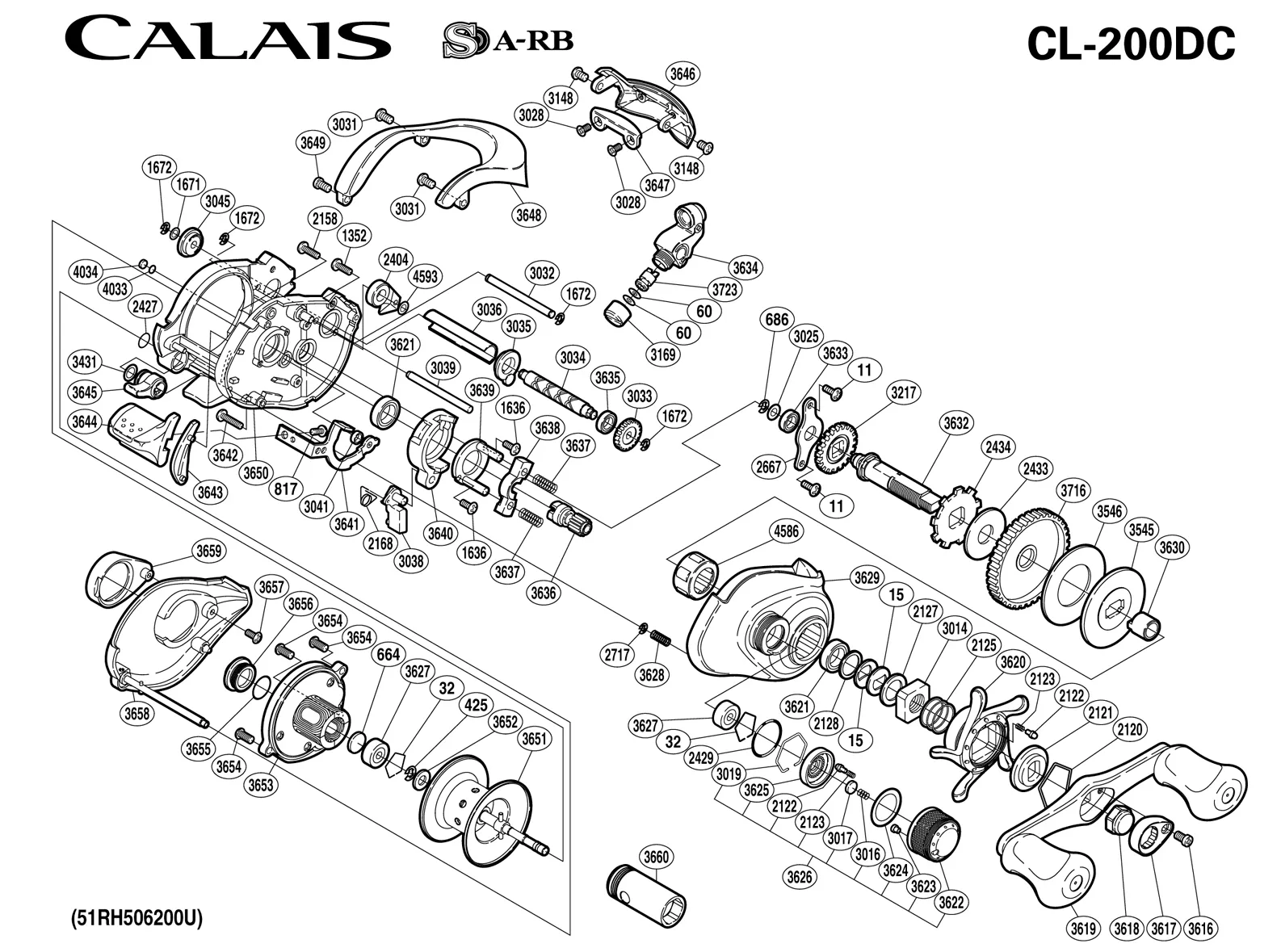

CALAIS - CL200DC: schema di montaggio (esploso) e parti di ricambio.

Part NumberPart Description
BNT0011DRIVE SHAFT RETAINER SCREW
BNT0015DRAG SPRING WASHER
BNT0032BEARING RETAINER
BNT0060SPACER (OPTIONAL)
BNT0425CLUTCH BUTTON LOCK
BNT0664SPACER (B)
BNT0686E LOCK
BNT0817 RD 5690MULTI PURPOSE SCREW
BNT1352
BNT1636CLUTCH CAM SCREW
BNT1671WORM SHAFT WASHER (B)
BNT1672E LOCK
BNT2120CLICK PLATE RETAINER
BNT2121STAR DRAG CLICK
BNT2122CLICK PIN
BNT2123CLICK SPRING
BNT2125STAR DRAG SPRING
BNT2127STAR DRAG SPACER
BNT2128BEARING WASHER
BNT2158RIGHT SIDE PLATE SCREW
BNT2168CLUTCH PAWL SPRING
BNT2404ANTI-REVERSE PAWL
BNT2427O RING
BNT2429 TGT0438"O" RING
BNT2433DRAG WASHER (A)
BNT2434ANTI-REVERSE RATCHET
BNT2667DRIVE SHAFT RETAINER
BNT2717E LOCK
BNT2949ROLLER CLUTCH BEARING (ARB)
BNT3014STAR DRAG NUT
BNT3016SPOOL TENSION SPRING
BNT3017SPOOL TENSION SPACER
Part NumberPart Description
BNT0011DRIVE SHAFT RETAINER SCREW
BNT0015DRAG SPRING WASHER
BNT0032BEARING RETAINER
BNT0060SPACER (OPTIONAL)
BNT0425CLUTCH BUTTON LOCK
BNT0664SPACER (B)
BNT0686E LOCK
BNT0817 RD 5690MULTI PURPOSE SCREW
BNT1352
BNT1636CLUTCH CAM SCREW
BNT1671WORM SHAFT WASHER (B)
BNT1672E LOCK
BNT2120CLICK PLATE RETAINER
BNT2121STAR DRAG CLICK
BNT2122CLICK PIN
BNT2123CLICK SPRING
BNT2125STAR DRAG SPRING
BNT2127STAR DRAG SPACER
BNT2128BEARING WASHER
BNT2158RIGHT SIDE PLATE SCREW
BNT2168CLUTCH PAWL SPRING
BNT2404ANTI-REVERSE PAWL
BNT2427O RING
BNT2429 TGT0438"O" RING
BNT2433DRAG WASHER (A)
BNT2434ANTI-REVERSE RATCHET
BNT2667DRIVE SHAFT RETAINER
BNT2717E LOCK
BNT2949ROLLER CLUTCH BEARING (ARB)
BNT3014STAR DRAG NUT
BNT3016SPOOL TENSION SPRING
BNT3017SPOOL TENSION SPACER
