CHRONARCH - CH200E6
CHRONARCH

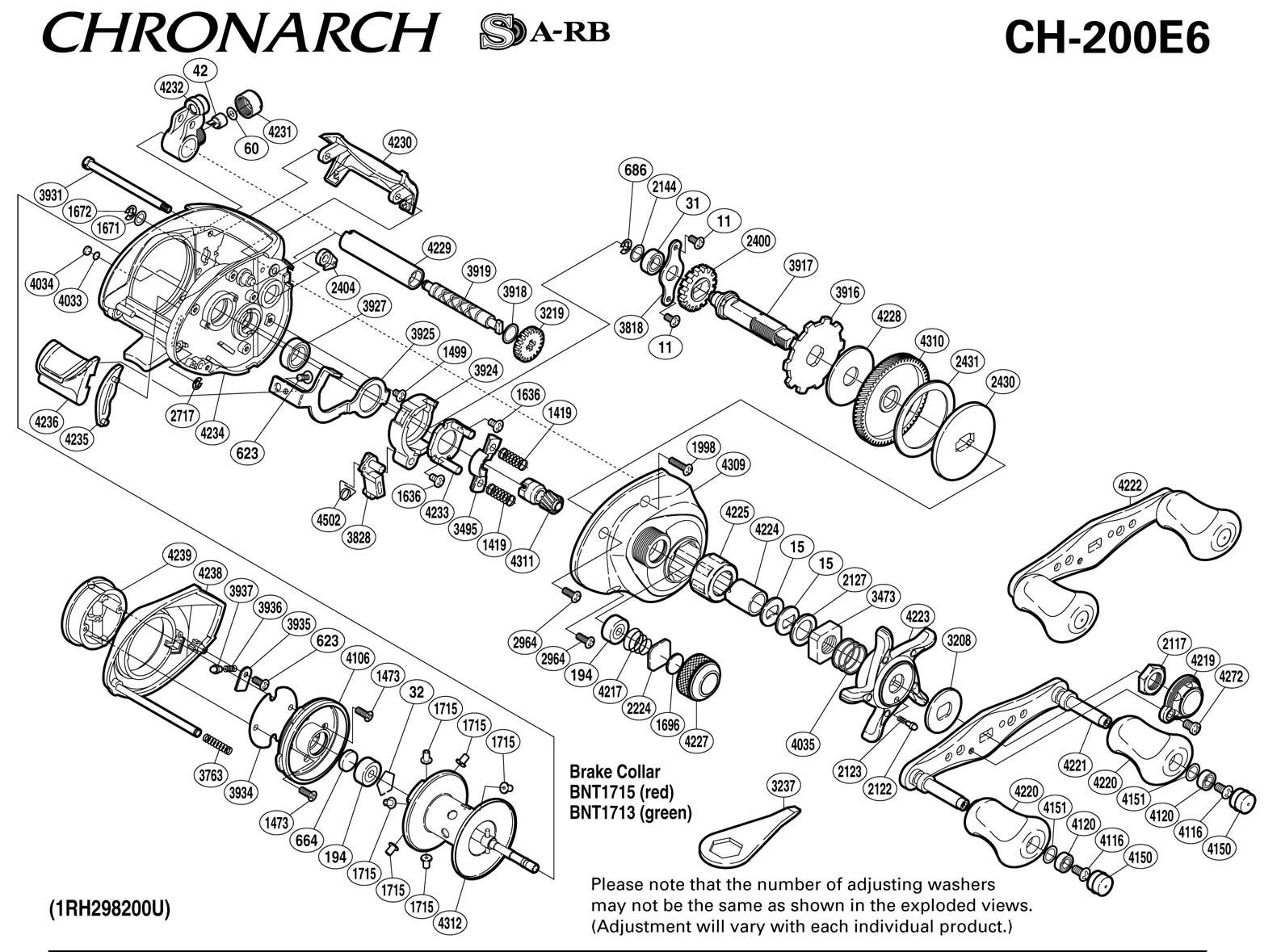

CHRONARCH - CH200E6: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0031 TGT0309 | SPOOL SHAFT BEARING (0.65G)MAD |
| BNT0032 | BEARING RETAINER |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0194 | BALL BEARING(1.64G)MADE IN JAP |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT1419 | YOKE SPRING |
| BNT1473 | MULTI PURPOSE SCREW |
| BNT1499 | CLUTCH PLATE SCREW |
| BNT1636 | CLUTCH CAM SCREW |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1713 | BRAKE COLLAR (GREEN) |
| BNT1715 | BRAKE COLLAR (RED) |
| BNT1998 | SIDE PLATE SCREW (LONG) |
| BNT2117 | HANDLE NUT |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2127 | STAR DRAG SPACER |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2168 | CLUTCH PAWL SPRING |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2400 | IDLE GEAR (A) |
| BNT2404 | ANTI-REVERSE PAWL |
| BNT2430 | KEY WASHER |
| BNT2431 | DRAG WASHER (C) |
| BNT2717 | E LOCK |
| BNT2964 | SIDE PLATE COVER SCREW |
| BNT3208 | STAR DRAG CLICK PLATE |
| BNT3219 | IDLE GEAR C |
| BNT3237 | WRENCH (ACCESSORY) |
| BNT3473 | STAR DRAG NUT |
| BNT3478 | SPOOL TENSION SPRING |
| BNT3495 | YOKE |
| BNT3763 | SIDE PLATE SPRING |
| BNT3818 | DRIVE SHAFT RETAINER |
| BNT3828 | CLUTCH PAWL |
| BNT3916 | ANTI-REVERSE RATCHET |
| Part Number | Part Description |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0031 TGT0309 | SPOOL SHAFT BEARING (0.65G)MAD |
| BNT0032 | BEARING RETAINER |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0194 | BALL BEARING(1.64G)MADE IN JAP |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT1419 | YOKE SPRING |
| BNT1473 | MULTI PURPOSE SCREW |
| BNT1499 | CLUTCH PLATE SCREW |
| BNT1636 | CLUTCH CAM SCREW |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1713 | BRAKE COLLAR (GREEN) |
| BNT1715 | BRAKE COLLAR (RED) |
| BNT1998 | SIDE PLATE SCREW (LONG) |
| BNT2117 | HANDLE NUT |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2127 | STAR DRAG SPACER |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2168 | CLUTCH PAWL SPRING |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2400 | IDLE GEAR (A) |
| BNT2404 | ANTI-REVERSE PAWL |
| BNT2430 | KEY WASHER |
| BNT2431 | DRAG WASHER (C) |
| BNT2717 | E LOCK |
| BNT2964 | SIDE PLATE COVER SCREW |
| BNT3208 | STAR DRAG CLICK PLATE |
| BNT3219 | IDLE GEAR C |
| BNT3237 | WRENCH (ACCESSORY) |
| BNT3473 | STAR DRAG NUT |
| BNT3478 | SPOOL TENSION SPRING |
| BNT3495 | YOKE |
| BNT3763 | SIDE PLATE SPRING |
| BNT3818 | DRIVE SHAFT RETAINER |
| BNT3828 | CLUTCH PAWL |
| BNT3916 | ANTI-REVERSE RATCHET |
