CHRONARCH CI4 - CH151CI4HG
CHRONARCH CI4

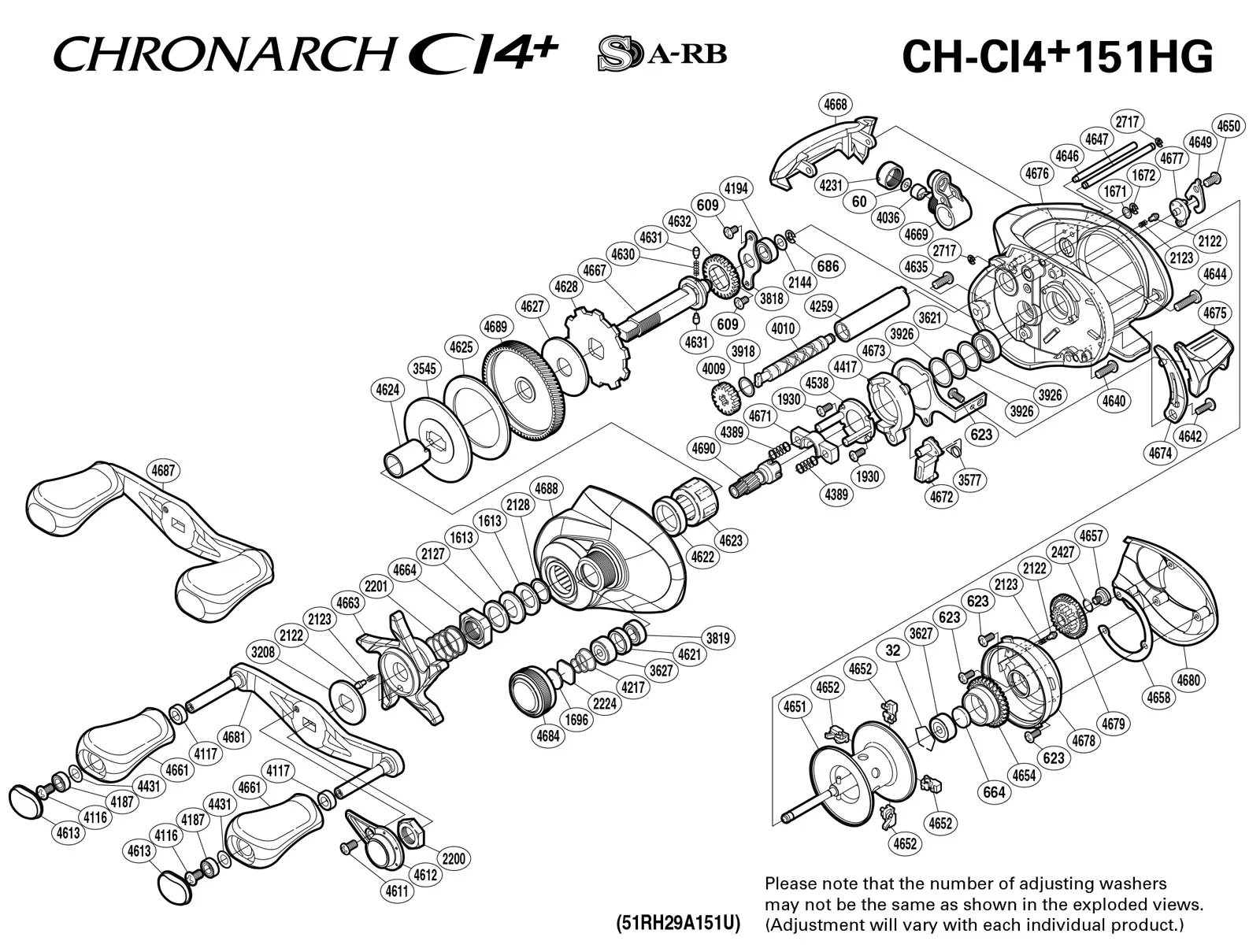

CHRONARCH CI4 - CH151CI4HG: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0032 | BEARING RETAINER |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0609 | DRIVE SHAFT RETAINER SCREW |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT1613 | DRAG SPRING WASHER (L) |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1930 RD 5947 | CLUTCH CAM SCREW |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2127 | STAR DRAG SPACER |
| BNT2128 | BEARING WASHER |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2200 | HANDLE NUT |
| BNT2201 | STAR DRAG SPRING |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2427 | O RING |
| BNT2717 | E LOCK |
| BNT3208 | STAR DRAG CLICK PLATE |
| BNT3545 | KEY WASHER |
| BNT3577 | CLUTCH PAWL SPRING |
| BNT3621 | BALL BEARING MADE IN JAPAN |
| BNT3627 | BALL BEARING MADE IN JAPAN |
| BNT3818 | DRIVE SHAFT RETAINER |
| BNT3819 | BALL BEARING MADE IN JAPAN |
| BNT3918 | WASHER |
| BNT3926 | WASHER |
| BNT4009 | IDLE GEAR |
| BNT4010 | WORM SHAFT |
| BNT4036 | LINE GUIDE PAWL |
| BNT4116 | SCREW |
| BNT4117 | HANDLE KNOB BUSHING |
| BNT4187 | BALL BEARING MADE IN THILAND |
| BNT4194 | BALL BEARING MADE IN THAILAND |
| BNT4217 | SPOOL TENSION SPRING |
| BNT4231 | PAWL CAP |
| BNT4259 | LEVEL WIND GUARD |
| BNT4389 | YOKE SPRING |
| BNT4417 | CLUTCH CAM |
| BNT4431 | WASHER |
| BNT4538 | CLUTCH CAM RETAINER |
| BNT4611 | SCREW |
| BNT4612 | HANDLE RETAINER |
| Part Number | Part Description |
| BNT0032 | BEARING RETAINER |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0609 | DRIVE SHAFT RETAINER SCREW |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT1613 | DRAG SPRING WASHER (L) |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1930 RD 5947 | CLUTCH CAM SCREW |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2127 | STAR DRAG SPACER |
| BNT2128 | BEARING WASHER |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2200 | HANDLE NUT |
| BNT2201 | STAR DRAG SPRING |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2427 | O RING |
| BNT2717 | E LOCK |
| BNT3208 | STAR DRAG CLICK PLATE |
| BNT3545 | KEY WASHER |
| BNT3577 | CLUTCH PAWL SPRING |
| BNT3621 | BALL BEARING MADE IN JAPAN |
| BNT3627 | BALL BEARING MADE IN JAPAN |
| BNT3818 | DRIVE SHAFT RETAINER |
| BNT3819 | BALL BEARING MADE IN JAPAN |
| BNT3918 | WASHER |
| BNT3926 | WASHER |
| BNT4009 | IDLE GEAR |
| BNT4010 | WORM SHAFT |
| BNT4036 | LINE GUIDE PAWL |
| BNT4116 | SCREW |
| BNT4117 | HANDLE KNOB BUSHING |
| BNT4187 | BALL BEARING MADE IN THILAND |
| BNT4194 | BALL BEARING MADE IN THAILAND |
| BNT4217 | SPOOL TENSION SPRING |
| BNT4231 | PAWL CAP |
| BNT4259 | LEVEL WIND GUARD |
| BNT4389 | YOKE SPRING |
| BNT4417 | CLUTCH CAM |
| BNT4431 | WASHER |
| BNT4538 | CLUTCH CAM RETAINER |
| BNT4611 | SCREW |
| BNT4612 | HANDLE RETAINER |
