CORE - CORE100MG
CORE

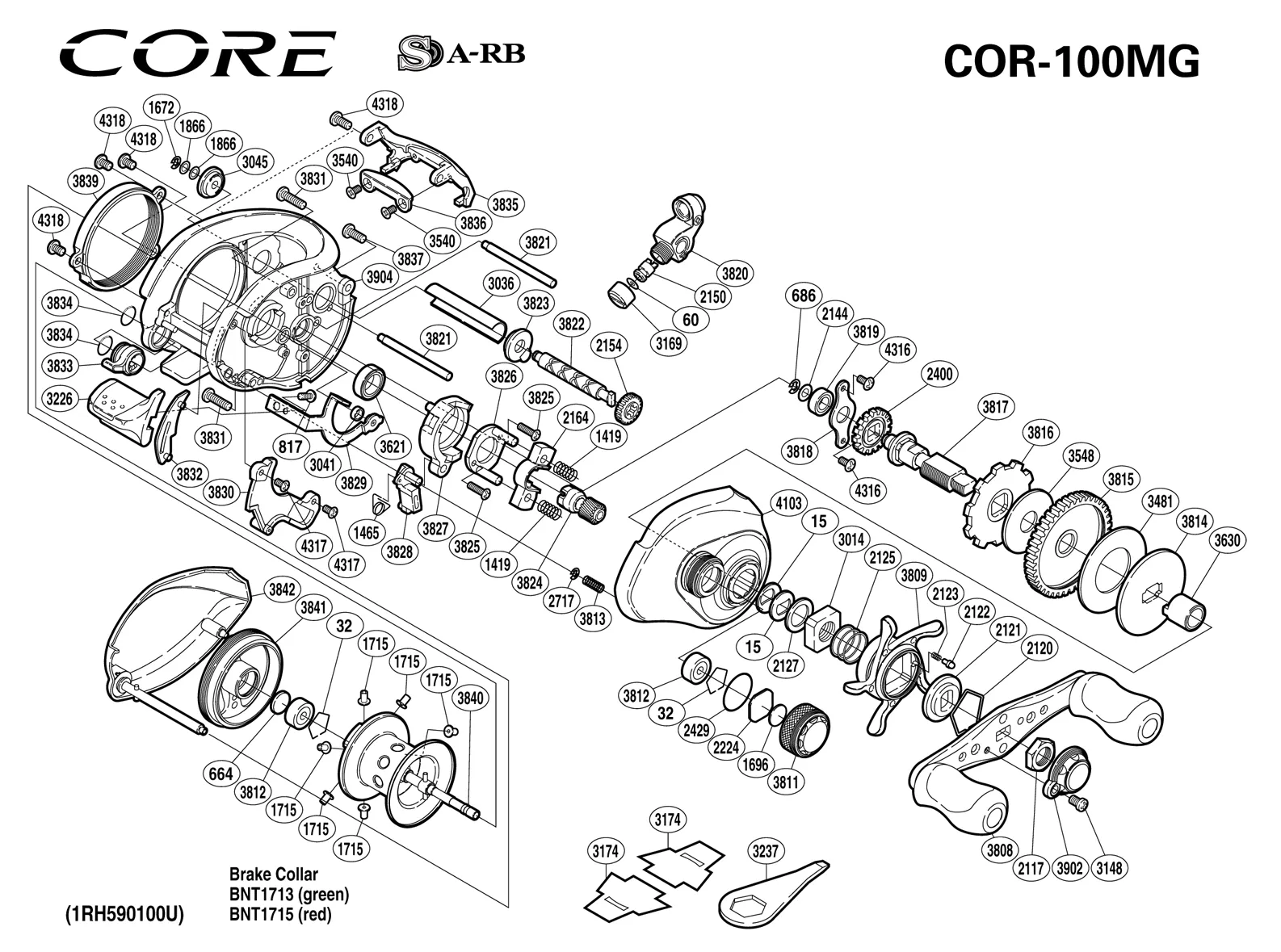

CORE - CORE100MG: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0817 RD 5690 | MULTI PURPOSE SCREW |
| BNT1419 | YOKE SPRING |
| BNT1465 | CLUTCH PAWL SPRING |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1713 | BRAKE COLLAR (GREEN) |
| BNT1715 | BRAKE COLLAR (RED) |
| BNT1866 | SPACER |
| BNT2117 | HANDLE NUT |
| BNT2120 | CLICK PLATE RETAINER |
| BNT2121 | STAR DRAG CLICK |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2125 | STAR DRAG SPRING |
| BNT2127 | STAR DRAG SPACER |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2146 | LEVEL GUARD SCREW |
| BNT2150 | LINE GUIDE PAWL |
| BNT2154 | IDLE GEAR (C) |
| BNT2164 | YOKE |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2400 | IDLE GEAR (A) |
| BNT2429 TGT0438 | "O" RING |
| BNT2717 | E LOCK |
| BNT3014 | STAR DRAG NUT |
| BNT3036 | LEVEL WIND GUARD |
| BNT3041 | CLUTCH PLATE SUPPORT RING |
| BNT3045 | WORM BUSHING (B) |
| BNT3148 | SCREW |
| BNT3169 | PAWL CAP |
| BNT3174 | REEL SEAT SPACER |
| BNT3226 | QUICK-FIRE II CLUTCH BAR |
| BNT3237 | WRENCH (ACCESSORY) |
| BNT3481 | DRAG WASHER |
| Part Number | Part Description |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0817 RD 5690 | MULTI PURPOSE SCREW |
| BNT1419 | YOKE SPRING |
| BNT1465 | CLUTCH PAWL SPRING |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1713 | BRAKE COLLAR (GREEN) |
| BNT1715 | BRAKE COLLAR (RED) |
| BNT1866 | SPACER |
| BNT2117 | HANDLE NUT |
| BNT2120 | CLICK PLATE RETAINER |
| BNT2121 | STAR DRAG CLICK |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2125 | STAR DRAG SPRING |
| BNT2127 | STAR DRAG SPACER |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2146 | LEVEL GUARD SCREW |
| BNT2150 | LINE GUIDE PAWL |
| BNT2154 | IDLE GEAR (C) |
| BNT2164 | YOKE |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2400 | IDLE GEAR (A) |
| BNT2429 TGT0438 | "O" RING |
| BNT2717 | E LOCK |
| BNT3014 | STAR DRAG NUT |
| BNT3036 | LEVEL WIND GUARD |
| BNT3041 | CLUTCH PLATE SUPPORT RING |
| BNT3045 | WORM BUSHING (B) |
| BNT3148 | SCREW |
| BNT3169 | PAWL CAP |
| BNT3174 | REEL SEAT SPACER |
| BNT3226 | QUICK-FIRE II CLUTCH BAR |
| BNT3237 | WRENCH (ACCESSORY) |
| BNT3481 | DRAG WASHER |
