CURADO - CU100D
CURADO

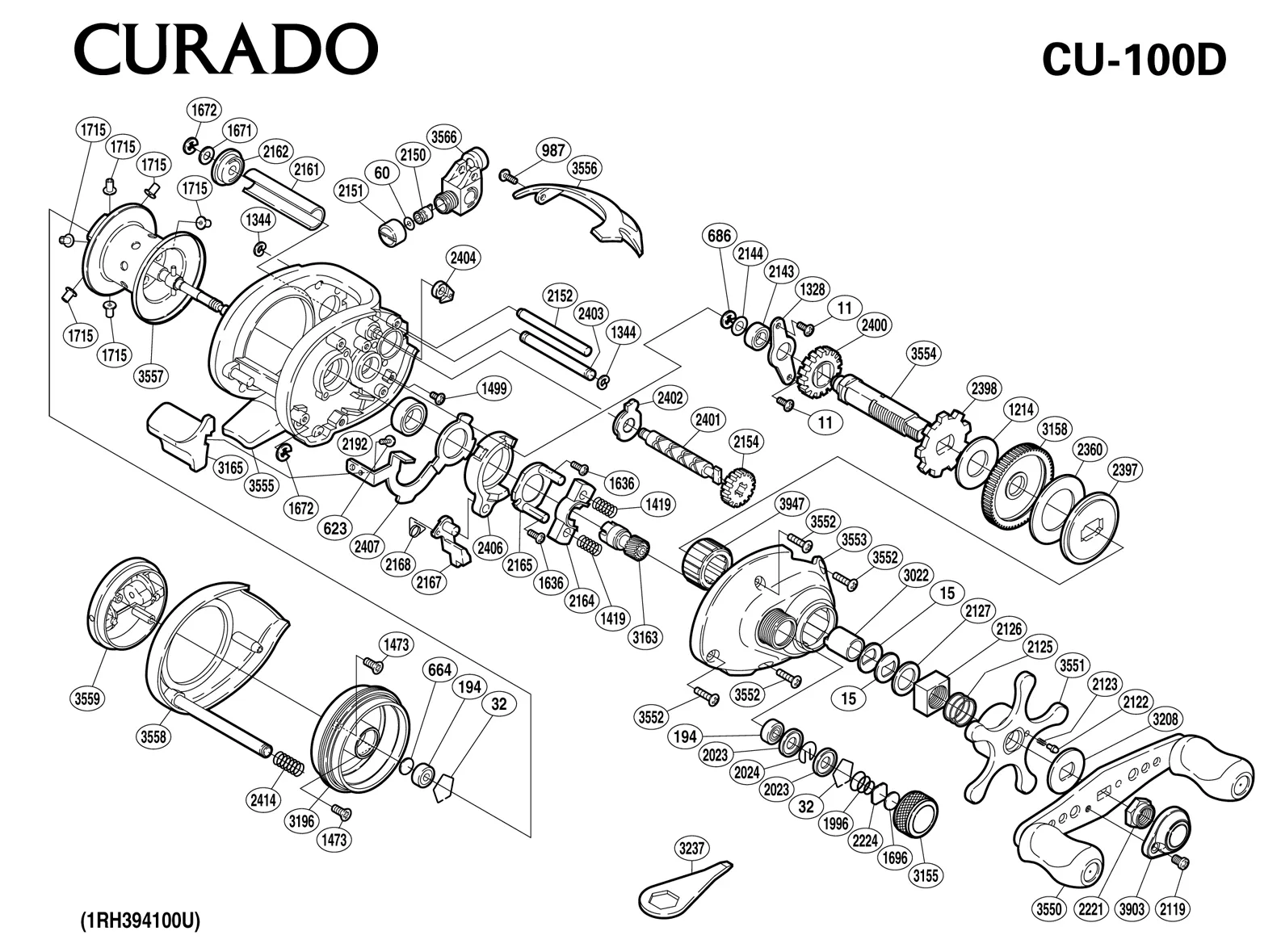

CURADO - CU100D: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0194 | BALL BEARING(1.64G)MADE IN JAP |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0987 RD 6010 | STABILIZER BAR SCREW |
| BNT1214 | DRAG WASHER (A) |
| BNT1328 | DRIVE SHAFT RETAINER |
| BNT1344 | "C" LOCK |
| BNT1419 | YOKE SPRING |
| BNT1473 | MULTI PURPOSE SCREW |
| BNT1499 | CLUTCH PLATE SCREW |
| BNT1636 | CLUTCH CAM SCREW |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1715 | BRAKE COLLAR (RED) |
| BNT1996 | SPOOL TENSION SPRING |
| BNT2023 | SPOOL SHAFT CLIP HOLDER |
| BNT2024 | SPOOL SHAFT CLIP |
| BNT2119 | NUT PLATE SCREW |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2125 | STAR DRAG SPRING |
| BNT2126 | STAR DRAG NUT |
| BNT2127 | STAR DRAG SPACER |
| BNT2143 | BALL BEARING |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2150 | LINE GUIDE PAWL |
| BNT2151 | PAWL CAP |
| BNT2152 | LEVEL WIND GUIDE |
| BNT2154 | IDLE GEAR (C) |
| BNT2161 | LEVEL WIND GUARD |
| BNT2162 | WORM BUSHING (B) |
| BNT2164 | YOKE |
| Part Number | Part Description |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0194 | BALL BEARING(1.64G)MADE IN JAP |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0987 RD 6010 | STABILIZER BAR SCREW |
| BNT1214 | DRAG WASHER (A) |
| BNT1328 | DRIVE SHAFT RETAINER |
| BNT1344 | "C" LOCK |
| BNT1419 | YOKE SPRING |
| BNT1473 | MULTI PURPOSE SCREW |
| BNT1499 | CLUTCH PLATE SCREW |
| BNT1636 | CLUTCH CAM SCREW |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1715 | BRAKE COLLAR (RED) |
| BNT1996 | SPOOL TENSION SPRING |
| BNT2023 | SPOOL SHAFT CLIP HOLDER |
| BNT2024 | SPOOL SHAFT CLIP |
| BNT2119 | NUT PLATE SCREW |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2125 | STAR DRAG SPRING |
| BNT2126 | STAR DRAG NUT |
| BNT2127 | STAR DRAG SPACER |
| BNT2143 | BALL BEARING |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2150 | LINE GUIDE PAWL |
| BNT2151 | PAWL CAP |
| BNT2152 | LEVEL WIND GUIDE |
| BNT2154 | IDLE GEAR (C) |
| BNT2161 | LEVEL WIND GUARD |
| BNT2162 | WORM BUSHING (B) |
| BNT2164 | YOKE |
