CURADO - CU200DHSV
CURADO

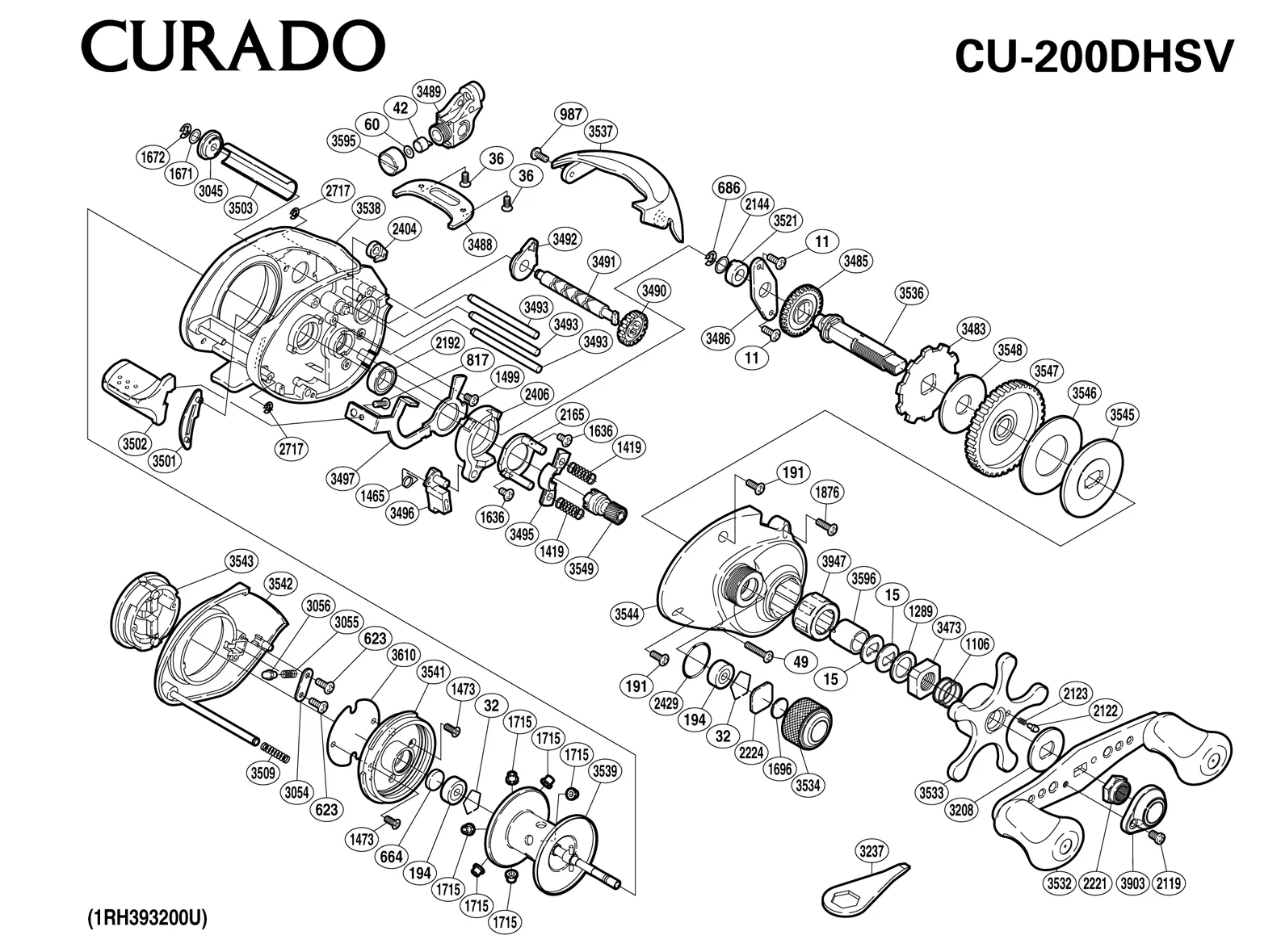

CURADO - CU200DHSV: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0036 | |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0049 | |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0191 | SIDE PLATE SCREW |
| BNT0194 | BALL BEARING(1.64G)MADE IN JAP |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0817 RD 5690 | MULTI PURPOSE SCREW |
| BNT0987 RD 6010 | STABILIZER BAR SCREW |
| BNT1106 | STAR DRAG SPRING |
| BNT1289 | STAR DRAG SPACER |
| BNT1419 | YOKE SPRING |
| BNT1465 | CLUTCH PAWL SPRING |
| BNT1473 | MULTI PURPOSE SCREW |
| BNT1499 | CLUTCH PLATE SCREW |
| BNT1636 | CLUTCH CAM SCREW |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1715 | BRAKE COLLAR (RED) |
| BNT2119 | NUT PLATE SCREW |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2165 | CLUTCH CAM RETAINER |
| BNT2192 BNT3927 | BALL BEARING |
| BNT2221 | HANDLE NUT |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2394 | |
| BNT2396 | ROLLER CLUTCH BEARING |
| BNT2404 | ANTI-REVERSE PAWL |
| BNT2406 | CLUTCH CAM |
| BNT2429 TGT0438 | "O" RING |
| BNT2717 | E LOCK |
| BNT3045 | WORM BUSHING (B) |
| BNT3054 | DIAL CLICK KEEPER |
| Part Number | Part Description |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0036 | |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0049 | |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0191 | SIDE PLATE SCREW |
| BNT0194 | BALL BEARING(1.64G)MADE IN JAP |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0817 RD 5690 | MULTI PURPOSE SCREW |
| BNT0987 RD 6010 | STABILIZER BAR SCREW |
| BNT1106 | STAR DRAG SPRING |
| BNT1289 | STAR DRAG SPACER |
| BNT1419 | YOKE SPRING |
| BNT1465 | CLUTCH PAWL SPRING |
| BNT1473 | MULTI PURPOSE SCREW |
| BNT1499 | CLUTCH PLATE SCREW |
| BNT1636 | CLUTCH CAM SCREW |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1715 | BRAKE COLLAR (RED) |
| BNT2119 | NUT PLATE SCREW |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2165 | CLUTCH CAM RETAINER |
| BNT2192 BNT3927 | BALL BEARING |
| BNT2221 | HANDLE NUT |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2394 | |
| BNT2396 | ROLLER CLUTCH BEARING |
| BNT2404 | ANTI-REVERSE PAWL |
| BNT2406 | CLUTCH CAM |
| BNT2429 TGT0438 | "O" RING |
| BNT2717 | E LOCK |
| BNT3045 | WORM BUSHING (B) |
| BNT3054 | DIAL CLICK KEEPER |
