CURADO - CU200G7
CURADO

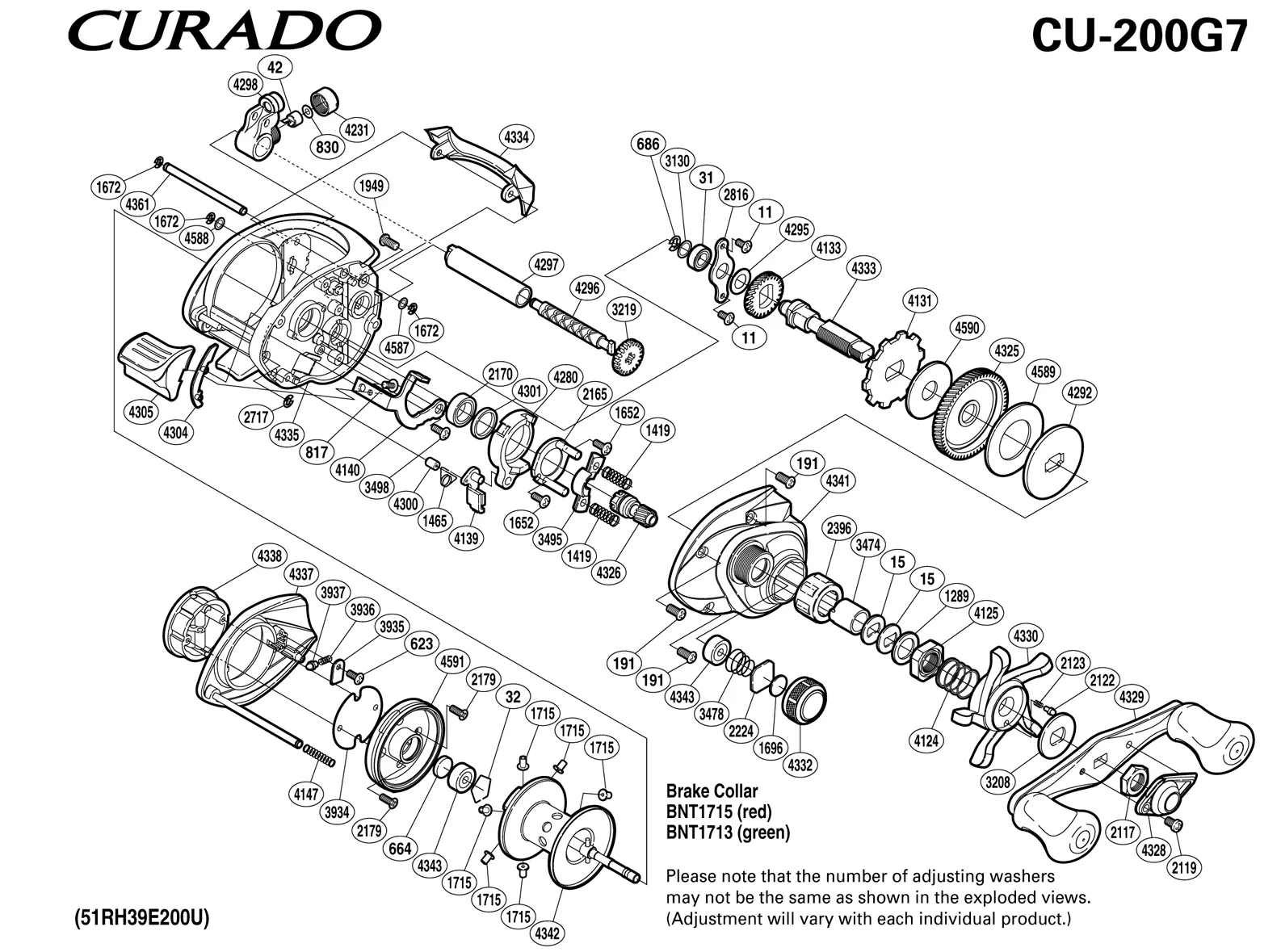

CURADO - CU200G7: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0031 TGT0309 | SPOOL SHAFT BEARING (0.65G)MAD |
| BNT0032 | BEARING RETAINER |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0191 | SIDE PLATE SCREW |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0817 RD 5690 | MULTI PURPOSE SCREW |
| BNT0830 | SPACER (OPTIONAL) |
| BNT1289 | STAR DRAG SPACER |
| BNT1419 | YOKE SPRING |
| BNT1465 | CLUTCH PAWL SPRING |
| BNT1652 TT 0563 | CLICK PLATE SCREW |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1713 | BRAKE COLLAR (GREEN) |
| BNT1715 | BRAKE COLLAR (RED) |
| BNT1949 | LEFT SIDE PLATE SCREW |
| BNT2117 | HANDLE NUT |
| BNT2119 | NUT PLATE SCREW |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2165 | CLUTCH CAM RETAINER |
| BNT2170 | BALL BEARING |
| BNT2179 | BRAKE CASE SCREW |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2396 | ROLLER CLUTCH BEARING |
| BNT2404 | ANTI-REVERSE PAWL |
| BNT2664 | DRAG WASHER (A) |
| BNT2717 | E LOCK |
| BNT2816 | DRIVE SHAFT RETAINER |
| BNT3130 | WASHER |
| BNT3208 | STAR DRAG CLICK PLATE |
| BNT3219 | IDLE GEAR C |
| BNT3241 | |
| BNT3474 | ROLLER CLUTCH INNER TUBE |
| BNT3478 | SPOOL TENSION SPRING |
| Part Number | Part Description |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0031 TGT0309 | SPOOL SHAFT BEARING (0.65G)MAD |
| BNT0032 | BEARING RETAINER |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0191 | SIDE PLATE SCREW |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0817 RD 5690 | MULTI PURPOSE SCREW |
| BNT0830 | SPACER (OPTIONAL) |
| BNT1289 | STAR DRAG SPACER |
| BNT1419 | YOKE SPRING |
| BNT1465 | CLUTCH PAWL SPRING |
| BNT1652 TT 0563 | CLICK PLATE SCREW |
| BNT1671 | WORM SHAFT WASHER (B) |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1713 | BRAKE COLLAR (GREEN) |
| BNT1715 | BRAKE COLLAR (RED) |
| BNT1949 | LEFT SIDE PLATE SCREW |
| BNT2117 | HANDLE NUT |
| BNT2119 | NUT PLATE SCREW |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2165 | CLUTCH CAM RETAINER |
| BNT2170 | BALL BEARING |
| BNT2179 | BRAKE CASE SCREW |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2396 | ROLLER CLUTCH BEARING |
| BNT2404 | ANTI-REVERSE PAWL |
| BNT2664 | DRAG WASHER (A) |
| BNT2717 | E LOCK |
| BNT2816 | DRIVE SHAFT RETAINER |
| BNT3130 | WASHER |
| BNT3208 | STAR DRAG CLICK PLATE |
| BNT3219 | IDLE GEAR C |
| BNT3241 | |
| BNT3474 | ROLLER CLUTCH INNER TUBE |
| BNT3478 | SPOOL TENSION SPRING |
