CURADO E - CU300E



Descrizione


CURADO E

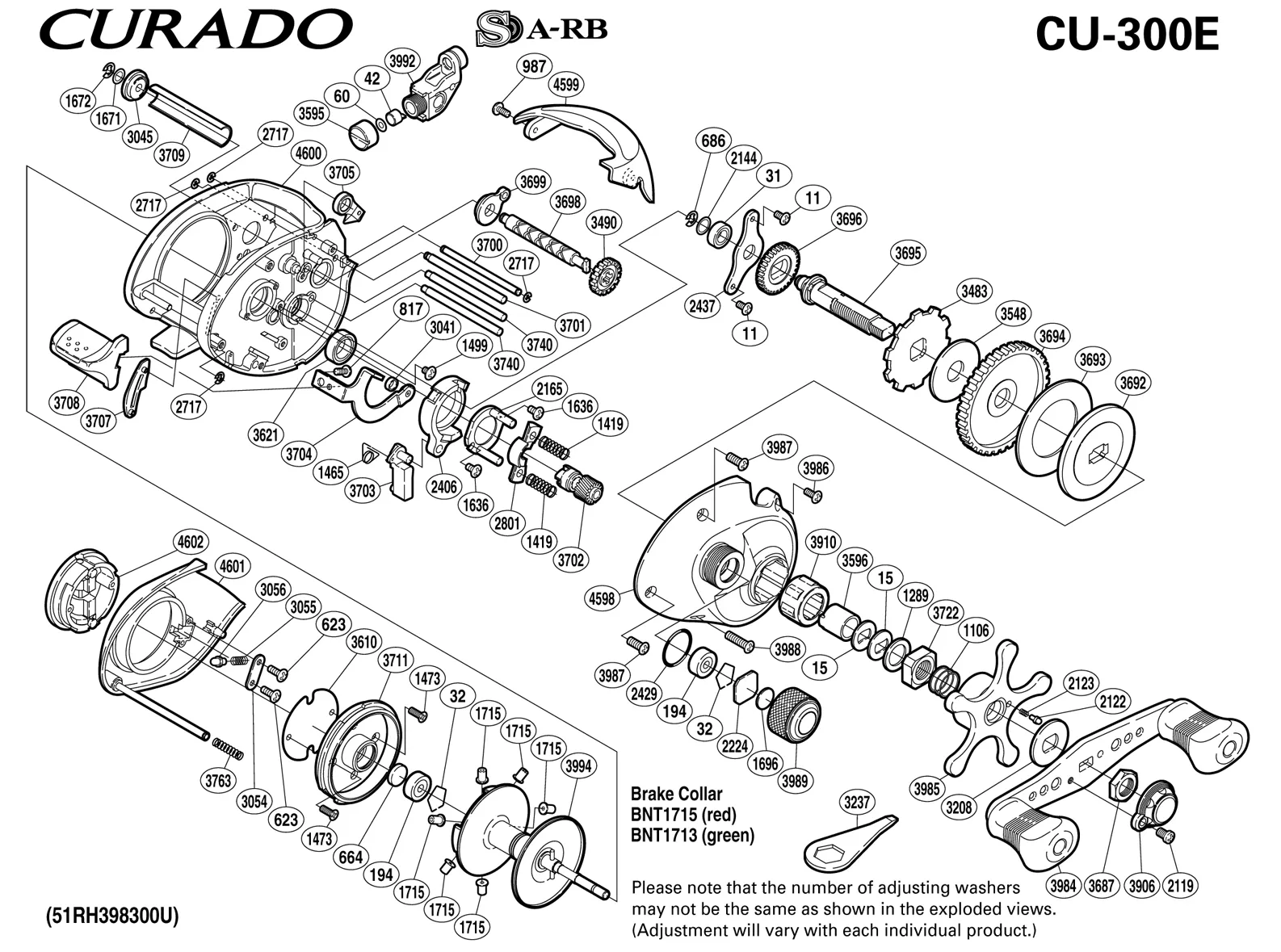

CURADO E - CU300E: schema di montaggio (esploso) e parti di ricambio.

Part NumberPart Description
BNT0011DRIVE SHAFT RETAINER SCREW
BNT0015DRAG SPRING WASHER
BNT0031 TGT0309SPOOL SHAFT BEARING (0.65G)MAD
BNT0032BEARING RETAINER
BNT0042 TGT0520LINE GUIDE PAWL
BNT0060SPACER (OPTIONAL)
BNT0194BALL BEARING(1.64G)MADE IN JAP
BNT0623DIAL CASE SCREW
BNT0664SPACER (B)
BNT0686E LOCK
BNT0817 RD 5690MULTI PURPOSE SCREW
BNT0987 RD 6010STABILIZER BAR SCREW
BNT1106STAR DRAG SPRING
BNT1289STAR DRAG SPACER
BNT1419YOKE SPRING
BNT1465CLUTCH PAWL SPRING
BNT1473MULTI PURPOSE SCREW
BNT1499CLUTCH PLATE SCREW
BNT1636CLUTCH CAM SCREW
BNT1671WORM SHAFT WASHER (B)
BNT1672E LOCK
BNT1696CAST CONTROL SPACER (B)
BNT1713BRAKE COLLAR (GREEN)
BNT1715BRAKE COLLAR (RED)
BNT2119NUT PLATE SCREW
BNT2122CLICK PIN
BNT2123CLICK SPRING
BNT2144DRIVE SHAFT WASHER
BNT2165CLUTCH CAM RETAINER
BNT2224SPOOL TENSION SPACER (A)
BNT2406CLUTCH CAM
BNT2429 TGT0438"O" RING
BNT2437DRIVE SHAFT RETAINER
BNT2717E LOCK
BNT2801YOKE
BNT3041CLUTCH PLATE SUPPORT RING
BNT3045WORM BUSHING (B)
BNT3054DIAL CLICK KEEPER
BNT3055DIAL CLICK SPRING
BNT3056DIAL CLICK PIN
BNT3208STAR DRAG CLICK PLATE
BNT3237WRENCH (ACCESSORY)
Part NumberPart Description
BNT0011DRIVE SHAFT RETAINER SCREW
BNT0015DRAG SPRING WASHER
BNT0031 TGT0309SPOOL SHAFT BEARING (0.65G)MAD
BNT0032BEARING RETAINER
BNT0042 TGT0520LINE GUIDE PAWL
BNT0060SPACER (OPTIONAL)
BNT0194BALL BEARING(1.64G)MADE IN JAP
BNT0623DIAL CASE SCREW
BNT0664SPACER (B)
BNT0686E LOCK
BNT0817 RD 5690MULTI PURPOSE SCREW
BNT0987 RD 6010STABILIZER BAR SCREW
BNT1106STAR DRAG SPRING
BNT1289STAR DRAG SPACER
BNT1419YOKE SPRING
BNT1465CLUTCH PAWL SPRING
BNT1473MULTI PURPOSE SCREW
BNT1499CLUTCH PLATE SCREW
BNT1636CLUTCH CAM SCREW
BNT1671WORM SHAFT WASHER (B)
BNT1672E LOCK
BNT1696CAST CONTROL SPACER (B)
BNT1713BRAKE COLLAR (GREEN)
BNT1715BRAKE COLLAR (RED)
BNT2119NUT PLATE SCREW
BNT2122CLICK PIN
BNT2123CLICK SPRING
BNT2144DRIVE SHAFT WASHER
BNT2165CLUTCH CAM RETAINER
BNT2224SPOOL TENSION SPACER (A)
BNT2406CLUTCH CAM
BNT2429 TGT0438"O" RING
BNT2437DRIVE SHAFT RETAINER
BNT2717E LOCK
BNT2801YOKE
BNT3041CLUTCH PLATE SUPPORT RING
BNT3045WORM BUSHING (B)
BNT3054DIAL CLICK KEEPER
BNT3055DIAL CLICK SPRING
BNT3056DIAL CLICK PIN
BNT3208STAR DRAG CLICK PLATE
BNT3237WRENCH (ACCESSORY)
