METANIUM - MET100HG
METANIUM

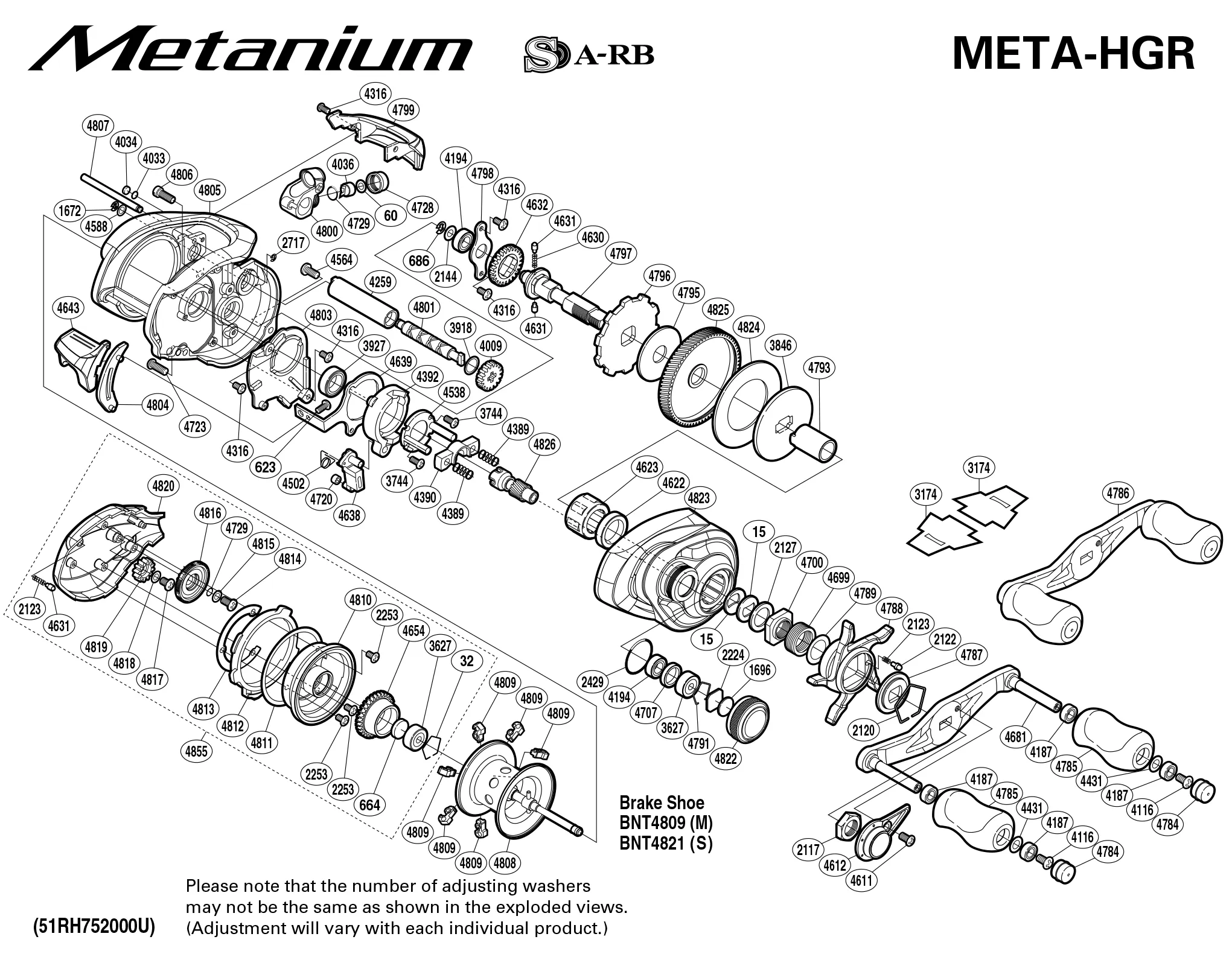

METANIUM - MET100HG: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT2117 | HANDLE NUT |
| BNT2120 | CLICK PLATE RETAINER |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2127 | STAR DRAG SPACER |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2253 | DRIVE SHAFT COVER SCREW |
| BNT2429 TGT0438 | "O" RING |
| BNT2717 | E LOCK |
| BNT3174 | REEL SEAT SPACER |
| BNT3627 | BALL BEARING MADE IN JAPAN |
| BNT3744 | SCREW |
| BNT3846 | KEY WASHER |
| BNT3918 | WASHER |
| BNT3927 | BALL BEARING MADE IN JAPAN |
| BNT4009 | IDLE GEAR |
| BNT4033 | WASHER |
| BNT4034 | ANTI-THRUST WASHER |
| BNT4036 | LINE GUIDE PAWL |
| BNT4116 | SCREW |
| BNT4187 | BALL BEARING MADE IN THILAND |
| BNT4194 | BALL BEARING MADE IN THAILAND |
| BNT4259 | LEVEL WIND GUARD |
| BNT4316 | SCREW |
| BNT4389 | YOKE SPRING |
| BNT4390 | YOKE |
| BNT4392 | CLUTCH CAM |
| BNT4431 | WASHER |
| BNT4502 | CLUTCH PAWL SPRING |
| BNT4538 | CLUTCH CAM RETAINER |
| BNT4564 | SCREW |
| BNT4588 | WASHER |
| BNT4611 | SCREW |
| BNT4612 | HANDLE RETAINER |
| BNT4622 | DRIVE SHAFT HOLDER BUSHING |
| BNT4623 | ROLLER CLUTCH BEARING MADE IN |
| BNT4630 | IDLE GEAR SPRING |
| BNT4631 | IDLE GEAR PIN |
| BNT4632 | IDLE GEAR |
| BNT4638 | CLUTCH PAWL |
| BNT4639 | CLUTCH PLATE |
| Part Number | Part Description |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0623 | DIAL CASE SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT2117 | HANDLE NUT |
| BNT2120 | CLICK PLATE RETAINER |
| BNT2122 | CLICK PIN |
| BNT2123 | CLICK SPRING |
| BNT2127 | STAR DRAG SPACER |
| BNT2144 | DRIVE SHAFT WASHER |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2253 | DRIVE SHAFT COVER SCREW |
| BNT2429 TGT0438 | "O" RING |
| BNT2717 | E LOCK |
| BNT3174 | REEL SEAT SPACER |
| BNT3627 | BALL BEARING MADE IN JAPAN |
| BNT3744 | SCREW |
| BNT3846 | KEY WASHER |
| BNT3918 | WASHER |
| BNT3927 | BALL BEARING MADE IN JAPAN |
| BNT4009 | IDLE GEAR |
| BNT4033 | WASHER |
| BNT4034 | ANTI-THRUST WASHER |
| BNT4036 | LINE GUIDE PAWL |
| BNT4116 | SCREW |
| BNT4187 | BALL BEARING MADE IN THILAND |
| BNT4194 | BALL BEARING MADE IN THAILAND |
| BNT4259 | LEVEL WIND GUARD |
| BNT4316 | SCREW |
| BNT4389 | YOKE SPRING |
| BNT4390 | YOKE |
| BNT4392 | CLUTCH CAM |
| BNT4431 | WASHER |
| BNT4502 | CLUTCH PAWL SPRING |
| BNT4538 | CLUTCH CAM RETAINER |
| BNT4564 | SCREW |
| BNT4588 | WASHER |
| BNT4611 | SCREW |
| BNT4612 | HANDLE RETAINER |
| BNT4622 | DRIVE SHAFT HOLDER BUSHING |
| BNT4623 | ROLLER CLUTCH BEARING MADE IN |
| BNT4630 | IDLE GEAR SPRING |
| BNT4631 | IDLE GEAR PIN |
| BNT4632 | IDLE GEAR |
| BNT4638 | CLUTCH PAWL |
| BNT4639 | CLUTCH PLATE |
