BAITRUNNER OC - BTR4000OC
BAITRUNNER OC

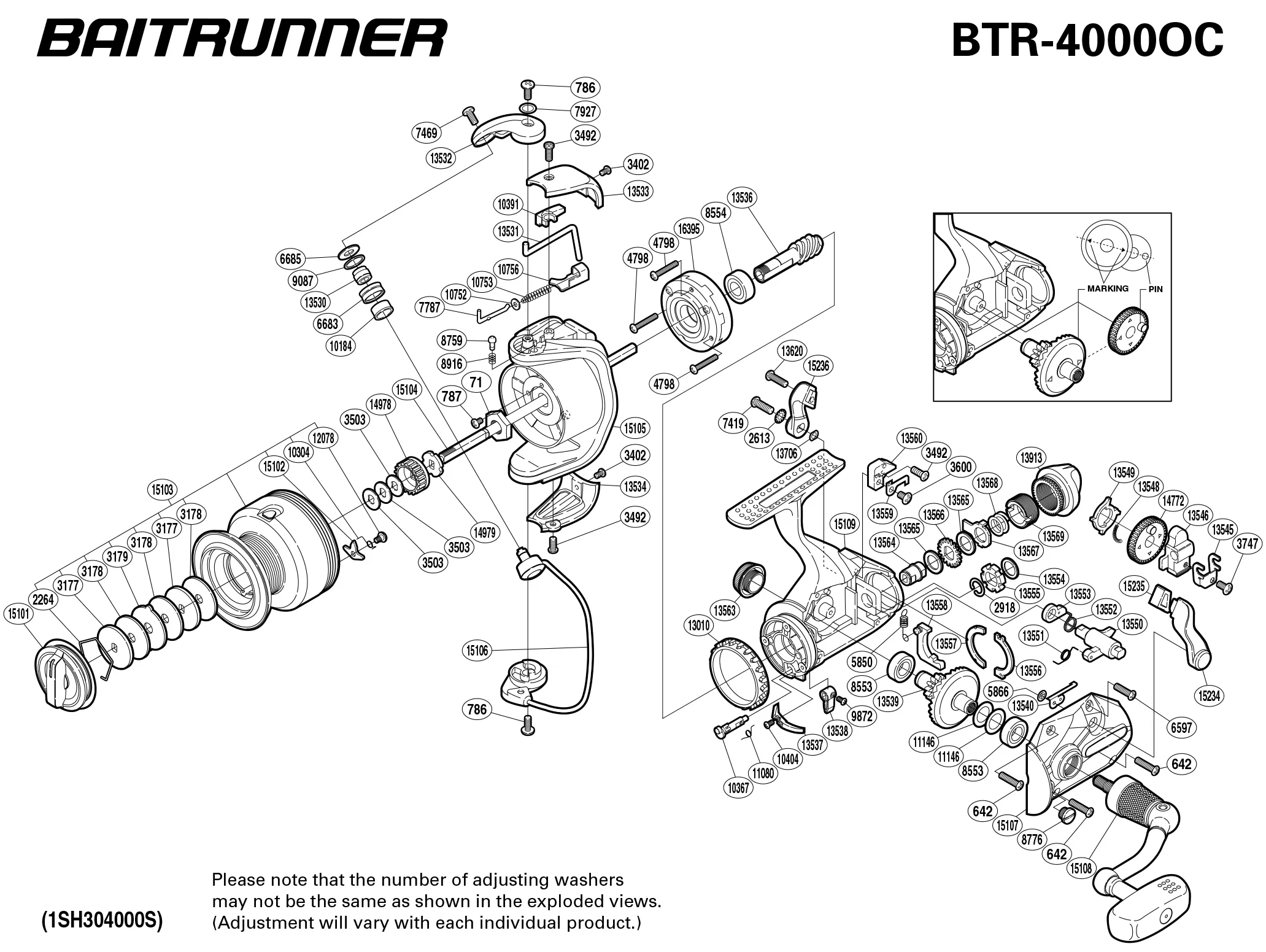

BAITRUNNER OC - BTR4000OC: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 2264 | DRAG WASHERS RETAINER |
| RD 2613 | LOCK WASHER (B) |
| RD 2918 TT 0179 | """C"" LOCK" |
| RD 3177 | KEY WASHER |
| RD 3178 | DRAG WASHER |
| RD 3179 | EARED WASHER |
| RD 3402 | COVER SCREW |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 3600 TT 0627 | NUT LOCK SCREW |
| RD 3747 | SLIDER RETAINER SCREW |
| RD 4798 | ROLLER CLUTCH SCREW |
| RD 5850 | BAITRUNNER PAWL SPRING |
| RD 5866 BNT1227 | PUSH NUT (SPN-2) |
| RD 6597 | SIDE COVER SCREW (LONG) |
| RD 6683 | LINE ROLLER |
| RD 6685 | LINE ROLLER WASHER |
| RD 7419 | LINE ROLLER SCREW |
| RD 7469 | LINE ROLLER SCREW |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7927 | ADJUSTING WASHER |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
| RD 8759 | CLICK PIN |
| RD 8776 | OIL CAP |
| RD 8916 | CLICK SPRING |
| RD 9087 | LINE ROLLER SPACER |
| RD 9872 | SCREW |
| RD10184 | LINE ROLLER BUSHING |
| RD10304 | DRAG COIL SPRING |
| RD10367 | ANTI-REVERSE CAM |
| RD10391 | BAIL TRIP COVER |
| RD10404 | SCREW |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD10753 | BAIL SPRING |
| RD10756 | BAIL SPRING SEAT |
| RD11080 | ANTI-REVERSE CAM SPRING |
| RD11146 | WASHER |
| RD12078 | SCREW |
| RD13010 | FRICTION RING |
| RD13530 | LINE ROLLER COLLAR |
| RD13531 | BAIL TRIP LEVER |
| RD13532 | BAIL ARM |
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 2264 | DRAG WASHERS RETAINER |
| RD 2613 | LOCK WASHER (B) |
| RD 2918 TT 0179 | """C"" LOCK" |
| RD 3177 | KEY WASHER |
| RD 3178 | DRAG WASHER |
| RD 3179 | EARED WASHER |
| RD 3402 | COVER SCREW |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 3600 TT 0627 | NUT LOCK SCREW |
| RD 3747 | SLIDER RETAINER SCREW |
| RD 4798 | ROLLER CLUTCH SCREW |
| RD 5850 | BAITRUNNER PAWL SPRING |
| RD 5866 BNT1227 | PUSH NUT (SPN-2) |
| RD 6597 | SIDE COVER SCREW (LONG) |
| RD 6683 | LINE ROLLER |
| RD 6685 | LINE ROLLER WASHER |
| RD 7419 | LINE ROLLER SCREW |
| RD 7469 | LINE ROLLER SCREW |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7927 | ADJUSTING WASHER |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
| RD 8759 | CLICK PIN |
| RD 8776 | OIL CAP |
| RD 8916 | CLICK SPRING |
| RD 9087 | LINE ROLLER SPACER |
| RD 9872 | SCREW |
| RD10184 | LINE ROLLER BUSHING |
| RD10304 | DRAG COIL SPRING |
| RD10367 | ANTI-REVERSE CAM |
| RD10391 | BAIL TRIP COVER |
| RD10404 | SCREW |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD10753 | BAIL SPRING |
| RD10756 | BAIL SPRING SEAT |
| RD11080 | ANTI-REVERSE CAM SPRING |
| RD11146 | WASHER |
| RD12078 | SCREW |
| RD13010 | FRICTION RING |
| RD13530 | LINE ROLLER COLLAR |
| RD13531 | BAIL TRIP LEVER |
| RD13532 | BAIL ARM |
