BAITRUNNER OC - BTR6000OC
BAITRUNNER OC

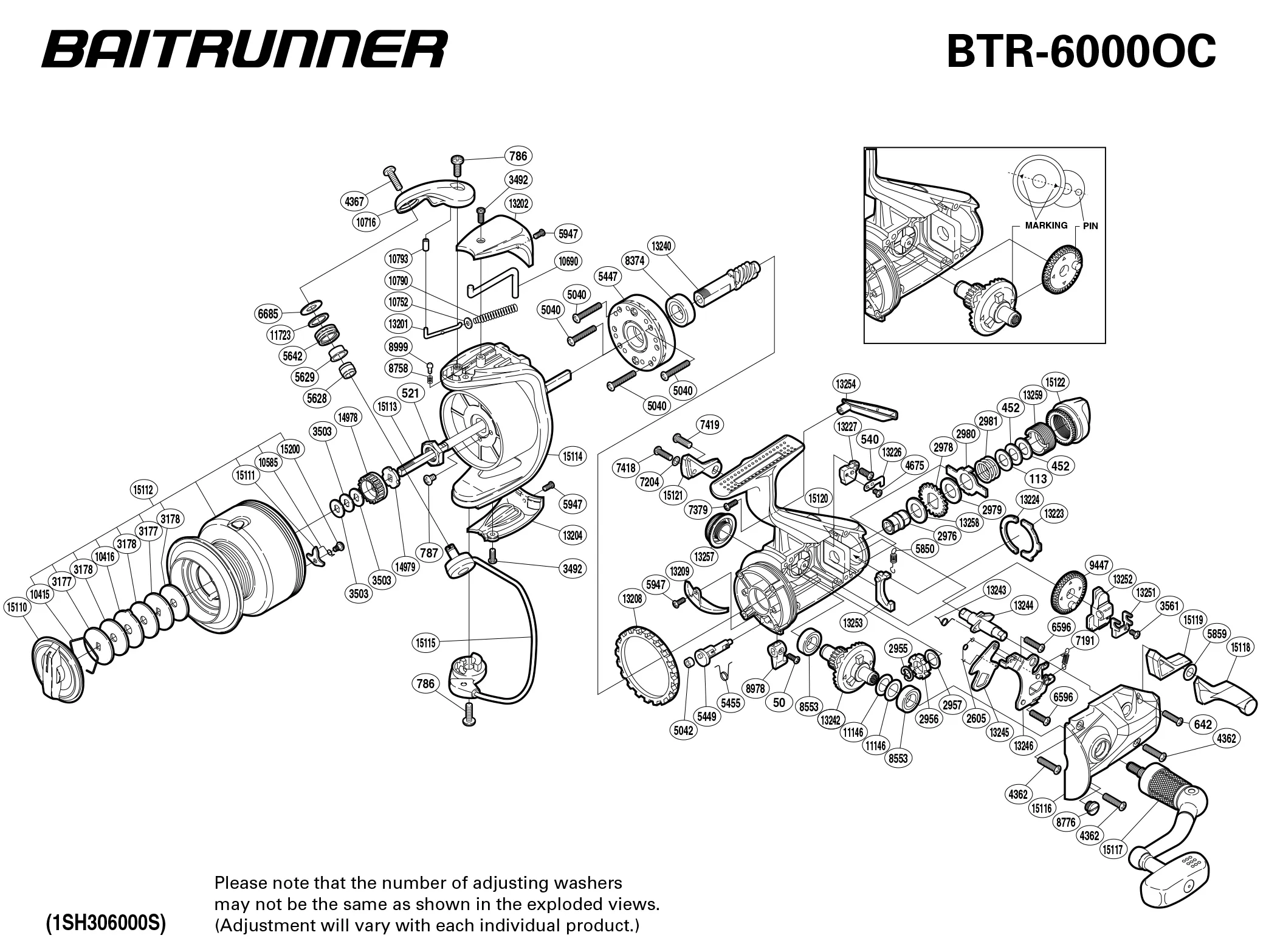

BAITRUNNER OC - BTR6000OC: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0050 BNT0191 | SCREW |
| RD 0113 | DRAG SPRING WASHER B |
| RD 0452 | DRAG SPRING WASHER A |
| RD 0521 | ROTOR NUT |
| RD 0540 | ANTI-REVERSE PAWL SCREW |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 2605 | CLUTCH PAWL SPRING |
| RD 2955 | "C" LOCK |
| RD 2956 | BAITRUNNER RATCHET |
| RD 2957 | RATCHET SPACER |
| RD 2976 | FREE SPOOL TENSION SHAFT |
| RD 2978 | CLICK GEAR |
| RD 2979 | FREE SPOOL TENSION WASHER (B) |
| RD 2980 | EARED WASHER "BFS" |
| RD 2981 | FREE SPOOL TENSION SPRING |
| RD 3177 | KEY WASHER |
| RD 3178 | DRAG WASHER |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 3561 TT 0632 | ANTI-REVERSE CAM SCREW |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4367 | LINE ROLLER SCREW |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 5040 | ROLLER CLUTCH SCREW |
| RD 5042 | ANTI-REVERSE CAM RING |
| RD 5447 | ROLLER CLUTCH ASSEMBLY |
| RD 5449 | ANTI-REVERSE CAM |
| RD 5455 | ANTI-REVERSE CAM SPRING |
| RD 5628 | LINE ROLLER COLLAR |
| RD 5629 | LINE ROLLER BUSHING |
| RD 5642 | LINE ROLLER |
| RD 5850 | BAITRUNNER PAWL SPRING |
| RD 5859 | BAITRUNNER LEVER SPACER |
| RD 5947 | DIAL CLICK SCREW |
| RD 6596 | SIDE COVER SCREW (SHORT) |
| RD 6685 | LINE ROLLER WASHER |
| RD 7191 | BAITRUNNER CLICK SPRING |
| RD 7204 | LOCK WASHER(A) |
| RD 7418 | BAITRUNNER LEVER SCREW |
| RD 7419 | LINE ROLLER SCREW |
| RD 8374 | BALL BEARING (3.41G)MADE IN CH |
| RD 8553 | BALL BEARING |
| RD 8758 | CLICK SPRING |
| RD 8776 | OIL CAP |
| RD 8978 | ANTI-REVERSE LEVER |
| RD 8999 | CLICK PIN |
| RD 9379 | SCREW |
| Part Number | Part Description |
| RD 0050 BNT0191 | SCREW |
| RD 0113 | DRAG SPRING WASHER B |
| RD 0452 | DRAG SPRING WASHER A |
| RD 0521 | ROTOR NUT |
| RD 0540 | ANTI-REVERSE PAWL SCREW |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 2605 | CLUTCH PAWL SPRING |
| RD 2955 | "C" LOCK |
| RD 2956 | BAITRUNNER RATCHET |
| RD 2957 | RATCHET SPACER |
| RD 2976 | FREE SPOOL TENSION SHAFT |
| RD 2978 | CLICK GEAR |
| RD 2979 | FREE SPOOL TENSION WASHER (B) |
| RD 2980 | EARED WASHER "BFS" |
| RD 2981 | FREE SPOOL TENSION SPRING |
| RD 3177 | KEY WASHER |
| RD 3178 | DRAG WASHER |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 3561 TT 0632 | ANTI-REVERSE CAM SCREW |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4367 | LINE ROLLER SCREW |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 5040 | ROLLER CLUTCH SCREW |
| RD 5042 | ANTI-REVERSE CAM RING |
| RD 5447 | ROLLER CLUTCH ASSEMBLY |
| RD 5449 | ANTI-REVERSE CAM |
| RD 5455 | ANTI-REVERSE CAM SPRING |
| RD 5628 | LINE ROLLER COLLAR |
| RD 5629 | LINE ROLLER BUSHING |
| RD 5642 | LINE ROLLER |
| RD 5850 | BAITRUNNER PAWL SPRING |
| RD 5859 | BAITRUNNER LEVER SPACER |
| RD 5947 | DIAL CLICK SCREW |
| RD 6596 | SIDE COVER SCREW (SHORT) |
| RD 6685 | LINE ROLLER WASHER |
| RD 7191 | BAITRUNNER CLICK SPRING |
| RD 7204 | LOCK WASHER(A) |
| RD 7418 | BAITRUNNER LEVER SCREW |
| RD 7419 | LINE ROLLER SCREW |
| RD 8374 | BALL BEARING (3.41G)MADE IN CH |
| RD 8553 | BALL BEARING |
| RD 8758 | CLICK SPRING |
| RD 8776 | OIL CAP |
| RD 8978 | ANTI-REVERSE LEVER |
| RD 8999 | CLICK PIN |
| RD 9379 | SCREW |
