SARAGOSA SW - SRG10000SW
SARAGOSA SW

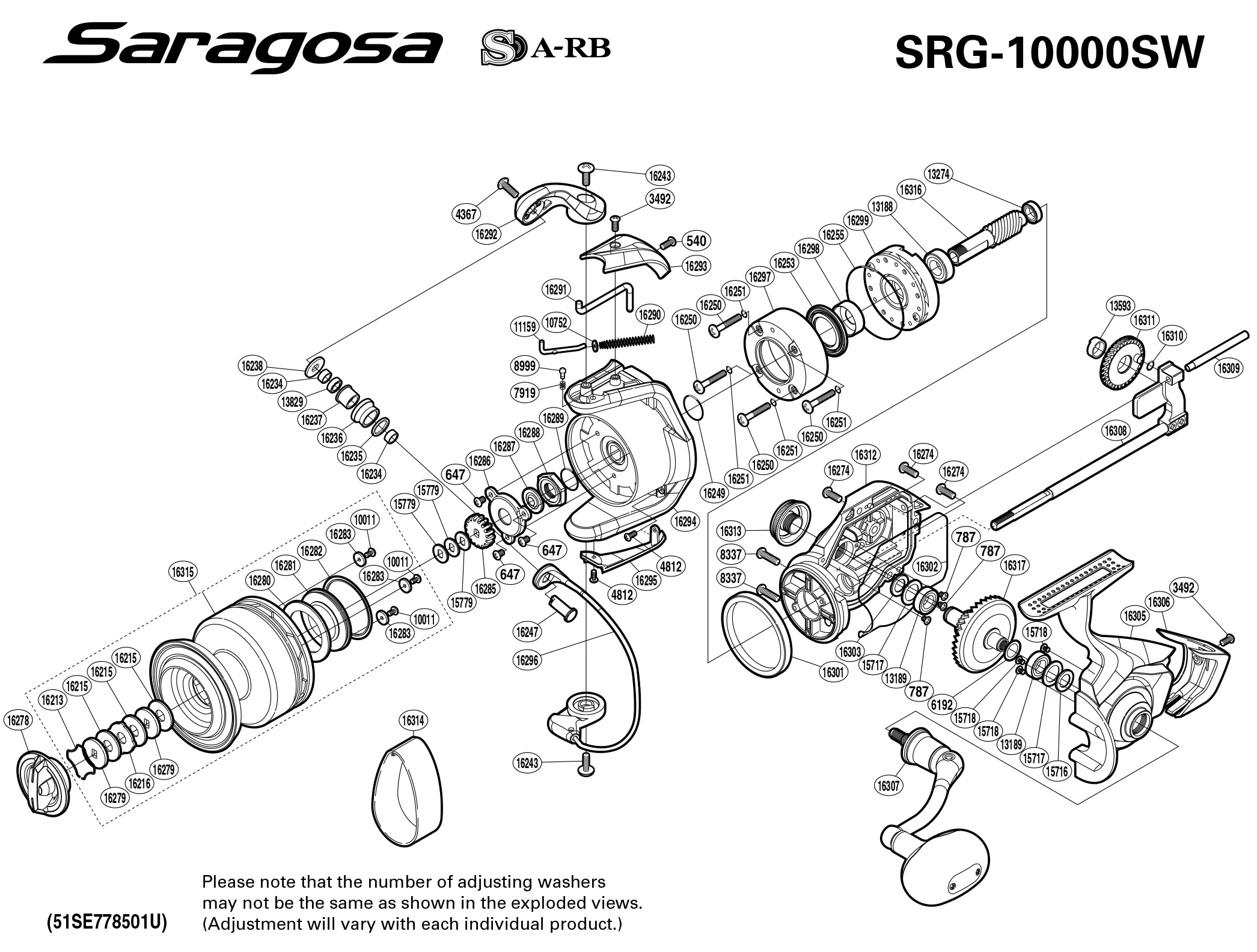

SARAGOSA SW - SRG10000SW: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0540 | ANTI-REVERSE PAWL SCREW |
| RD 0647 | NUT LOCK SCREW |
| RD 0787 | |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 4367 | LINE ROLLER SCREW |
| RD 4812 | REAR COVER SCREW (SMALL) |
| RD 6192 | DRIVE GEAR WASHER |
| RD 7919 | CLICK SPRING |
| RD 8337 | SIDE COVER SCREW (B) |
| RD 8999 | CLICK PIN |
| RD10011 | SCREW |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD11159 | BAIL SPRING GUIDE A |
| RD13188 | BALL BEARING MADE IN Thailand |
| RD13189 | BALL BEARING MADE IN Thailand |
| RD13274 | BALL BEARING |
| RD13593 | OSCILLATING GEAR BUSHING |
| RD13829 | BALL BEARING |
| RD15716 | BEARING WATER PROOF |
| RD15717 | WASHER |
| RD15718 | SCREW |
| RD15779 | SPOOL WASHER |
| RD16213 | DRAG WASHERS RETAINER |
| RD16215 | DRAG WASHER |
| RD16216 | EARED WASHER |
| RD16234 | LINE ROLLER COLLAR |
| RD16235 | LINE ROLLER SPACER |
| RD16236 | LINE ROLLER |
| RD16237 | LINE ROLLER BUSHING |
| RD16238 | LINE ROLLER WASHER |
| RD16243 | SCREW |
| RD16247 | LINE ROLLER SUPPORT |
| RD16249 | O RING |
| RD16250 | SCREW |
| RD16251 | O RING |
| RD16253 | ROLLER CLUTCH WATER PROOF |
| RD16255 | O RING |
| Part Number | Part Description |
| RD 0540 | ANTI-REVERSE PAWL SCREW |
| RD 0647 | NUT LOCK SCREW |
| RD 0787 | |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 4367 | LINE ROLLER SCREW |
| RD 4812 | REAR COVER SCREW (SMALL) |
| RD 6192 | DRIVE GEAR WASHER |
| RD 7919 | CLICK SPRING |
| RD 8337 | SIDE COVER SCREW (B) |
| RD 8999 | CLICK PIN |
| RD10011 | SCREW |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD11159 | BAIL SPRING GUIDE A |
| RD13188 | BALL BEARING MADE IN Thailand |
| RD13189 | BALL BEARING MADE IN Thailand |
| RD13274 | BALL BEARING |
| RD13593 | OSCILLATING GEAR BUSHING |
| RD13829 | BALL BEARING |
| RD15716 | BEARING WATER PROOF |
| RD15717 | WASHER |
| RD15718 | SCREW |
| RD15779 | SPOOL WASHER |
| RD16213 | DRAG WASHERS RETAINER |
| RD16215 | DRAG WASHER |
| RD16216 | EARED WASHER |
| RD16234 | LINE ROLLER COLLAR |
| RD16235 | LINE ROLLER SPACER |
| RD16236 | LINE ROLLER |
| RD16237 | LINE ROLLER BUSHING |
| RD16238 | LINE ROLLER WASHER |
| RD16243 | SCREW |
| RD16247 | LINE ROLLER SUPPORT |
| RD16249 | O RING |
| RD16250 | SCREW |
| RD16251 | O RING |
| RD16253 | ROLLER CLUTCH WATER PROOF |
| RD16255 | O RING |
