SARAGOSA SW - SRG5000SW
SARAGOSA SW

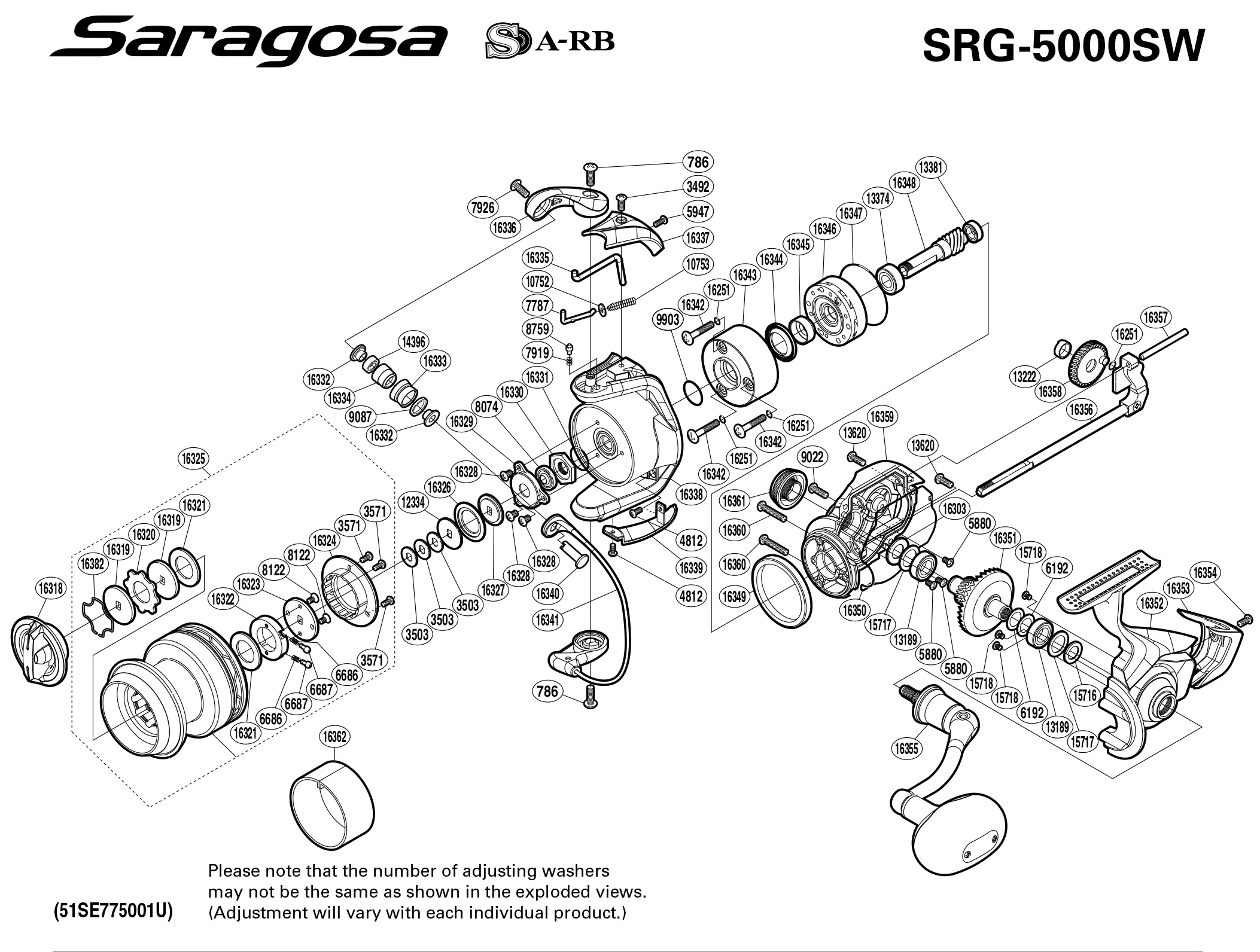

SARAGOSA SW - SRG5000SW: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0786 | BAIL ARM SCREW |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 3571 TGT0312 | TRIP CAM SCREW |
| RD 4812 | REAR COVER SCREW (SMALL) |
| RD 5880 BNT0609 | BEARING RETAINER SCREW |
| RD 5947 | DIAL CLICK SCREW |
| RD 6192 | DRIVE GEAR WASHER |
| RD 6686 | CLICK SPRING |
| RD 6687 | BAIL ARM CLICK |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7919 | CLICK SPRING |
| RD 7926 | LINE ROLLER SCREW |
| RD 8074 | BEARING WATER PROOF |
| RD 8122 | DRAG CLICK HOLDER COVER SCREW |
| RD 8759 | CLICK PIN |
| RD 9022 | BODY SCREW (long) |
| RD 9087 | LINE ROLLER SPACER |
| RD 9903 | O RING |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD10753 | BAIL SPRING |
| RD12334 | SPOOL SUPPORT |
| RD13189 | BALL BEARING MADE IN Thailand |
| RD13222 | OSCILLATING GEAR BUSHING |
| RD13374 | BALL BEARING |
| RD13381 | BALL BEARING MADE IN Thailand |
| RD13620 | SCREW |
| RD14396 | BALL BEARING MADE IN Thailand |
| RD15716 | BEARING WATER PROOF |
| RD15717 | WASHER |
| RD15718 | SCREW |
| RD16251 | O RING |
| RD16303 | BEARING WATER PROOF |
| RD16318 | DRAG KNOB |
| RD16319 | KEY WASHER |
| RD16320 | EARED WASHER |
| RD16321 | DRAG WASHER |
| RD16322 | DRAG CLICK HOLDER |
| RD16323 | DRAG CLICK HOLDER COVER |
| Part Number | Part Description |
| RD 0786 | BAIL ARM SCREW |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 3571 TGT0312 | TRIP CAM SCREW |
| RD 4812 | REAR COVER SCREW (SMALL) |
| RD 5880 BNT0609 | BEARING RETAINER SCREW |
| RD 5947 | DIAL CLICK SCREW |
| RD 6192 | DRIVE GEAR WASHER |
| RD 6686 | CLICK SPRING |
| RD 6687 | BAIL ARM CLICK |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7919 | CLICK SPRING |
| RD 7926 | LINE ROLLER SCREW |
| RD 8074 | BEARING WATER PROOF |
| RD 8122 | DRAG CLICK HOLDER COVER SCREW |
| RD 8759 | CLICK PIN |
| RD 9022 | BODY SCREW (long) |
| RD 9087 | LINE ROLLER SPACER |
| RD 9903 | O RING |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD10753 | BAIL SPRING |
| RD12334 | SPOOL SUPPORT |
| RD13189 | BALL BEARING MADE IN Thailand |
| RD13222 | OSCILLATING GEAR BUSHING |
| RD13374 | BALL BEARING |
| RD13381 | BALL BEARING MADE IN Thailand |
| RD13620 | SCREW |
| RD14396 | BALL BEARING MADE IN Thailand |
| RD15716 | BEARING WATER PROOF |
| RD15717 | WASHER |
| RD15718 | SCREW |
| RD16251 | O RING |
| RD16303 | BEARING WATER PROOF |
| RD16318 | DRAG KNOB |
| RD16319 | KEY WASHER |
| RD16320 | EARED WASHER |
| RD16321 | DRAG WASHER |
| RD16322 | DRAG CLICK HOLDER |
| RD16323 | DRAG CLICK HOLDER COVER |
