SOCORRO - SOC10000F
SOCORRO

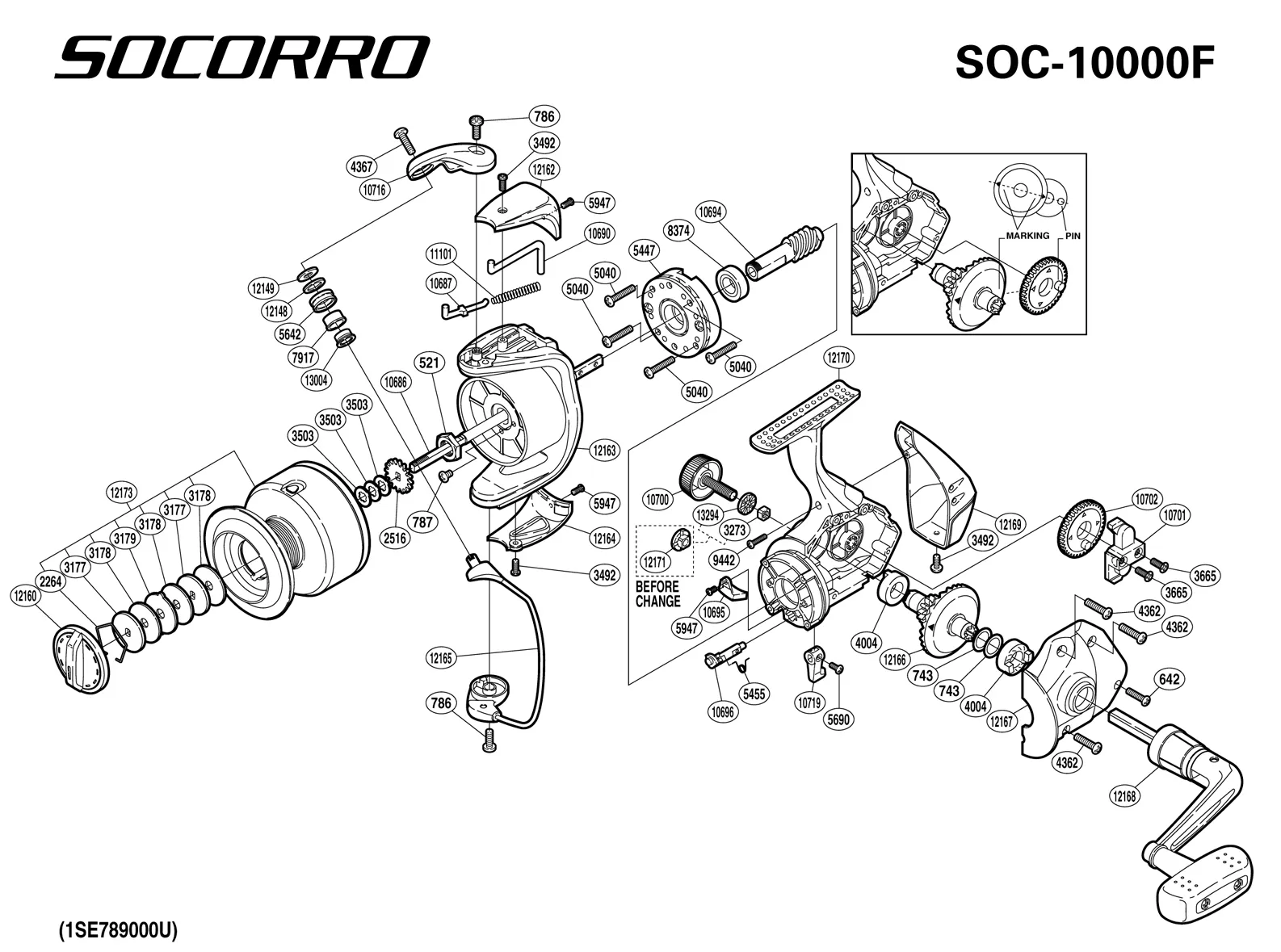

SOCORRO - SOC10000F: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0521 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0743 | DRIVE GEAR WASHER |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 2516 | SPOOL SUPPORT |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 3665 | SLIDER RETAINER SCREW |
| RD 4004 | DRIVE GEAR BUSHING |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4367 | LINE ROLLER SCREW |
| RD 5040 | ROLLER CLUTCH SCREW |
| RD 5447 | ROLLER CLUTCH ASSEMBLY |
| RD 5455 | ANTI-REVERSE CAM SPRING |
| RD 5642 | LINE ROLLER |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 5947 | DIAL CLICK SCREW |
| RD 7917 | LINE ROLLER BUSHING |
| RD 8374 | BALL BEARING (3.41G)MADE IN CH |
| RD 9112 | |
| RD 9442 | SCREW |
| RD10686 | MAIN SHAFT |
| RD10687 | BAIL SPRING GUIDE A |
| Part Number | Part Description |
| RD 0521 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0743 | DRIVE GEAR WASHER |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 2516 | SPOOL SUPPORT |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 3665 | SLIDER RETAINER SCREW |
| RD 4004 | DRIVE GEAR BUSHING |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4367 | LINE ROLLER SCREW |
| RD 5040 | ROLLER CLUTCH SCREW |
| RD 5447 | ROLLER CLUTCH ASSEMBLY |
| RD 5455 | ANTI-REVERSE CAM SPRING |
| RD 5642 | LINE ROLLER |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 5947 | DIAL CLICK SCREW |
| RD 7917 | LINE ROLLER BUSHING |
| RD 8374 | BALL BEARING (3.41G)MADE IN CH |
| RD 9112 | |
| RD 9442 | SCREW |
| RD10686 | MAIN SHAFT |
| RD10687 | BAIL SPRING GUIDE A |
