Spheros - SP10000FB
Spheros

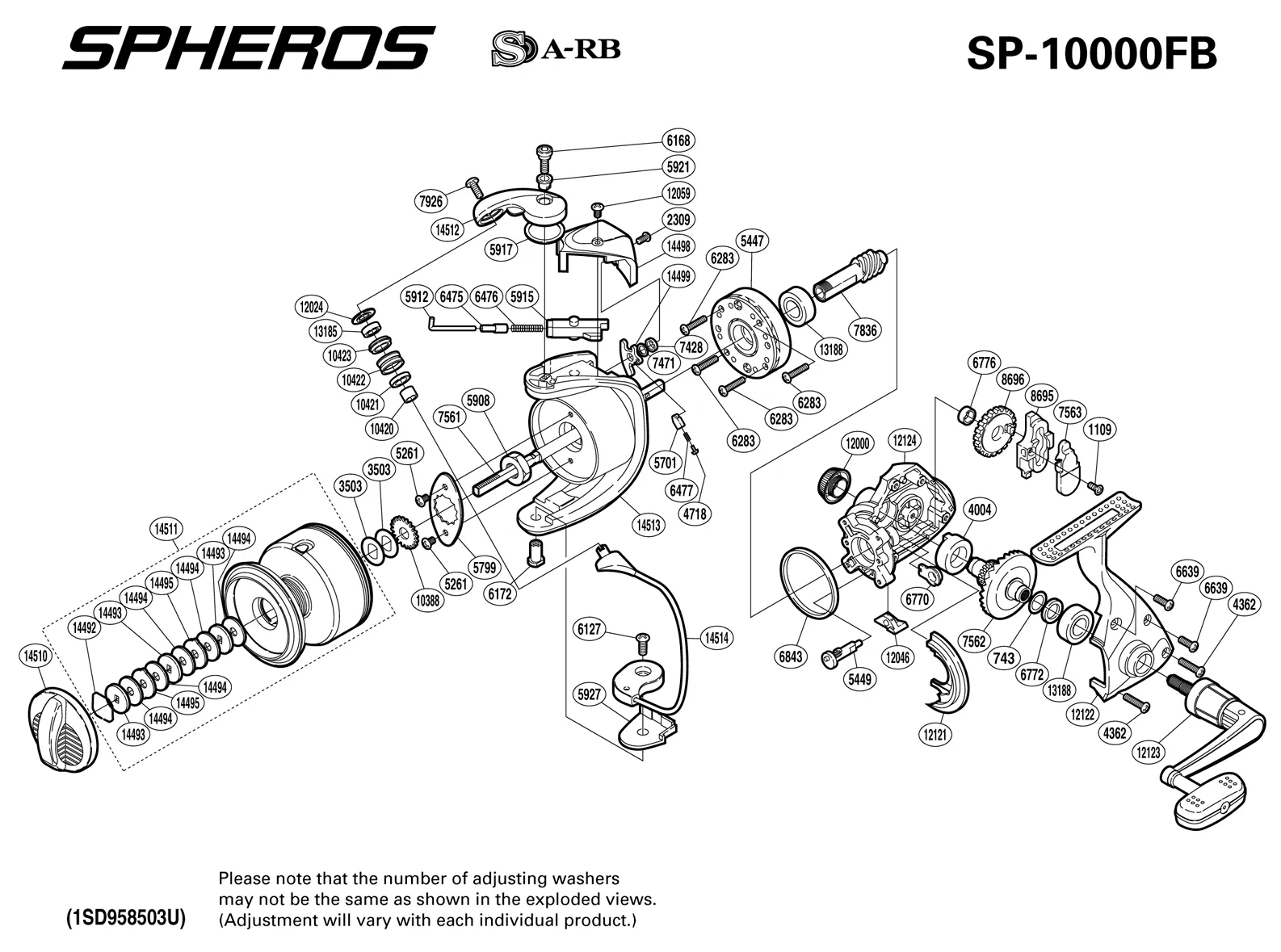

Spheros - SP10000FB: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0743 | DRIVE GEAR WASHER |
| RD 1109 | SLIDER RETAINER SCREW |
| RD 2309 | SLIDER RETAINER SCREW |
| RD 3503 | SPOOL WASHER |
| RD 4004 | DRIVE GEAR BUSHING |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4718 | LEVER SPRING GUIDE (A) |
| RD 5261 | SLIDER RETAINER SCREW |
| RD 5447 | ROLLER CLUTCH ASSEMBLY |
| RD 5449 | ANTI-REVERSE CAM |
| RD 5701 | |
| RD 5799 | ROTOR NUT RETAINER |
| RD 5908 | ROTOR NUT |
| RD 5912 | BAIL SPRING GUIDE (A) |
| RD 5915 | BAIL SPRING GUIDE (B) |
| RD 5917 | BAIL ARM WASHER |
| RD 5921 | BAIL ARM SCREW COLLAR |
| RD 5927 | BAIL HOLD SUPPORT SPACER |
| RD 6127 | BAIL HOLD SUPPORT SCREW |
| RD 6168 | BAIL ARM SCREW |
| RD 6172 | BAIL HOLD SUPPORT SHAFT |
| RD 6283 | ROLLER CLUTCH SCREW |
| RD 6475 | SPRING GUIDE (A) SUPPORT |
| RD 6476 | |
| RD 6477 | BAILTPIP LEVER SPRING |
| RD 6639 | SIDE COVER SCREW (SHORT) |
| RD 6770 | BUSHING |
| RD 6772 | DRIVE GEAR SPACER |
| RD 6776 | OSCILLATING GEAR BUSHING |
| RD 6843 | FRICTION RING |
| RD 7428 | BAIL TRIP LEVER WASHER |
| RD 7471 |
| Part Number | Part Description |
| RD 0743 | DRIVE GEAR WASHER |
| RD 1109 | SLIDER RETAINER SCREW |
| RD 2309 | SLIDER RETAINER SCREW |
| RD 3503 | SPOOL WASHER |
| RD 4004 | DRIVE GEAR BUSHING |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4718 | LEVER SPRING GUIDE (A) |
| RD 5261 | SLIDER RETAINER SCREW |
| RD 5447 | ROLLER CLUTCH ASSEMBLY |
| RD 5449 | ANTI-REVERSE CAM |
| RD 5701 | |
| RD 5799 | ROTOR NUT RETAINER |
| RD 5908 | ROTOR NUT |
| RD 5912 | BAIL SPRING GUIDE (A) |
| RD 5915 | BAIL SPRING GUIDE (B) |
| RD 5917 | BAIL ARM WASHER |
| RD 5921 | BAIL ARM SCREW COLLAR |
| RD 5927 | BAIL HOLD SUPPORT SPACER |
| RD 6127 | BAIL HOLD SUPPORT SCREW |
| RD 6168 | BAIL ARM SCREW |
| RD 6172 | BAIL HOLD SUPPORT SHAFT |
| RD 6283 | ROLLER CLUTCH SCREW |
| RD 6475 | SPRING GUIDE (A) SUPPORT |
| RD 6476 | |
| RD 6477 | BAILTPIP LEVER SPRING |
| RD 6639 | SIDE COVER SCREW (SHORT) |
| RD 6770 | BUSHING |
| RD 6772 | DRIVE GEAR SPACER |
| RD 6776 | OSCILLATING GEAR BUSHING |
| RD 6843 | FRICTION RING |
| RD 7428 | BAIL TRIP LEVER WASHER |
| RD 7471 |
