Spheros - SP18000FB
Spheros

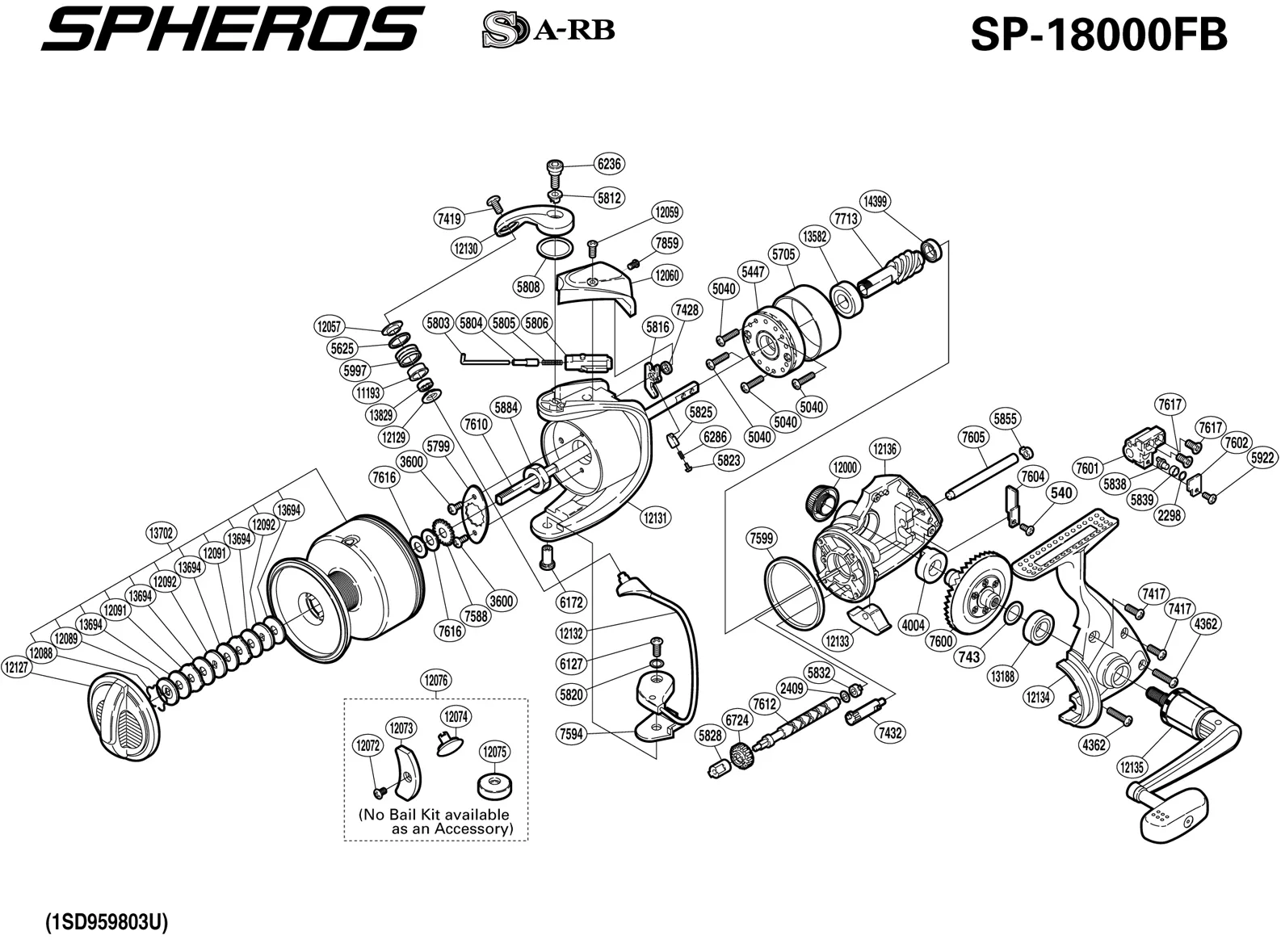

Spheros - SP18000FB: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0540 | ANTI-REVERSE PAWL SCREW |
| RD 0743 | DRIVE GEAR WASHER |
| RD 2298 | SPACER |
| RD 2409 | WORM SHAFT SPACER |
| RD 3600 TT 0627 | NUT LOCK SCREW |
| RD 4004 | DRIVE GEAR BUSHING |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 5040 | ROLLER CLUTCH SCREW |
| RD 5447 | ROLLER CLUTCH ASSEMBLY |
| RD 5625 | LINE ROLLER SPACER |
| RD 5705 | ROLLER CLUTCH RING |
| RD 5799 | ROTOR NUT RETAINER |
| RD 5803 | BAIL SPRING GUIDE (A) |
| RD 5804 | SPRING GUIDE (A) SUPPORT |
| RD 5805 | BAIL SPRING |
| RD 5806 | BAIL SPRING GUIDE (B) |
| RD 5808 | BAIL ARM WASHER |
| RD 5812 | BAIL ARM SCREW COLLAR |
| RD 5816 | BAIL TRIP LEVER |
| RD 5820 | SPACER |
| RD 5823 | LEVER SPRING GUIDE (A) |
| RD 5825 | LEVER SPRING GUIDE (B) |
| RD 5828 | WORM BUSHING (FRONT) |
| RD 5832 | WORM BUSHING (REAR) |
| RD 5838 | OSCILLATING PAWL |
| RD 5839 | OSCILLATING SLIDER BUSHING |
| RD 5855 | OSCILLATING GUIDE HOLDER |
| RD 5884 | ROTOR NUT |
| RD 5922 | GUARD SCREW (B) |
| RD 5997 | LINE ROLLER |
| RD 6127 | BAIL HOLD SUPPORT SCREW |
| RD 6172 | BAIL HOLD SUPPORT SHAFT |
| RD 6236 | BAIL ARM SCREW |
| RD 6286 | BAIL TRIP LEVER SPRING |
| RD 6724 | IDLE GEAR (B) |
| RD 7417 | SIDE COVER SCREW(SHORT) |
| RD 7419 | LINE ROLLER SCREW |
| RD 7428 | BAIL TRIP LEVER WASHER |
| Part Number | Part Description |
| RD 0540 | ANTI-REVERSE PAWL SCREW |
| RD 0743 | DRIVE GEAR WASHER |
| RD 2298 | SPACER |
| RD 2409 | WORM SHAFT SPACER |
| RD 3600 TT 0627 | NUT LOCK SCREW |
| RD 4004 | DRIVE GEAR BUSHING |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 5040 | ROLLER CLUTCH SCREW |
| RD 5447 | ROLLER CLUTCH ASSEMBLY |
| RD 5625 | LINE ROLLER SPACER |
| RD 5705 | ROLLER CLUTCH RING |
| RD 5799 | ROTOR NUT RETAINER |
| RD 5803 | BAIL SPRING GUIDE (A) |
| RD 5804 | SPRING GUIDE (A) SUPPORT |
| RD 5805 | BAIL SPRING |
| RD 5806 | BAIL SPRING GUIDE (B) |
| RD 5808 | BAIL ARM WASHER |
| RD 5812 | BAIL ARM SCREW COLLAR |
| RD 5816 | BAIL TRIP LEVER |
| RD 5820 | SPACER |
| RD 5823 | LEVER SPRING GUIDE (A) |
| RD 5825 | LEVER SPRING GUIDE (B) |
| RD 5828 | WORM BUSHING (FRONT) |
| RD 5832 | WORM BUSHING (REAR) |
| RD 5838 | OSCILLATING PAWL |
| RD 5839 | OSCILLATING SLIDER BUSHING |
| RD 5855 | OSCILLATING GUIDE HOLDER |
| RD 5884 | ROTOR NUT |
| RD 5922 | GUARD SCREW (B) |
| RD 5997 | LINE ROLLER |
| RD 6127 | BAIL HOLD SUPPORT SCREW |
| RD 6172 | BAIL HOLD SUPPORT SHAFT |
| RD 6236 | BAIL ARM SCREW |
| RD 6286 | BAIL TRIP LEVER SPRING |
| RD 6724 | IDLE GEAR (B) |
| RD 7417 | SIDE COVER SCREW(SHORT) |
| RD 7419 | LINE ROLLER SCREW |
| RD 7428 | BAIL TRIP LEVER WASHER |
