Spheros - SP3000FB
Spheros

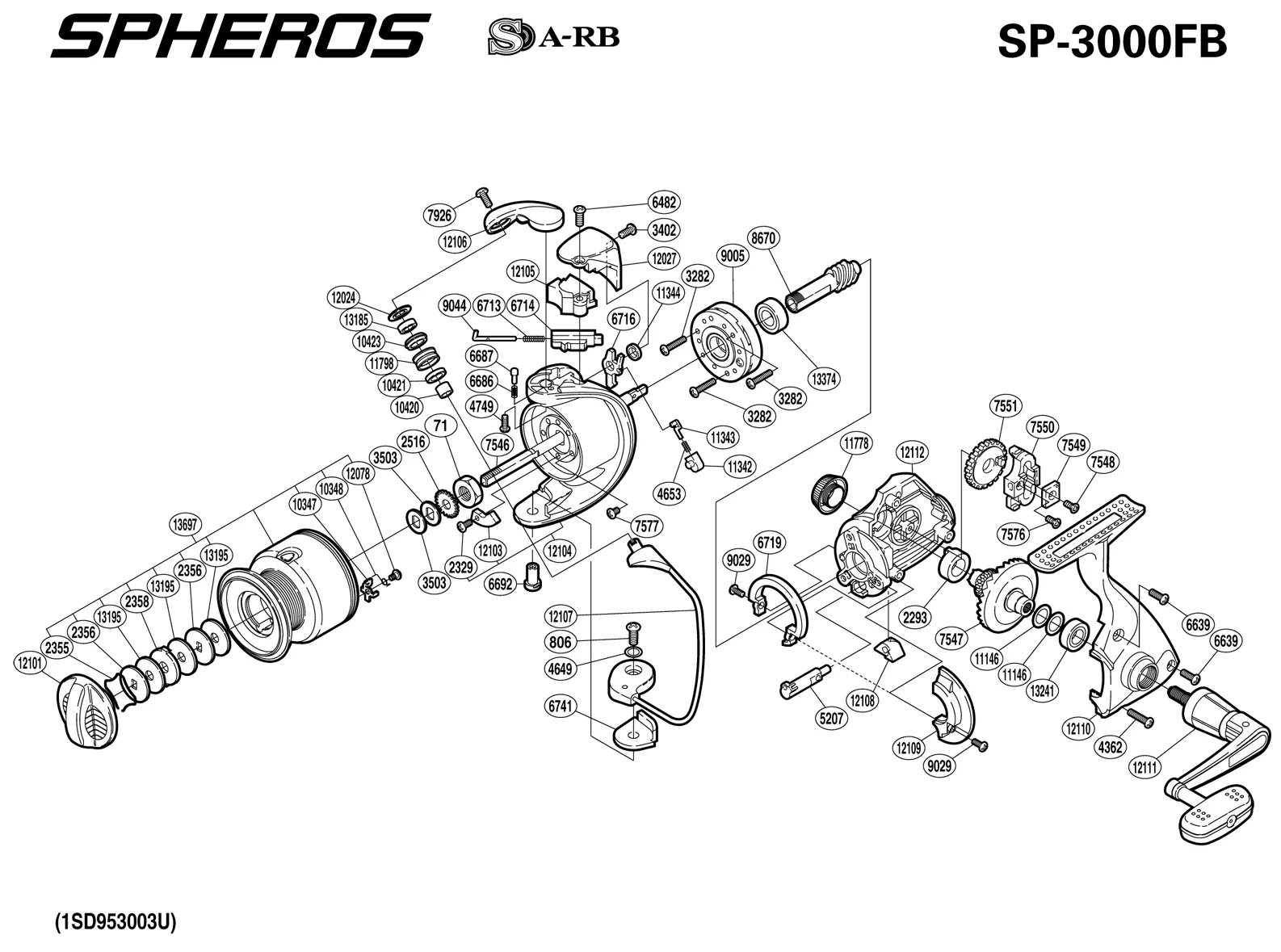

Spheros - SP3000FB: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0806 | LINE ROLLER SCREW |
| RD 2293 | DRIVE GEAR BUSHING |
| RD 2329 | BEARING RETAINER SCREW |
| RD 2516 | SPOOL SUPPORT |
| RD 3282 | ANTI-REVERSE PAWL SCREW |
| RD 3402 | COVER SCREW |
| RD 3503 | SPOOL WASHER |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4416 TGT0585 | BAIL ARM SCREW |
| RD 4649 | SPACER |
| RD 4653 | LEVER SPRING |
| RD 4749 | BAIL ARM SCREW |
| RD 5207 | ANTI-REVERSE CAM |
| RD 6639 | SIDE COVER SCREW (SHORT) |
| RD 6686 | CLICK SPRING |
| RD 6687 | BAIL ARM CLICK |
| RD 6692 | BAIL HOLD SUPPORT SHAFT |
| RD 6713 | BAIL SPRING |
| RD 6714 | BAIL SPRING GUIDE (B) |
| RD 6716 | BAIL TRIP LEVER |
| RD 6719 | FRICTION RING |
| RD 6741 | BAIL HOLD SUPPORT SPACER |
| RD 7546 | MAIN SHAFT |
| RD 7547 | DRIVE GEAR |
| RD 7548 | OSCILLATING SLIDER RETAINER SC |
| RD 7549 | OSCILLATING SLIDER INNER |
| RD 7550 | OSCILLATING SLIDER |
| RD 7551 | OSCILLATING GEAR |
| RD 7576 | SLIDER RETAINER SCREW |
| RD 7577 | NUT LOCK SCREW |
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0806 | LINE ROLLER SCREW |
| RD 2293 | DRIVE GEAR BUSHING |
| RD 2329 | BEARING RETAINER SCREW |
| RD 2516 | SPOOL SUPPORT |
| RD 3282 | ANTI-REVERSE PAWL SCREW |
| RD 3402 | COVER SCREW |
| RD 3503 | SPOOL WASHER |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4416 TGT0585 | BAIL ARM SCREW |
| RD 4649 | SPACER |
| RD 4653 | LEVER SPRING |
| RD 4749 | BAIL ARM SCREW |
| RD 5207 | ANTI-REVERSE CAM |
| RD 6639 | SIDE COVER SCREW (SHORT) |
| RD 6686 | CLICK SPRING |
| RD 6687 | BAIL ARM CLICK |
| RD 6692 | BAIL HOLD SUPPORT SHAFT |
| RD 6713 | BAIL SPRING |
| RD 6714 | BAIL SPRING GUIDE (B) |
| RD 6716 | BAIL TRIP LEVER |
| RD 6719 | FRICTION RING |
| RD 6741 | BAIL HOLD SUPPORT SPACER |
| RD 7546 | MAIN SHAFT |
| RD 7547 | DRIVE GEAR |
| RD 7548 | OSCILLATING SLIDER RETAINER SC |
| RD 7549 | OSCILLATING SLIDER INNER |
| RD 7550 | OSCILLATING SLIDER |
| RD 7551 | OSCILLATING GEAR |
| RD 7576 | SLIDER RETAINER SCREW |
| RD 7577 | NUT LOCK SCREW |
